Connector H10-6

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

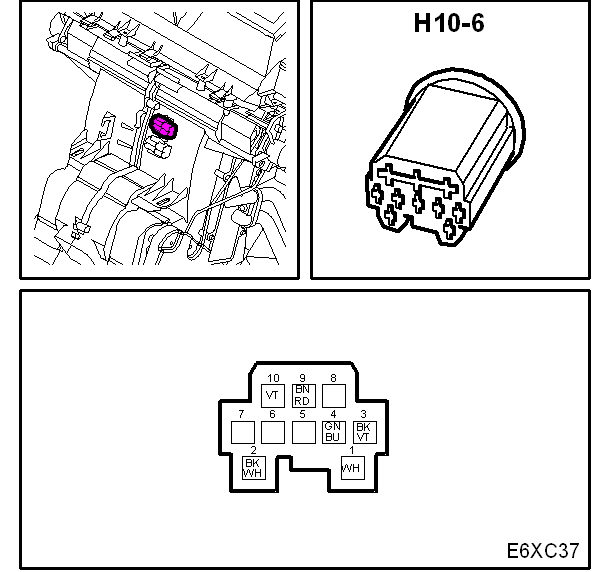

Fig 1: Identifying Connector H10-6
G05044885Courtesy of SAAB-SCANIA OF AMERICA, INC.
