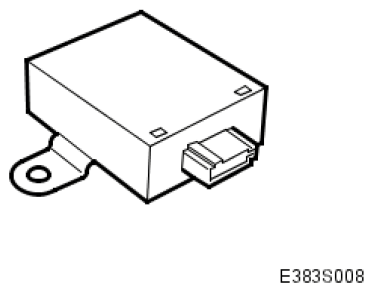

Tilt Sensor
WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TILT SENSOR SPECIFICATIONS
| Location |
Under right-hand front seat, screwed to floor |
| Type |
Fluid-filled |
| Power supply B+ |
Pin No. |
1 |
| Communication |
Pin No. |
3 |
| Ground |
Pin No. |
4 |
