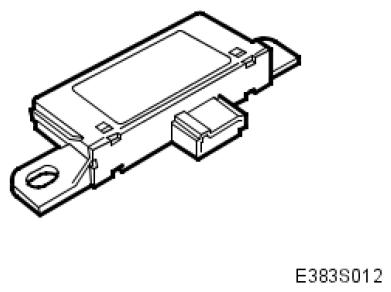

Receiver For Remote Control
WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. RECEIVER FOR REMOTE CONTROL SPECIFICATIONS
| Location |
Centre console, left rear section |
| Power supply B+ |
Pin No. |
3 |
| Frequency |
EU |
433.92 MHz |
| |
US/CS/AU/JP |
315 MHz |
| Signal |
Pin No. |
1 |
| Ground |
Pin No. |
2 |
