Microswitch In Luggage Compartment Lock, Disarming Boot Lid/Tailgate

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

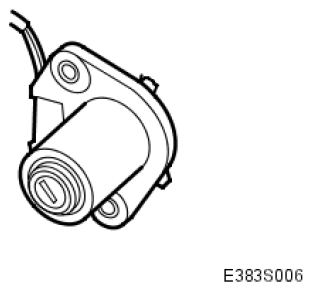

Fig 1: Identifying Microswitch In Luggage Compartment Lock

Courtesy of SAAB-SCANIA OF AMERICA, INC.

MICROSWITCH IN LUGGAGE COMPARTMENT LOCK SPECIFICATIONS

Location		By boot lid/tailgate lock cylinder
Type		Normally open
Power supply PWM approx. 3.5%	Pin No.	1
Ground	Pin No.	2
