Key Switch In Driver's Door
WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

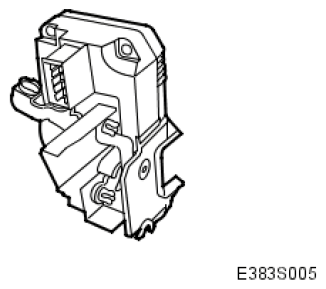

Courtesy of SAAB-SCANIA OF AMERICA, INC. KEY SWITCH IN DRIVER DOOR SPECIFICATIONS
| Location |
In lock unit |
| Type |
Normally open |
| Lock |
Pin No. |
7 (2 RHD) |
| Unlock |
Pin No. |
3 (8 RHD) |
| Ground |
Pin No. |
1 (6 RHD) |
