To remove

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

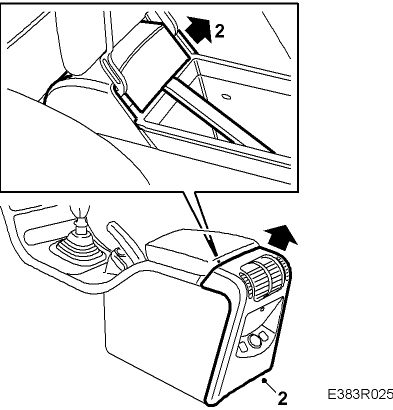

Fig 1: Illustration For Step 2
G05039154Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the floor console's armrest.
  2. Remove the rear portion of the floor console by carefully pulling on the front edge until its catch releases. Lift the rear portion of the floor console upward and fold it back.

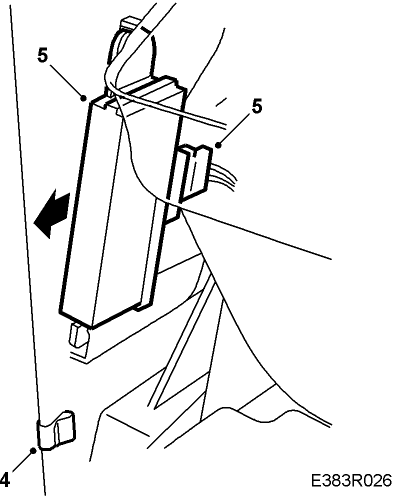

    Fig 2: Illustration For Step 4 And 5
    G05039155Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Detach the connector from the rear portion of the floor console.
  4. Remove the clip, if fitted, from the floor console's side wall.
  5. Disconnect the receiver unit from the floor console's side wall and detach the connector in the unit.
