To fit

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

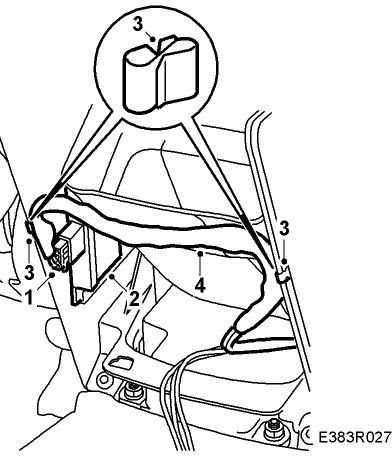

Fig 1: Illustration For Steps 1-4
G05039156Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Attach the connector to the receiver unit. Turn the unit so that the connector points to the back of the car.
  2. Fit the receiver unit in the cavity in the floor console's side wall.
  3. Fit a clip on the LH and RH side wall of the floor console. If there had been a clip mounted on the LH side wall, fit the new clip 35 mm above the previous location.
  4. Place the wiring harness of the receiver unit in the clips and adjust their placement so that the wiring harness is run just under the lower edge of the air duct opening.
    NOTE: If necessary, the tape around the wiring harness must be removed enough to move the wiring harness branching sufficiently to fix the wiring harness correctly. The wiring harness must also be adapted so that the rear portion of the floor console can be fitted without moving the harness from the clips. Affix new tape around the wiring harness.
  5. Attach the connector to the rear portion of the floor console.
    Fig 2: Illustration For Step 6 And 7
    G05039157Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the rear portion of the floor console by fitting the lower journals into the holes and carefully pressing down the front edge so that the catch fastens.
  7. Lower the floor console's armrest.
  8. Check the function of the remote control.
