Control Module Outputs For The Anti-Theft Alarm

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

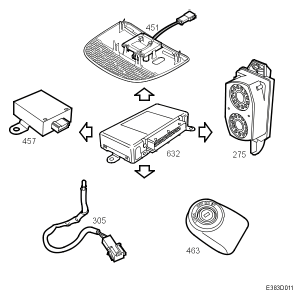

Fig 1: Control Module Outputs For Anti-Theft Alarm - Communication Diagram
G05039190Courtesy of SAAB-SCANIA OF AMERICA, INC.
