Grounding Point G40: Notes

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

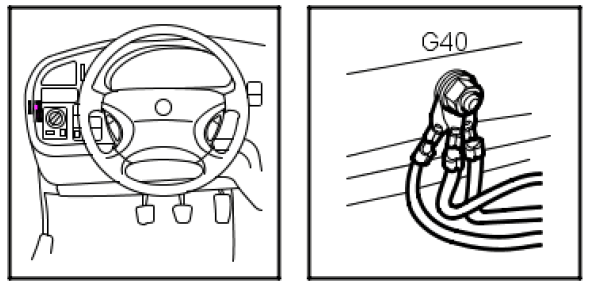

Fig 1: Identifying Grounding Point G40
G05039290Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: Grounding Point G40 - Circuit Diagram
G05039291Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In passenger compartment on left-hand side of knee member.
