Connector H18-1

WARNING: This page is about a different car, the 2008 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  in front roof lamp unit

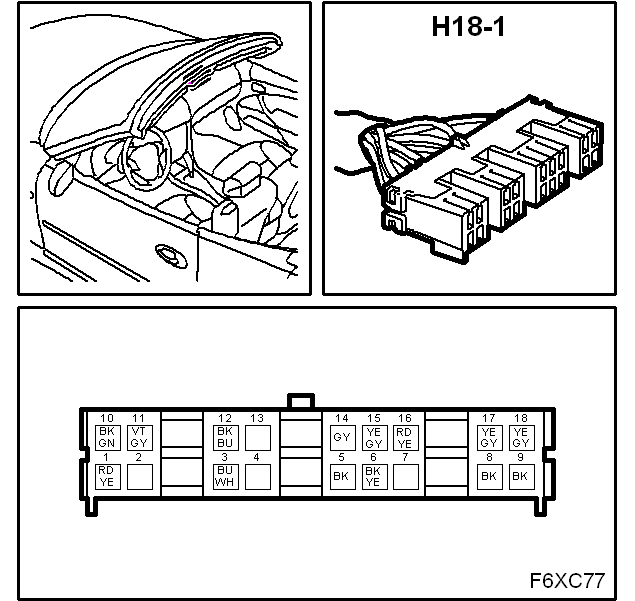

Fig 1: Identifying Connector H18-1
G05054519Courtesy of SAAB-SCANIA OF AMERICA, INC.
