Connector H16-1

WARNING: This page is about a different car, the 2008 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  In the end of the LH rear door

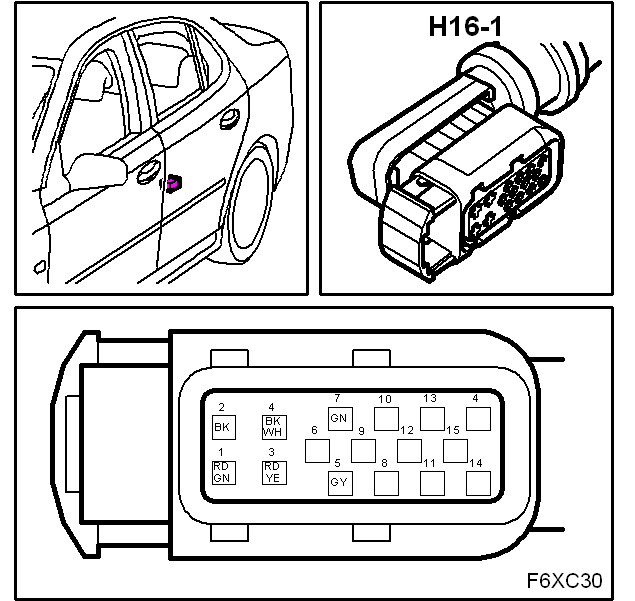

Fig 1: Identifying Connector H16-1
G05055990Courtesy of SAAB-SCANIA OF AMERICA, INC.
