Connector H10-6

WARNING: This page is about a different car, the 2008 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  black connector on the parcel shelf by the left C-pillar

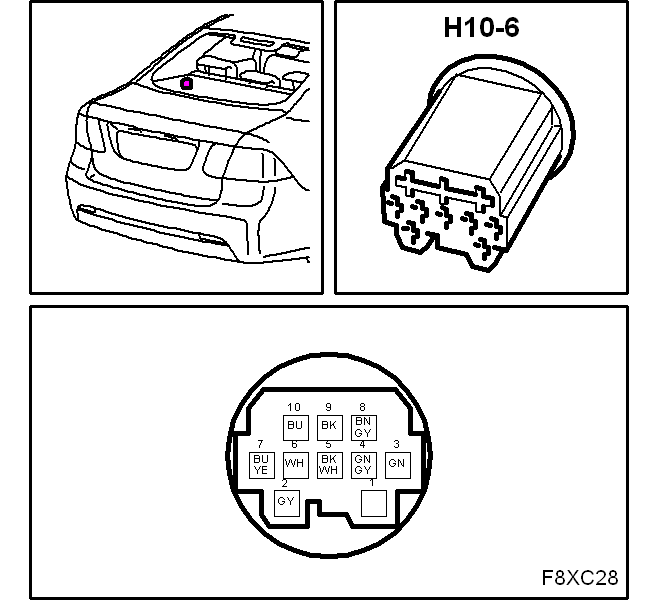

Fig 1: Identifying Connector H10-6
G05568214Courtesy of SAAB-SCANIA OF AMERICA, INC.
