Control module, door, front, left (702FL)

WARNING: This page is about a different car, the 2007 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  in the door

J1

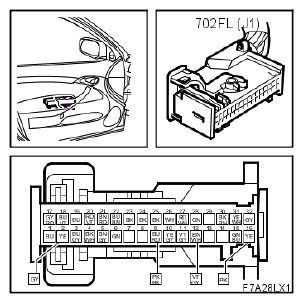

Fig 1: Identifying Control Module, Door, Front, Left (702FL) - J1
G05054497Courtesy of SAAB-SCANIA OF AMERICA, INC.

J2

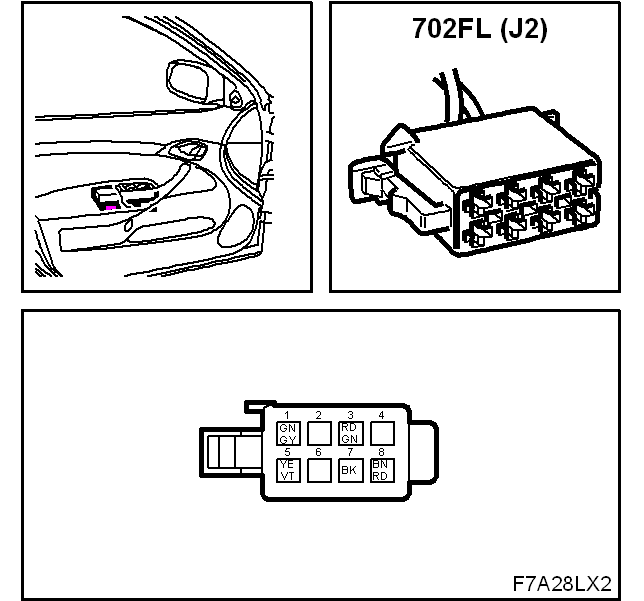

Fig 2: Identifying Control Module, Door, Front, Left (702FL) - J2
G05054498Courtesy of SAAB-SCANIA OF AMERICA, INC.
