Bulb, courtesy lighting: Replacing

  1. Remove the lamp housing using a short screwdriver.
    IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

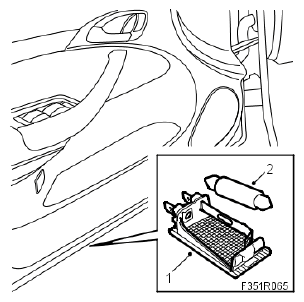

    Fig 1: Illustration For Step 1-2
    G05054397Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Replace the bulb.
  3. Fit the lamp housing. Start at the end with the lamp housing connection.

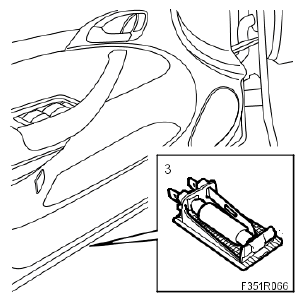

    Fig 2: Illustration For Step 3
    G05054398Courtesy of SAAB-SCANIA OF AMERICA, INC.
