Connected components 5D

CONNECTED COMPONENTS REFERENCE

270	Horn, anti-theft alarm
	Via Crimp J147, main wiring harness 5D
701	Rear electrical centre
	Via Crimp J322, boot lid 5D , which in turn is connected with crimp J147
62R	Rear window wiper motor
115	Heating element, rear window

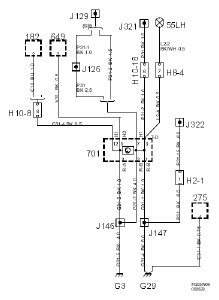

Fig 1: Grounding Point G29 (4D) - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Via the luggage compartment electrical centre 701, the grounding point is connected to:

Grounding point G3, 4D

Grounding point G3, 5D

Grounding point G3, CV
