Connector H8-3

Location:  in the door

SOP - Rev.1

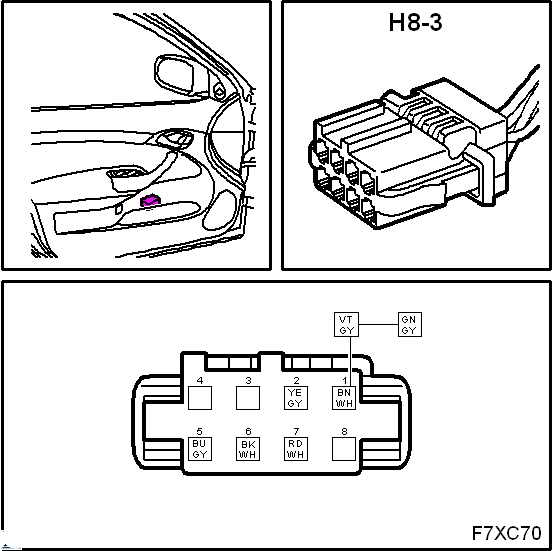

Fig 1: Identifying Connector H8-3

Courtesy of SAAB-SCANIA OF AMERICA, INC.

From and including Rev.1

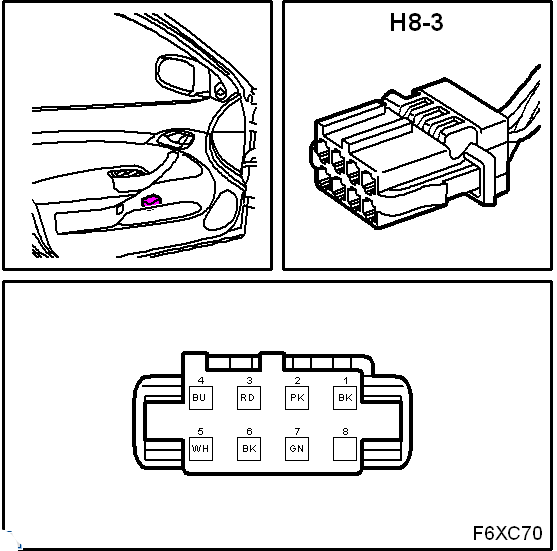

Fig 2: Identifying From And Including Rev.1

Courtesy of SAAB-SCANIA OF AMERICA, INC.
