Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Rear Of Vehicle

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Doors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

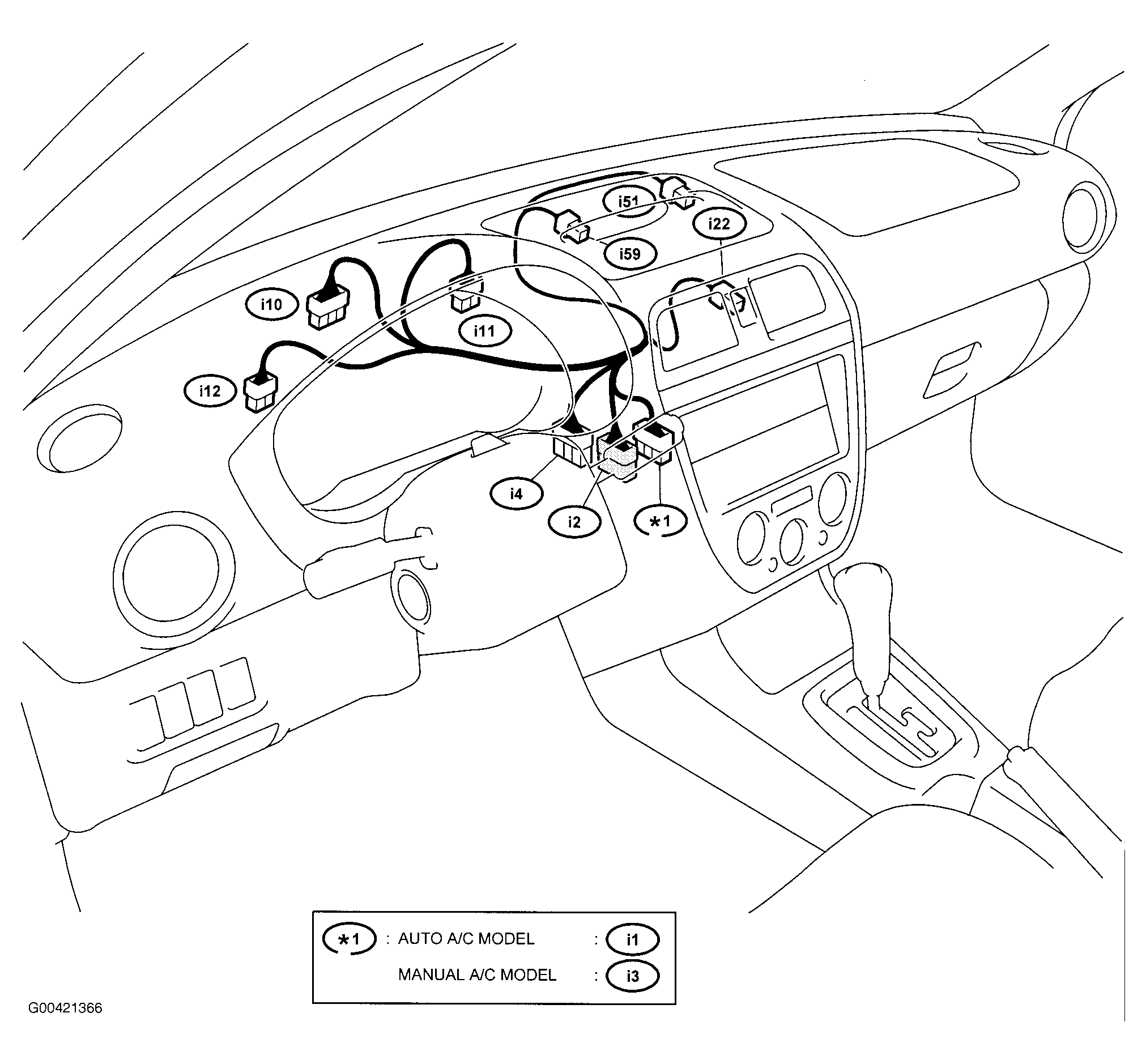

Fig 3: Dash

Courtesy of SAAB-SCANIA OF AMERICA, INC.

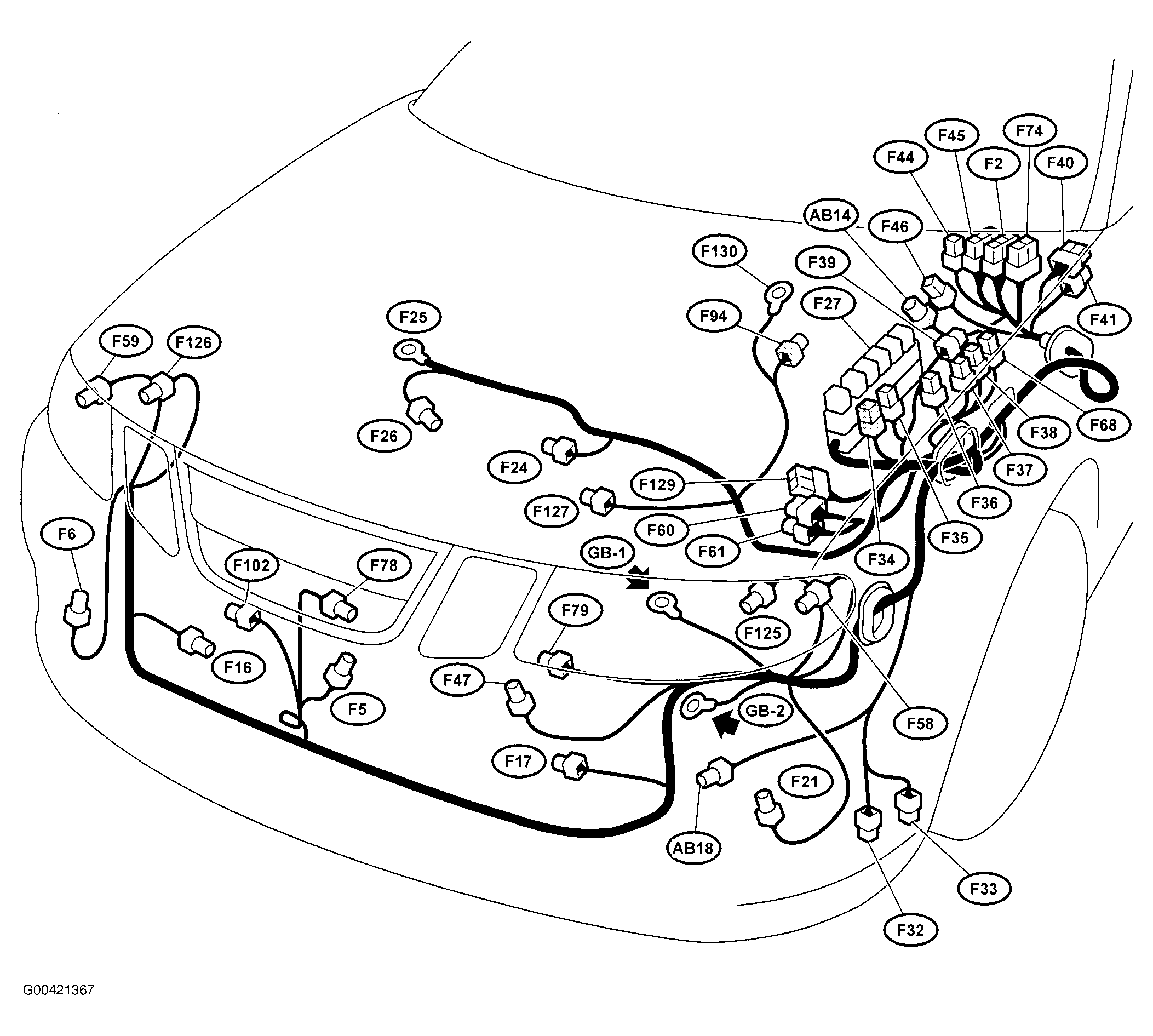

Fig 4: Right Side Of Engine Compartment (Aero)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 5: Right Side Of Engine Compartment (2.5i)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

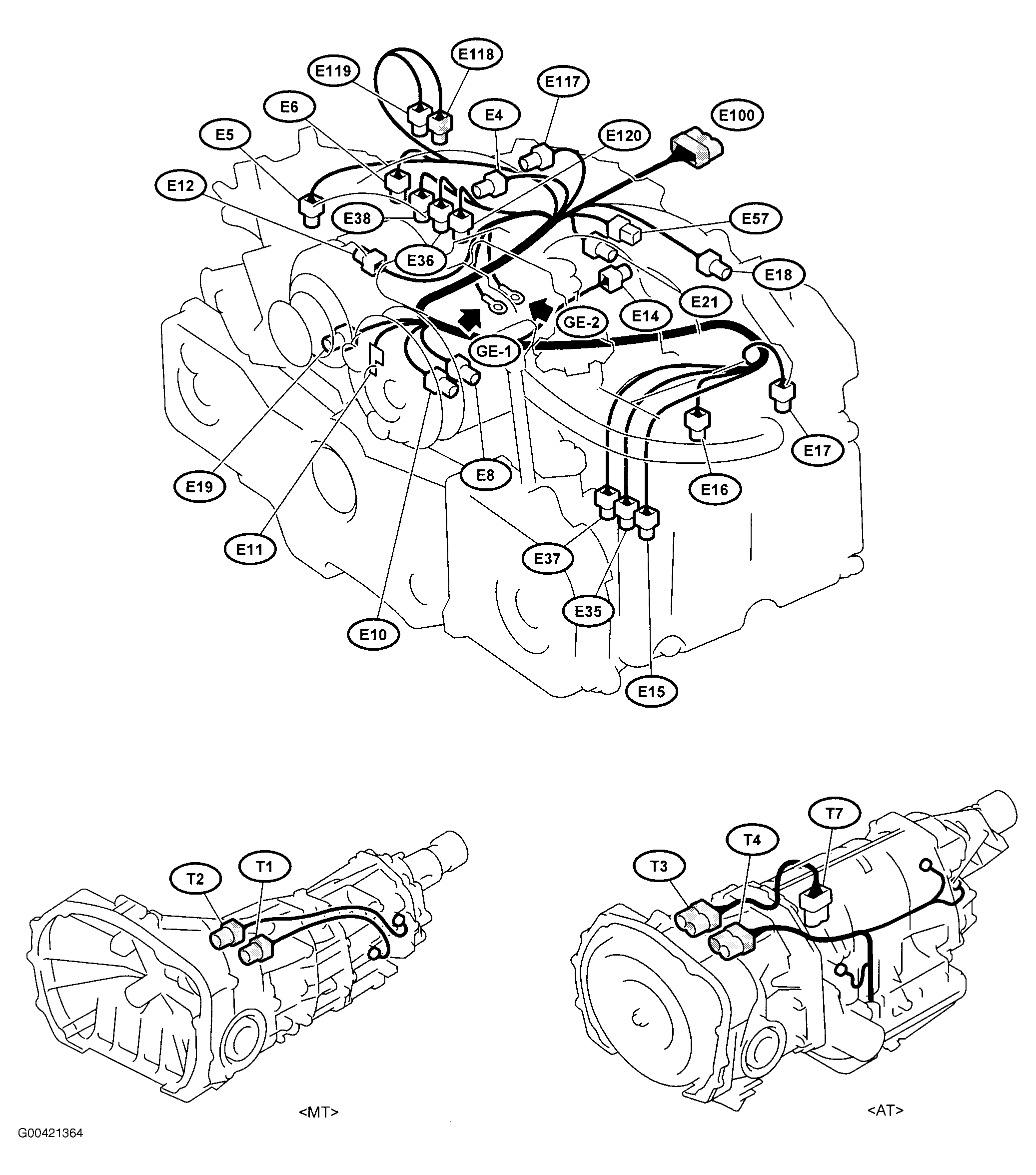

Fig 6: Engine & Transmission (2.5T)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

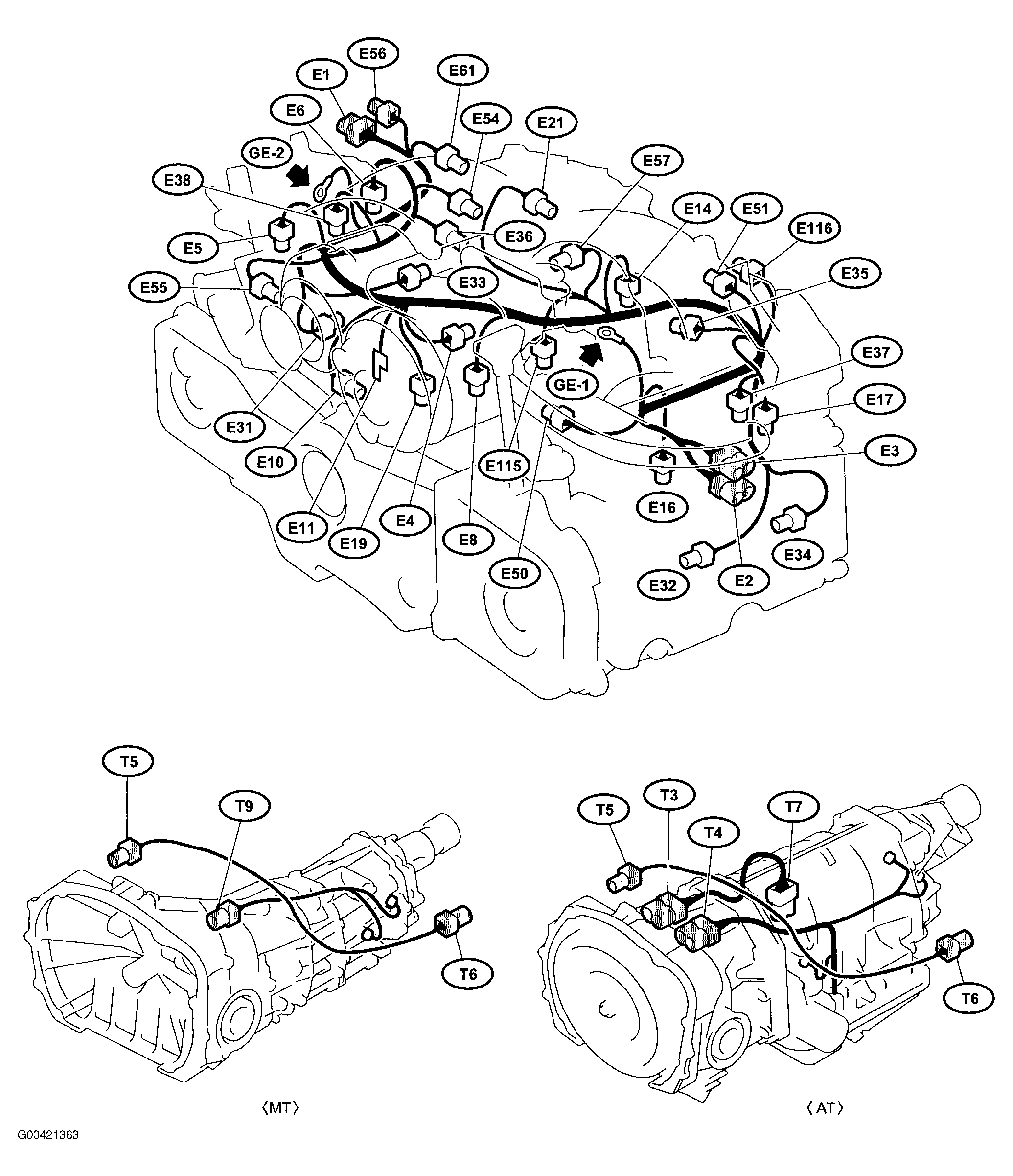

Fig 7: Engine & Transmission (2.5i)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 8: Passenger Compartment

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 9: Center Of Dash

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 10: Left Side Of Engine Compartment

Courtesy of SAAB-SCANIA OF AMERICA, INC.
