Installation Procedure

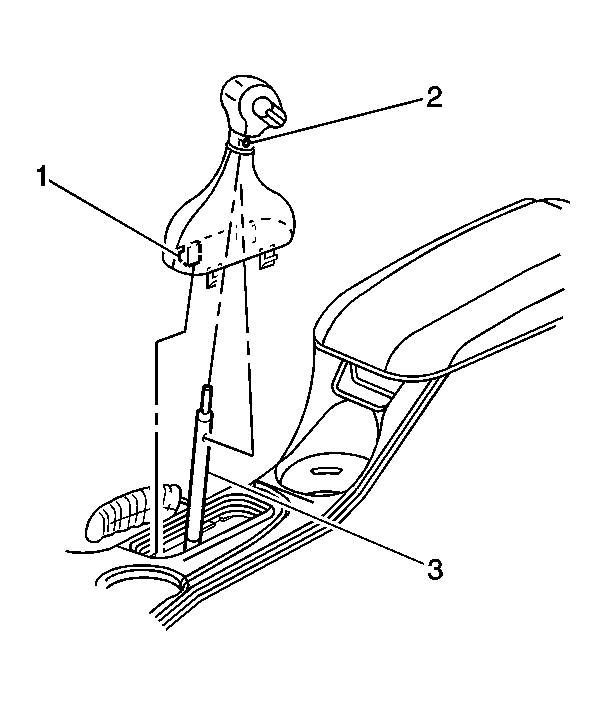

    Fig 1: Removing/Installing Floor Shift Control Knob
    GM1593081Courtesy of GENERAL MOTORS CORP.
  1. Install the knob and boot assembly onto the transmission control (3).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Engage the locking tabs (1) with the console assembly.

    Tighten:  Tighten the control knob set screw (2) to 2 N.m (18 lb in).
