Removal Procedure

  1. Remove the ignition switch lock cylinder. Refer to Ignition Switch Lock Cylinder Replacement .

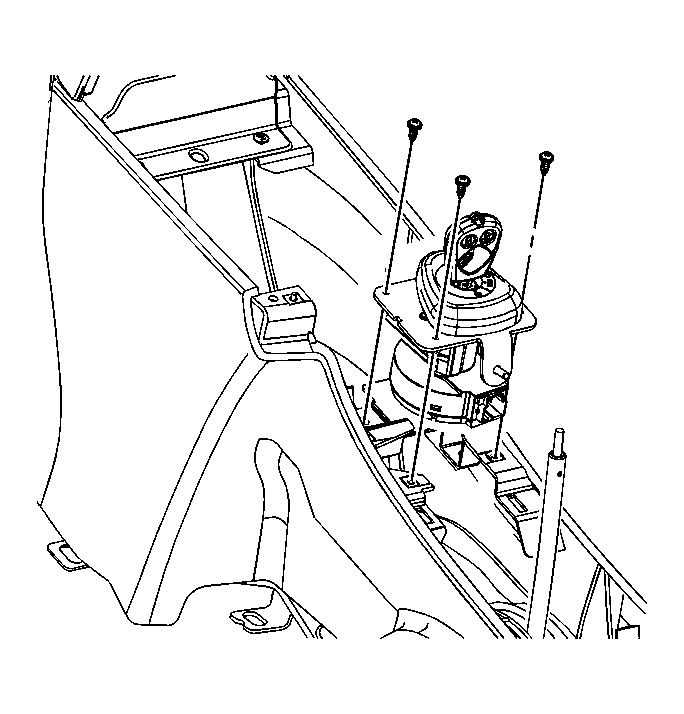

    2. Fig 1: Removing/Installing Ignition Switch
    GM1554774Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector.
  3. Remove the ignition switch.
