Installation Procedure

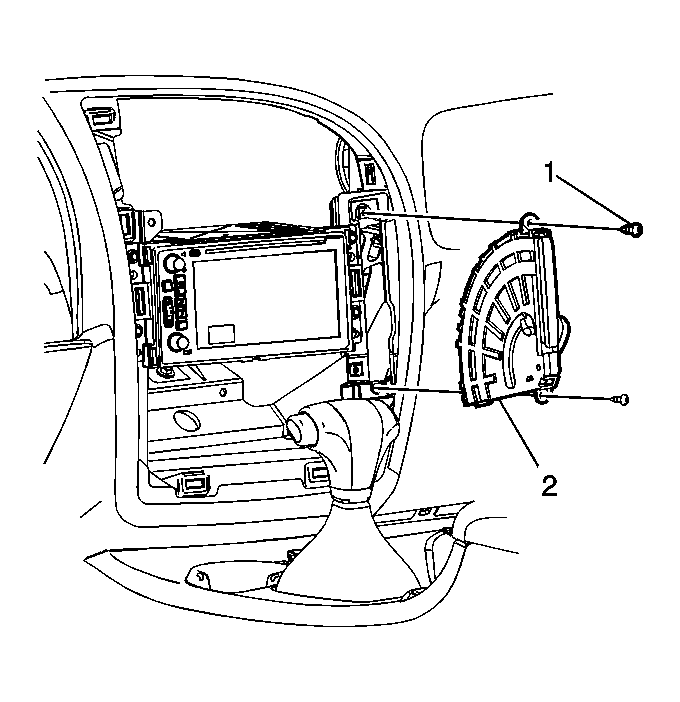

    Fig 1: Removing/Installing Instrument Panel Cupholder
    GM1554767Courtesy of GENERAL MOTORS CORP.
  1. Locate the cupholder to the I/P.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws securing the cupholder to the I/P.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  3. Install the I/P accessory trim panel. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory .
