Installation Procedure

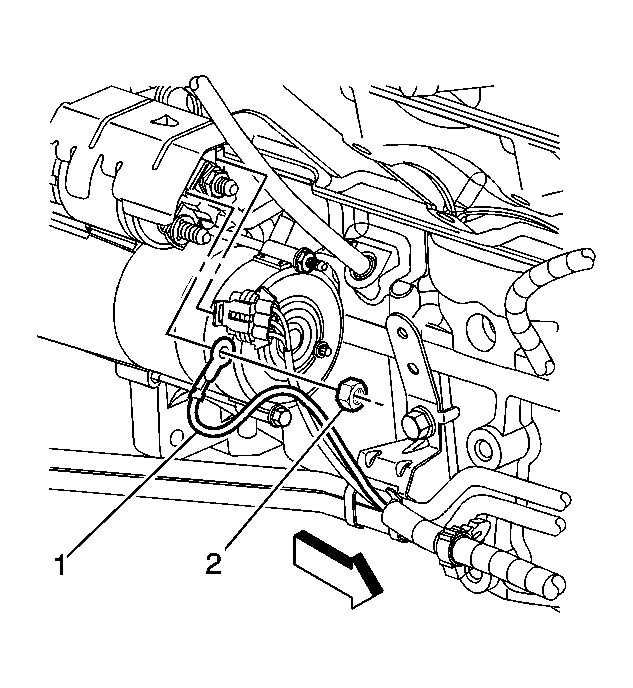

Fig 1: View Of Positive Cable Lead, Nut & Cable Clip

Courtesy of GENERAL MOTORS CORP.

Begin installing the starter between the transmission oil cooler lines and the engine oil pan.
Install the battery positive cable (1) to the starter stud.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the battery positive cable nut (2).
Tighten: Tighten the nut to 9 N.m (80 lb in).

Fig 2: View Of Starter Solenoid Lead & Nut

Courtesy of GENERAL MOTORS CORP.

Install the starter solenoid lead (1) to the solenoid stud.
Install the starter solenoid nut (2).
Tighten: Tighten the nut to 3.4 N.m (30 lb in).
Install the starter solenoid heat shield.

Fig 3: View Of Starter & Bolts

Courtesy of GENERAL MOTORS CORP.

Slide the starter toward the front of the vehicle.
Position the transmission cover to the transmission.
Position the starter to the engine
Install the starter bolts.
Tighten: Tighten the bolts to 50 N.m (37 lb ft).

Fig 4: View Of Transmission Cover Bolt

Courtesy of GENERAL MOTORS CORP.

Install the right transmission cover bolt.
Tighten: Tighten the bolt to 9 N.m (80 lb in).

Fig 5: View Of Transmission Oil Cooler Line Retaining Bracket & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the transmission oil cooler line bracket bolt.
Tighten: Tighten the bolt to 9 N.m (80 lb in).
Attach the wire harness to the wire harness retaining clips on the transmission oil cooler line bracket.

Fig 6: Removing Rear Steering Gear Crossmember

Courtesy of GENERAL MOTORS CORP.

Install the rear steering gear crossmember. Refer to Crossmember Replacement - Rear Steering Gear in Frame and Underbody.
Lower the vehicle.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
