Installation Procedure

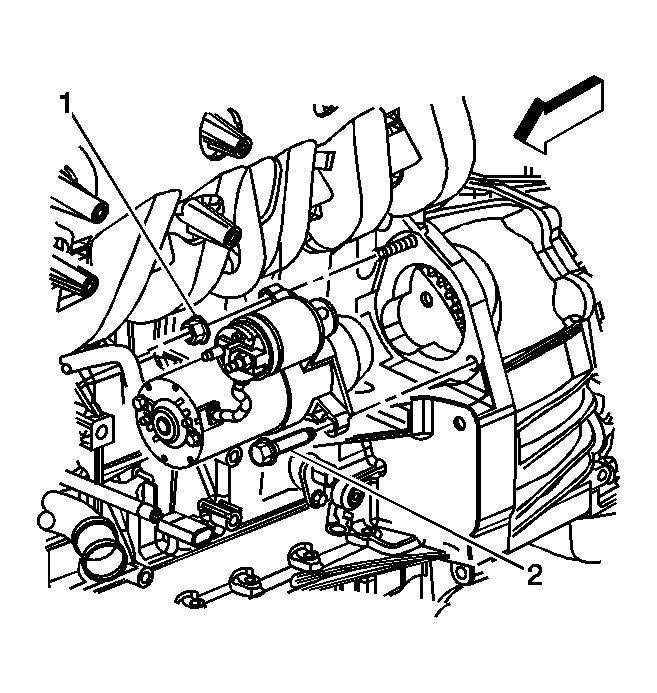

    Fig 1: View Of Starter Mount Bolt & Nut
    GM759316Courtesy of GENERAL MOTORS CORP.
  1. Install the starter motor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the starter motor mount bolt (2) and nut (1).

    Tighten:  Tighten the starter mount bolt and nut to 50 N.m (37 lb ft).

    3. Fig 2: View Of Starter & Related Components
    GM754358Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive battery cable to the starter solenoid and secure the cable with a nut (1).

    Tighten:  Tighten the positive cable nut to 9 N.m (80 lb in).

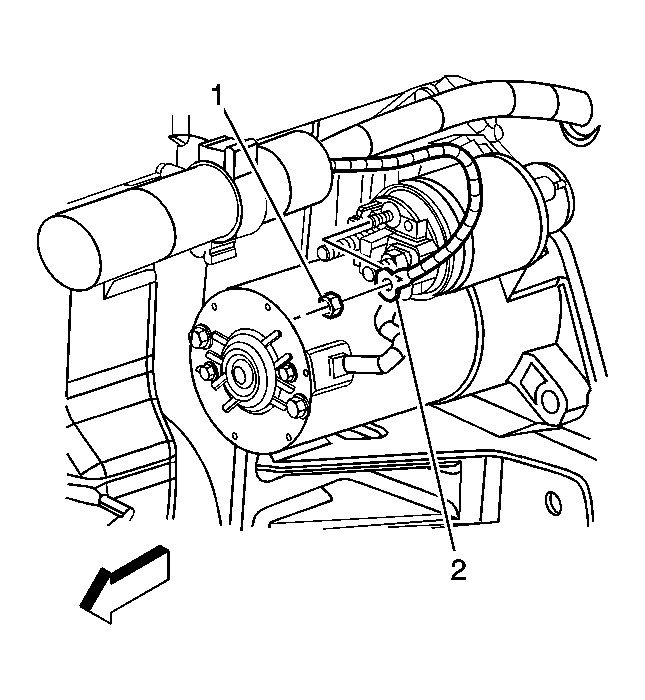

    4. Fig 3: View Of Starter Solenoid S-Terminal Lead & Nut
    GM1380362Courtesy of GENERAL MOTORS CORP.
  4. Install the starter solenoid S-terminal lead (2) to the solenoid and secure the lead with a nut (1).

    Tighten:  Tighten the S-terminal nut to 2.3 N.m (20 lb in).

  5. Install the vacuum brake booster hose. Refer to Vacuum Brake Booster Check Valve and/or Hose Replacement in Hydraulic Brakes.
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
