Installation Procedure

Fig 1: View Of Positive Cable Lead, Nut & Cable Clip

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the positive cable lead nut (2) to the starter.
Tighten: Tighten the nut to 9 N.m (80 lb in).

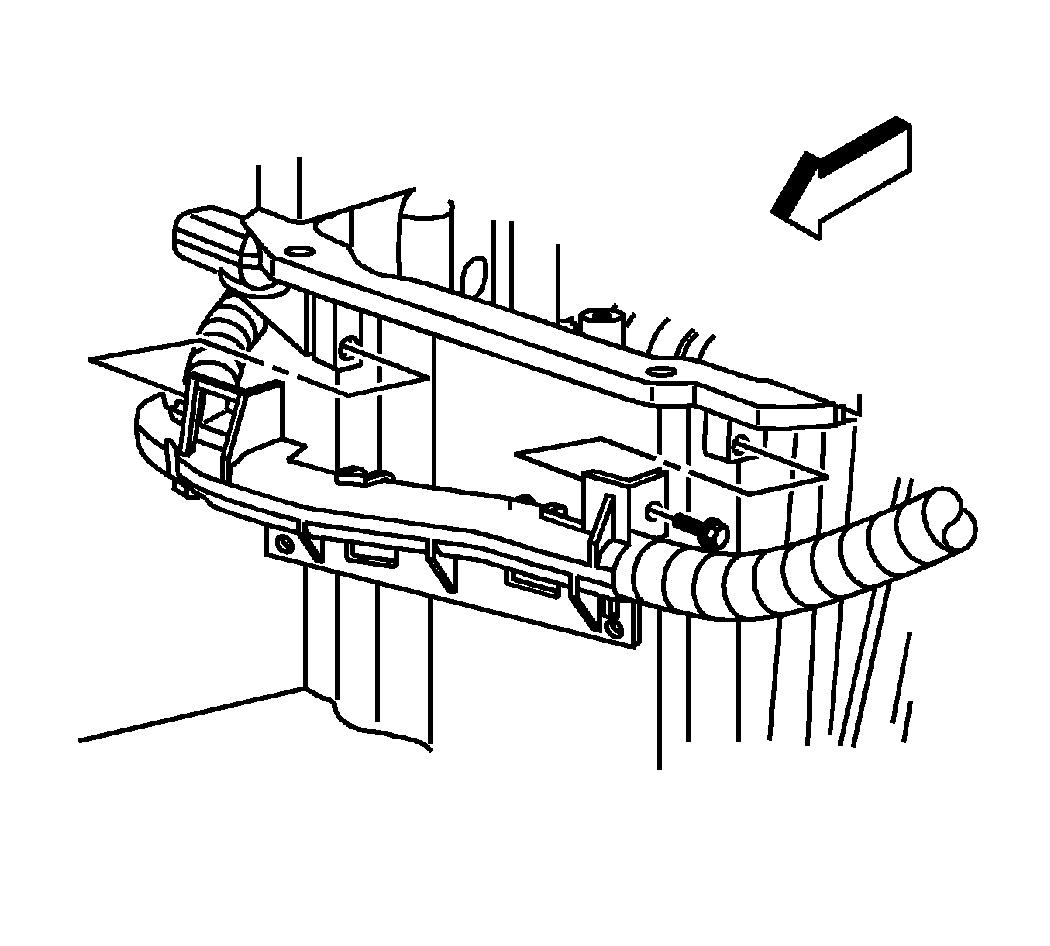

Fig 2: View Of Battery Cable Channel & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the battery cable to the channel.
Install the battery cable channel.
Install the battery cable channel bolt.
Tighten: Tighten the battery cable channel bolt to 12 N.m (106 lb in).

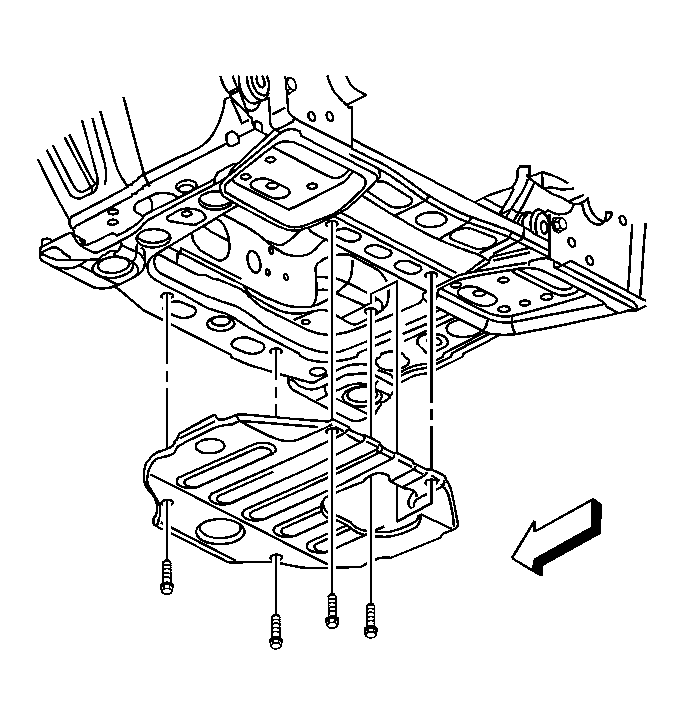

Fig 3: Engine Protection Shield Removed

Courtesy of GENERAL MOTORS CORP.

Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and Underbody.

Fig 4: View Of Generator Cable Boot, Head, Nut & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the generator cable lead (3).
Install the generator cable nut (2).
Tighten: Tighten the nut to 9 N.m (80 lb in).
Position the generator cable boot (1).
Close the clips on the retaining brackets.

Fig 5: Identifying Battery Cable Components

Courtesy of GENERAL MOTORS CORP.

Tighten the positive terminal bolt (1) that secures the harness to the junction block.
Tighten: Tighten the bolt to 10 N.m (89 lb in).
Connect the positive battery cable (4).
Tighten: Tighten the positive cable to 15 N.m (11 lb ft).
Connect the negative battery cable (5). Refer to Battery Negative Cable Disconnect/Connect Procedure .
