Installation Procedure

  1. Position the battery positive cable in the engine compartment.
    2. Fig 1: Rear Of Generator (Alternator) View
    GM754357Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the battery positive cable to the generator and secure with the nut (1).

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

    3. Fig 2: View Of Starter & Related Components
    GM754358Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive cable to the starter and secure the positive cable with the nut (1).

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  4. Install the battery positive cable harness to the fir-tree retainer on the PCM bracket.
  5. Install the battery positive cable into the conduit.
  6. Connect the battery cable conduit to the conduit retaining clip.

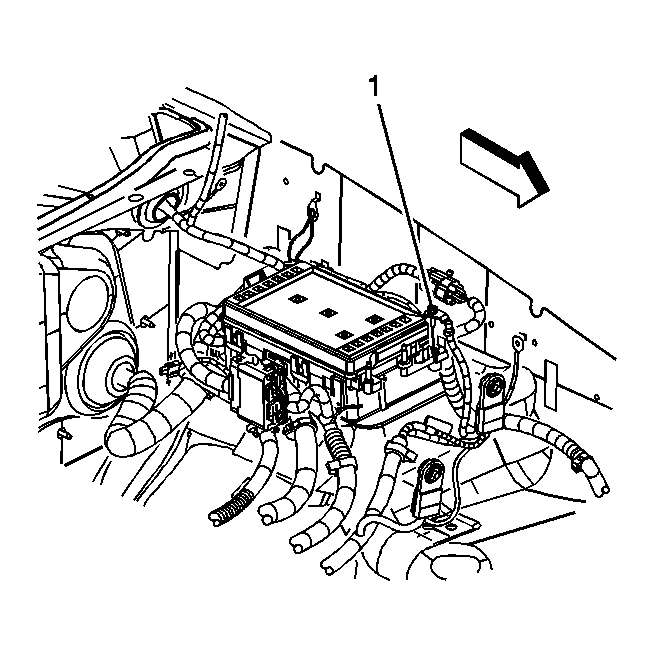

    7. Fig 3: View Of Positive Cable Lead At Junction Block
    GM759304Courtesy of GENERAL MOTORS CORP.
  7. Connect the positive cable to the junction block and secure the positive cable with the bolt (1).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    8. Fig 4: Identifying Battery Cable Components
    GM899613Courtesy of GENERAL MOTORS CORP.
  8. Connect the battery positive cable (4) to the positive battery post.

    Tighten:  Tighten the battery positive bolt to 15 N.m (11 lb ft).

  9. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
