Door Control Module Schematics

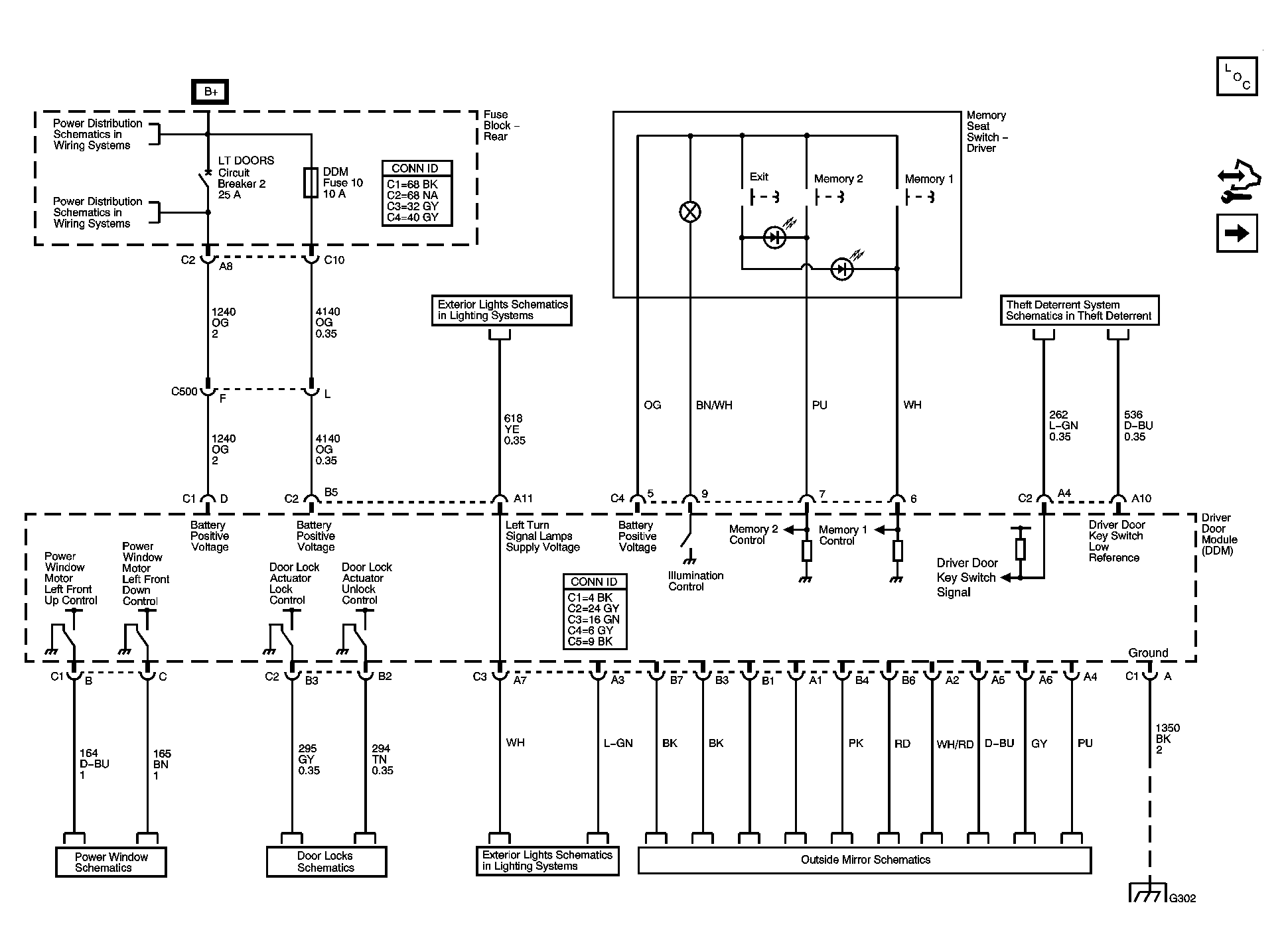

Fig 1: Power, Ground & Subsystem References Schematic
GM1533261Courtesy of GENERAL MOTORS CORP.
Fig 2: Serial Data & Subsystem References Schematic
GM1533262Courtesy of GENERAL MOTORS CORP.

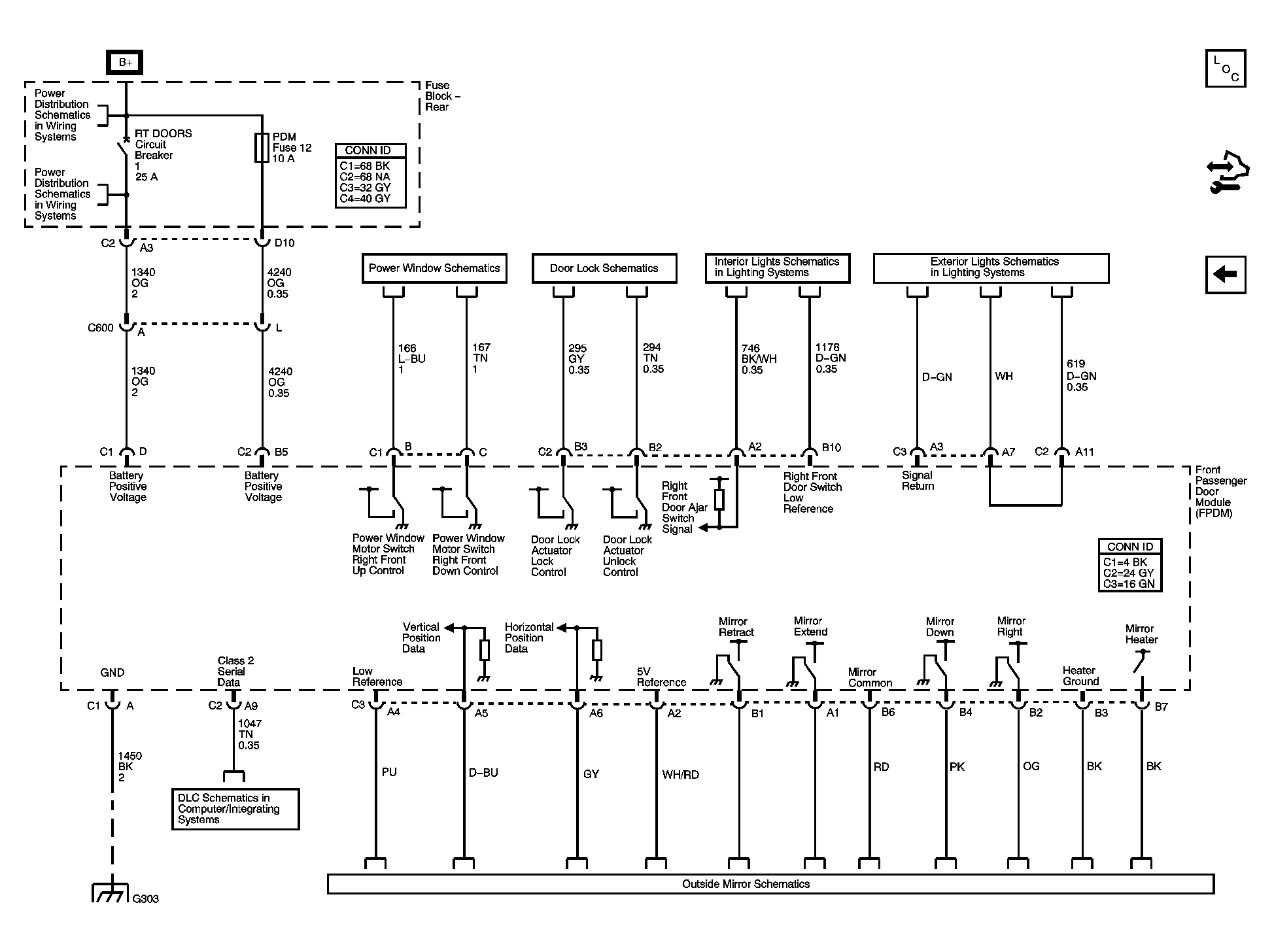

Fig 3: Front Passenger Door Schematic
GM1533263Courtesy of GENERAL MOTORS CORP.
