Body Control System Schematics

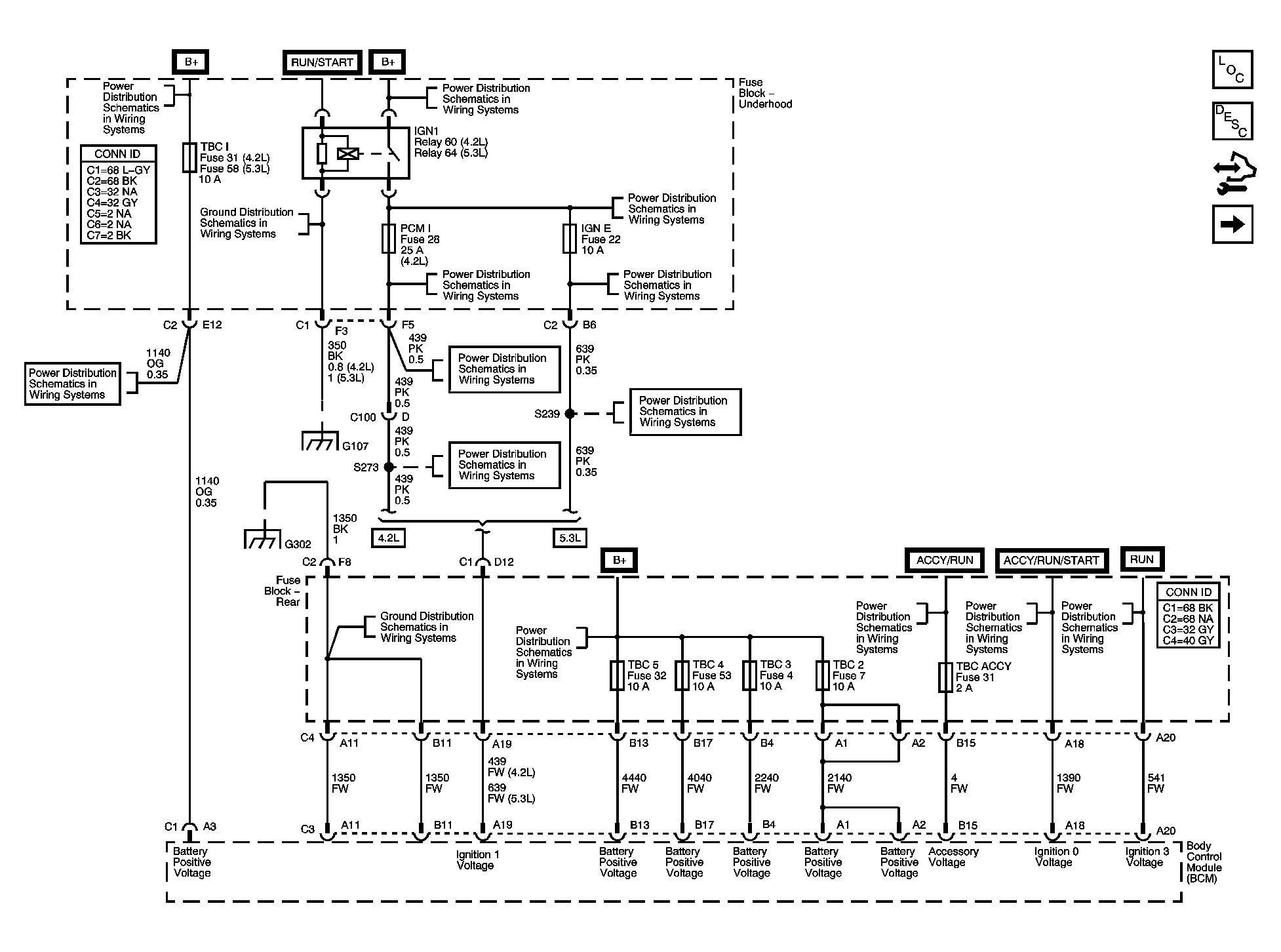

Fig 1: Module Power & Ground Schematic
GM1532851Courtesy of GENERAL MOTORS CORP.

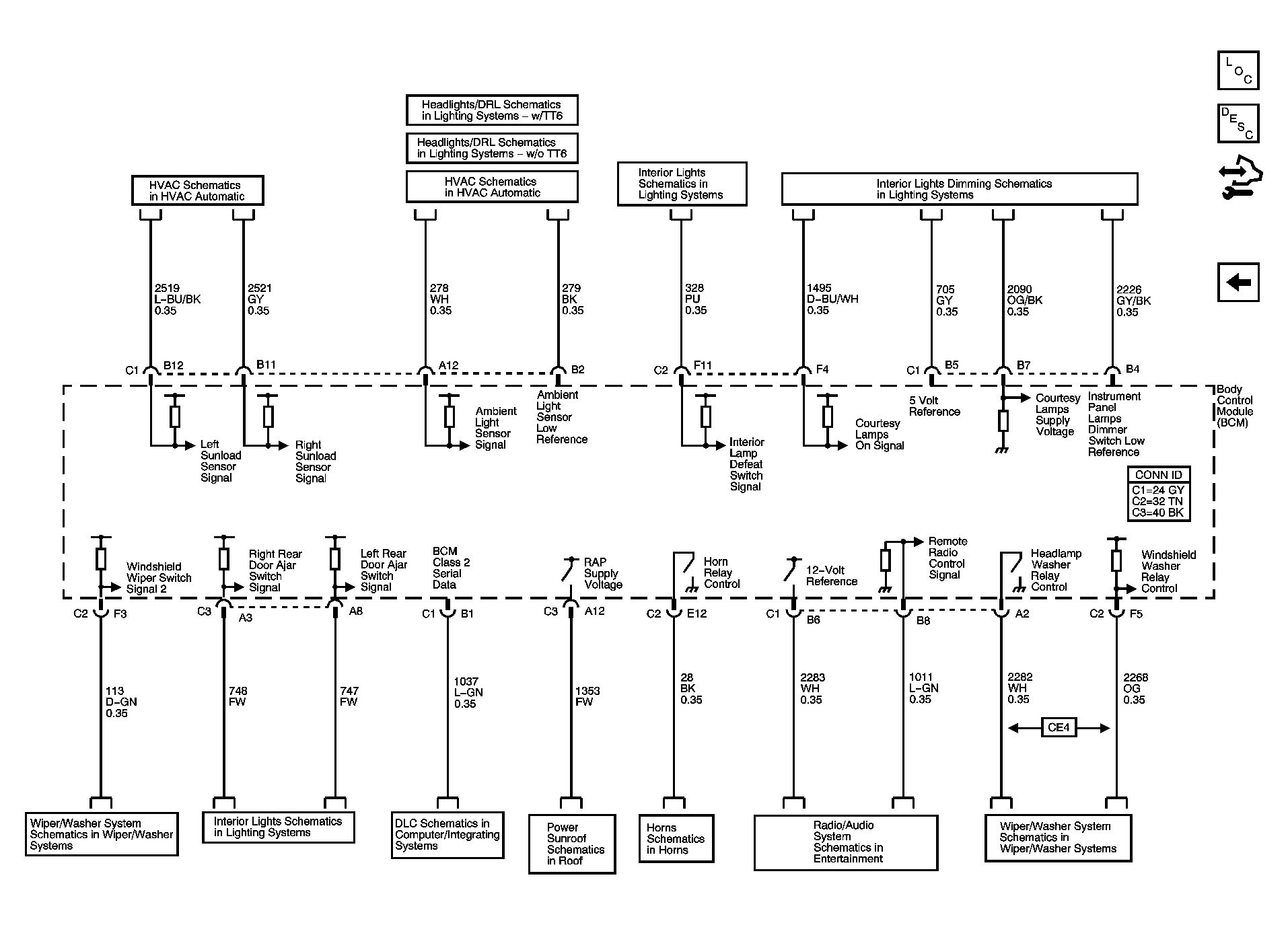

Fig 2: Controlled/Monitored Subsystem References Schematic - 1 of 3
GM1532853Courtesy of GENERAL MOTORS CORP.

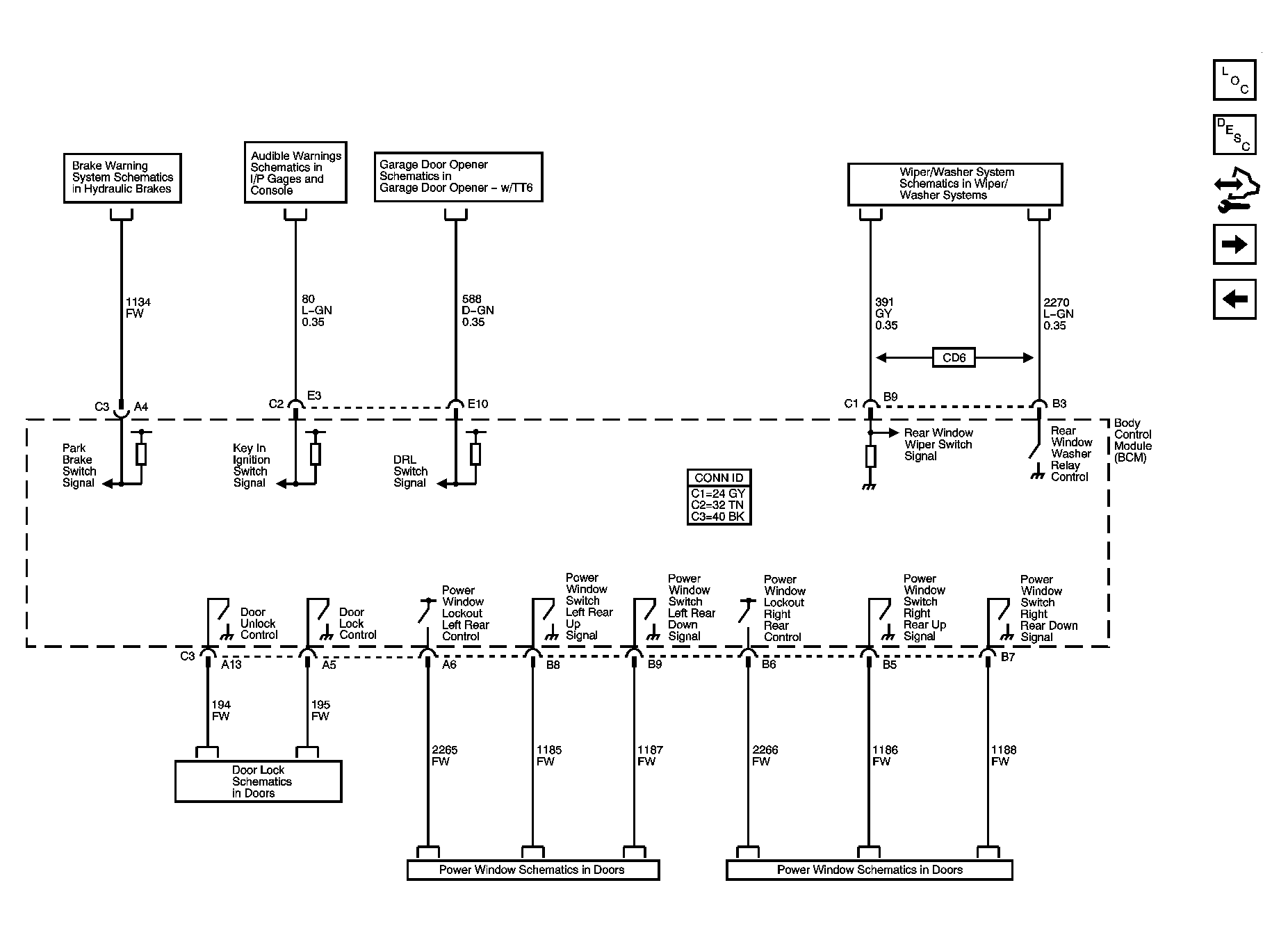

Fig 3: Controlled/Monitored Subsystem References Schematic - 2 of 3
GM1532857Courtesy of GENERAL MOTORS CORP.

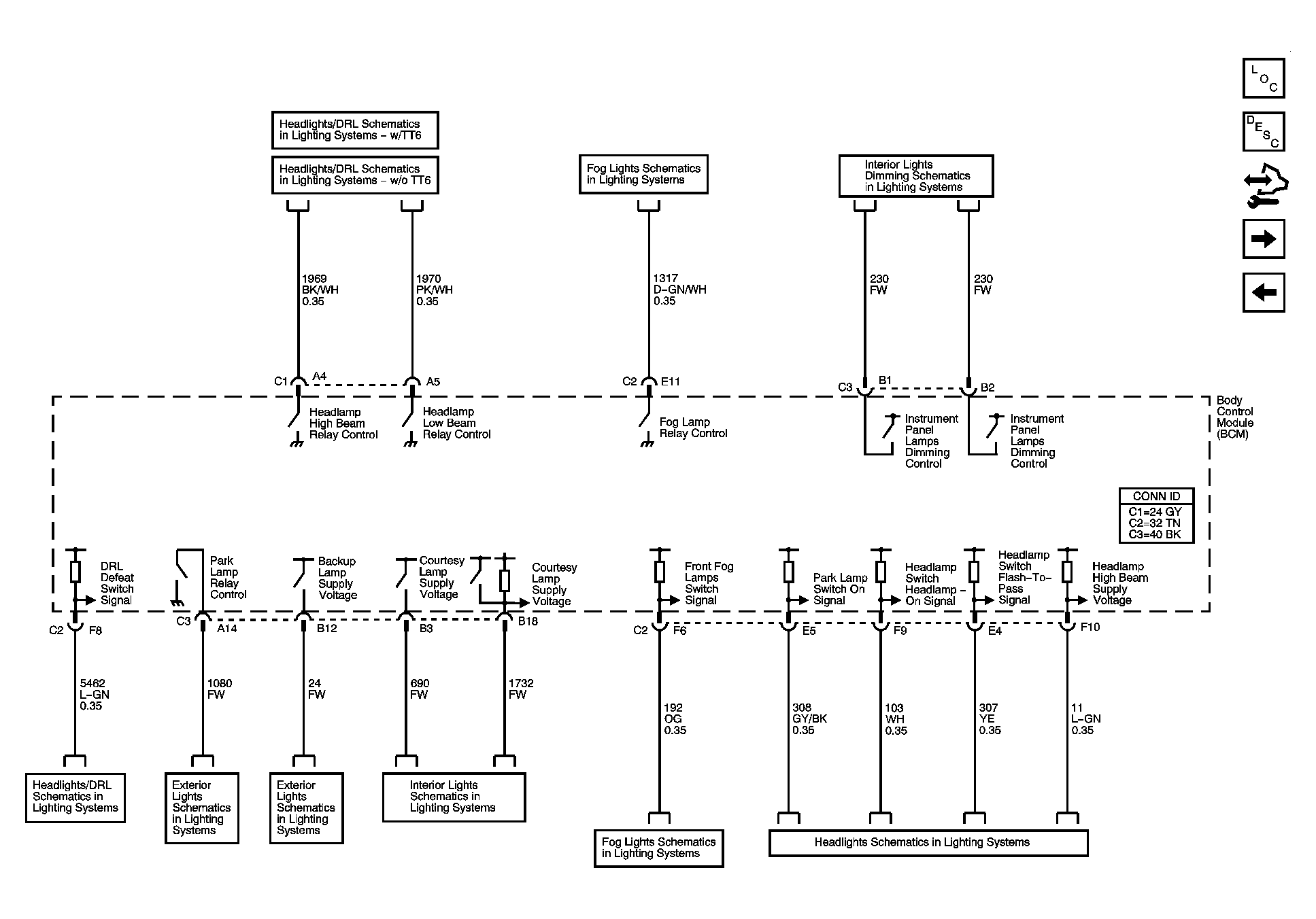

Fig 4: Controlled/Monitored Subsystem References Schematic - 3 of 3
GM1532858Courtesy of GENERAL MOTORS CORP.
