Home >> Saab >> 2005 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Adjustment-Replacement >> Transverse link bush >> To remove

To remove

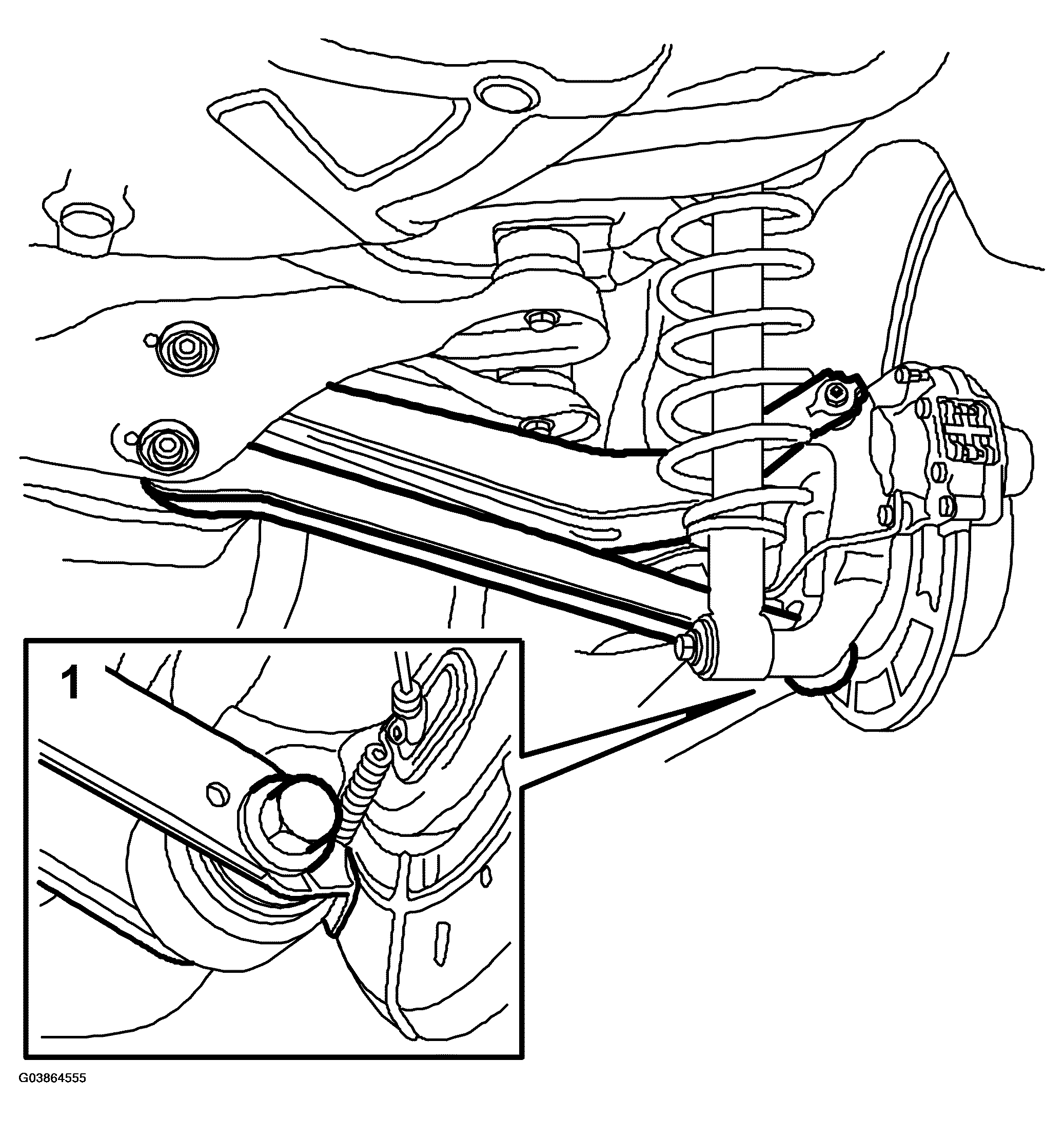

Fig 1: Illustration For Step 1
G03864555Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the transverse link in question.
  2. Press the bush out, using tool 89 96 761  (KM-906-70, KM-906-31, KM-906-32 and KM-906-34).

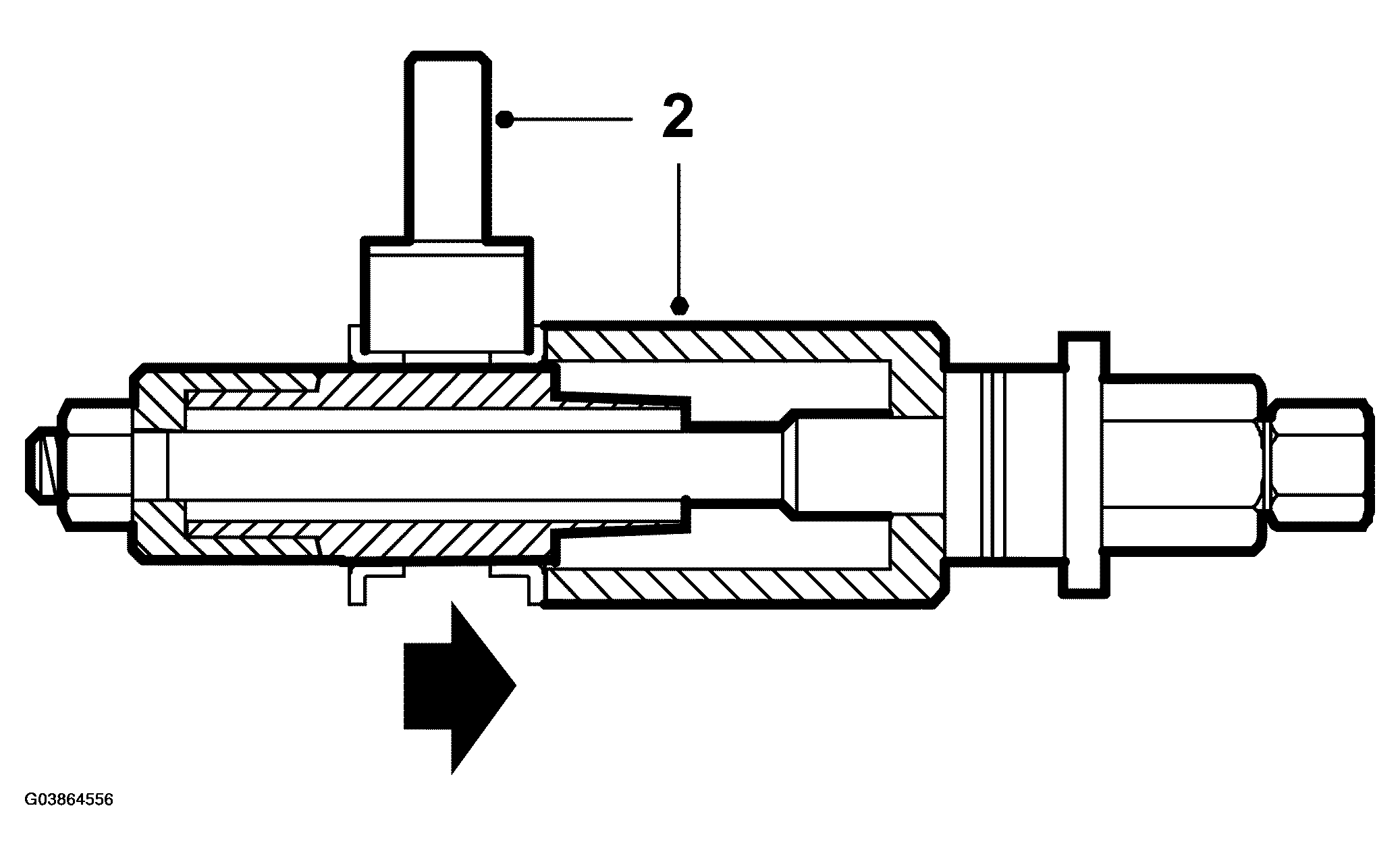

    Fig 2: Illustration For Step 2
    G03864556Courtesy of SAAB-SCANIA OF AMERICA, INC.
