Longitudinal link: Assembly

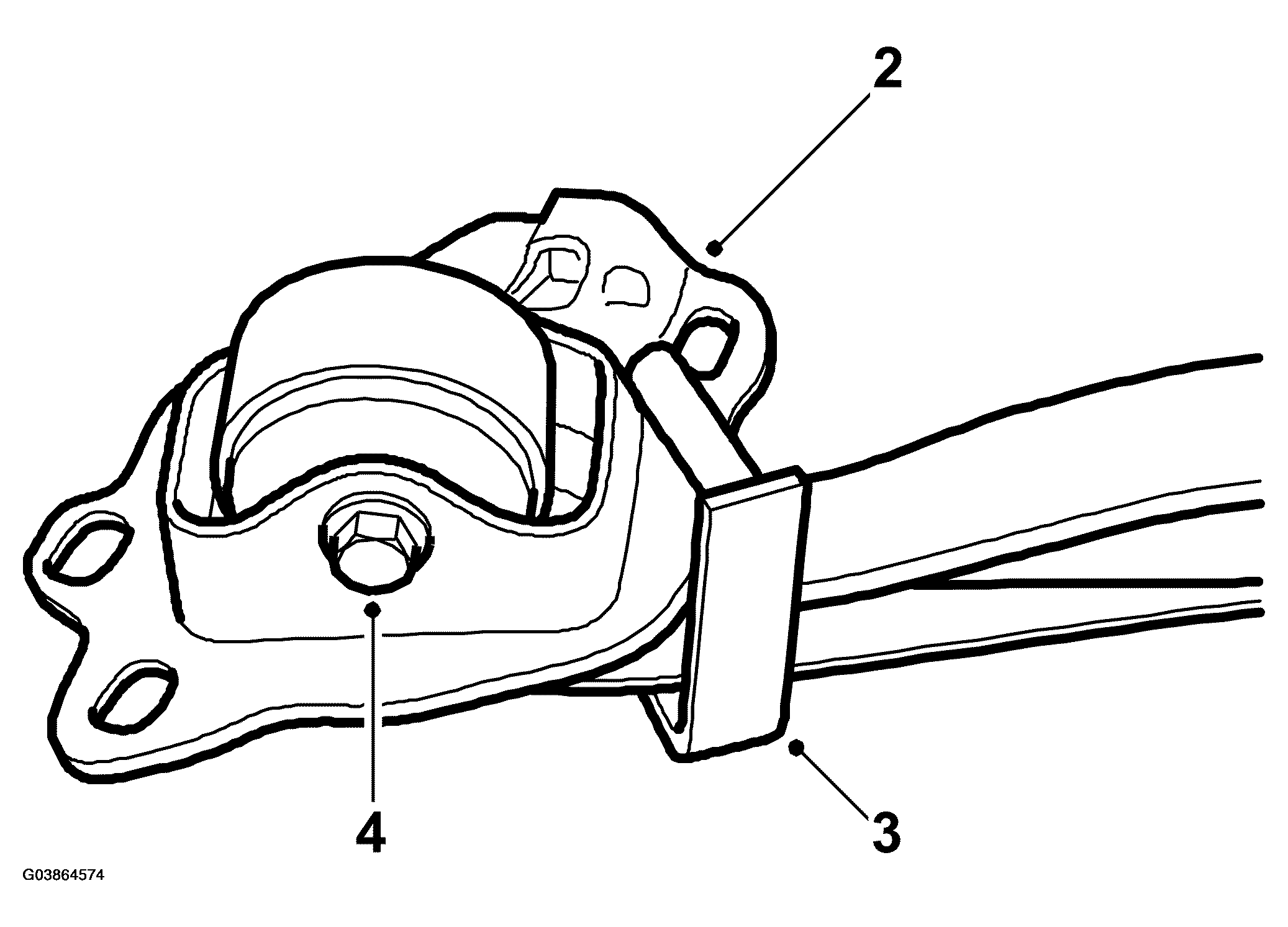

Fig 1: Illustration For Step 2-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit the bush in the longitudinal link and the ball joints in the longitudinal link.
Fit the body bracket back in place on the longitudinal link's bush.
Clamp on 89 96 753 ASSEMBLY FIXTURE, A-BRACKET, REAR AXLE (KM-901) as illustrated.
Tighten the nut and bolt retaining the body bracket.
Tightening torque 90 Nm +60° (70 lbf ft +60°)
Use a wire brush to clean the wheel hub's mating surface.
Fit the wheel hub on the longitudinal link, using new nuts. Tighten the nuts alternately.
Tightening torque 50 Nm +30° (40 lbf ft +30°) .

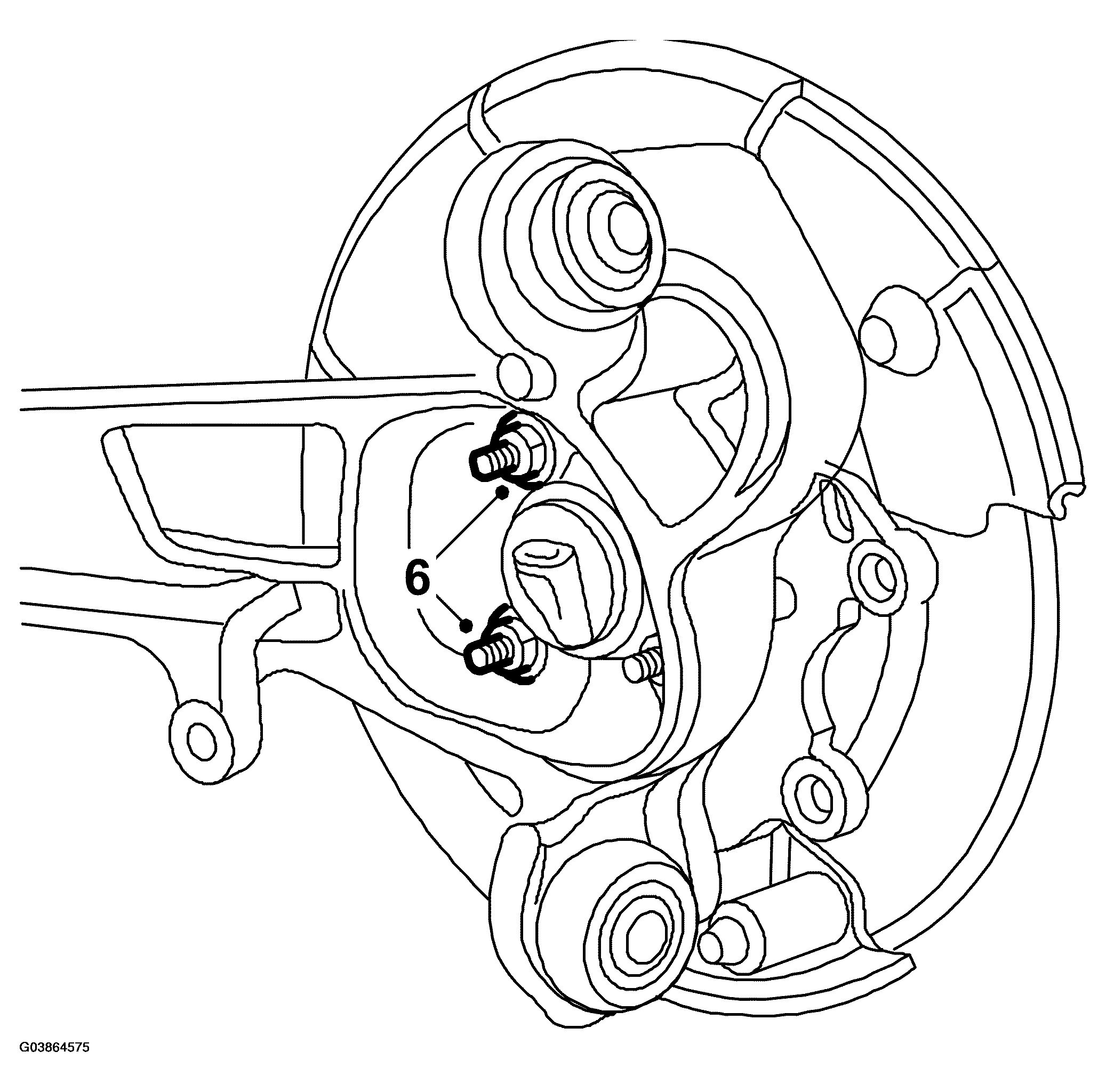

Fig 2: Illustration For Step 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lift up the longitudinal link to the body and insert the bolts.
Secure the mounting using 89 96 795 FIXING TOOL and tighten the bolts.

Tightening torque: 90 Nm +30° (66 lbf ft +30°)

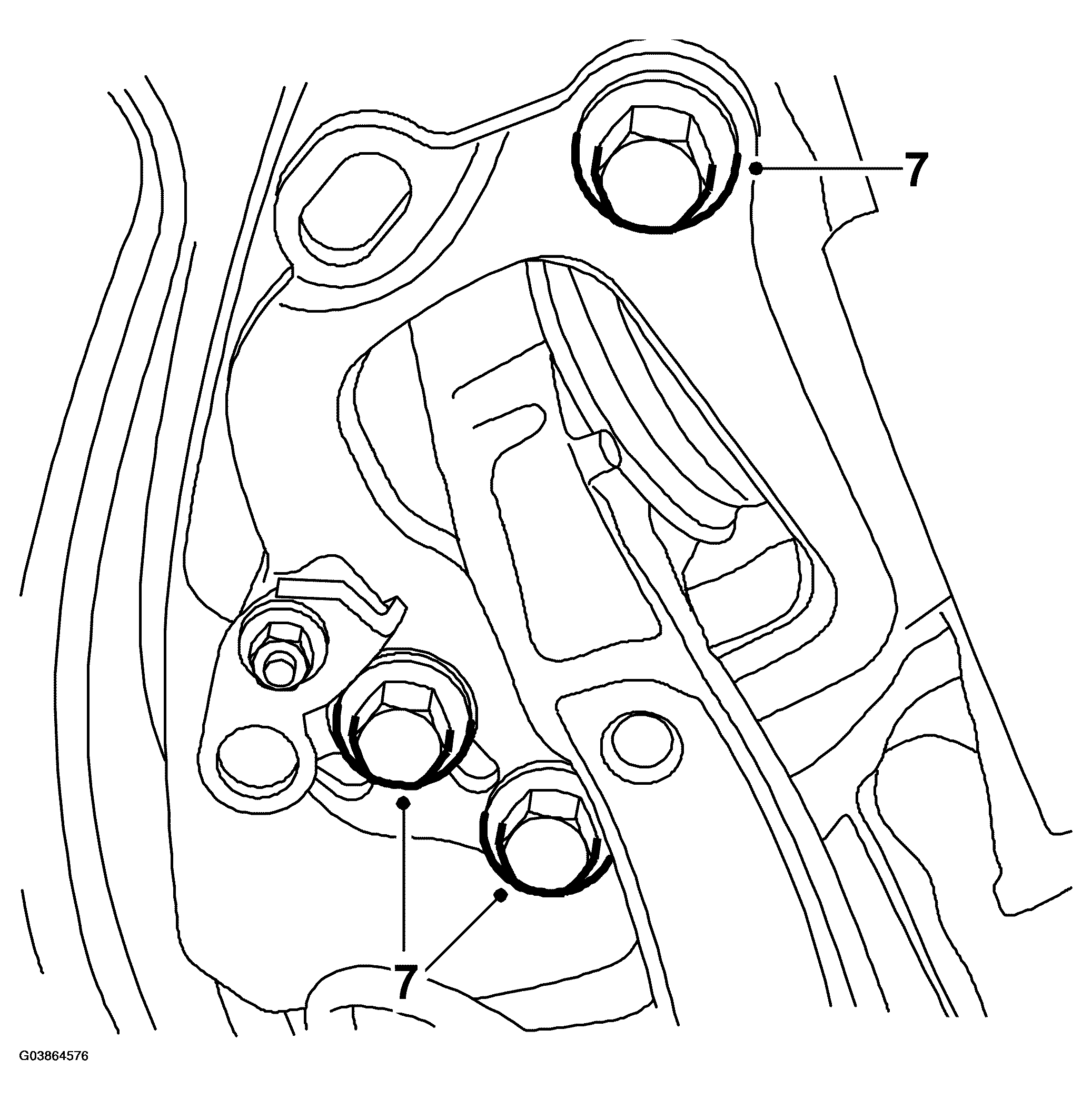

Fig 3: Illustration For Step 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Tighten the bolt securing the upper transverse link to the longitudinal link.
Tightening torque 90 Nm +60° (70 lbf ft +60°)

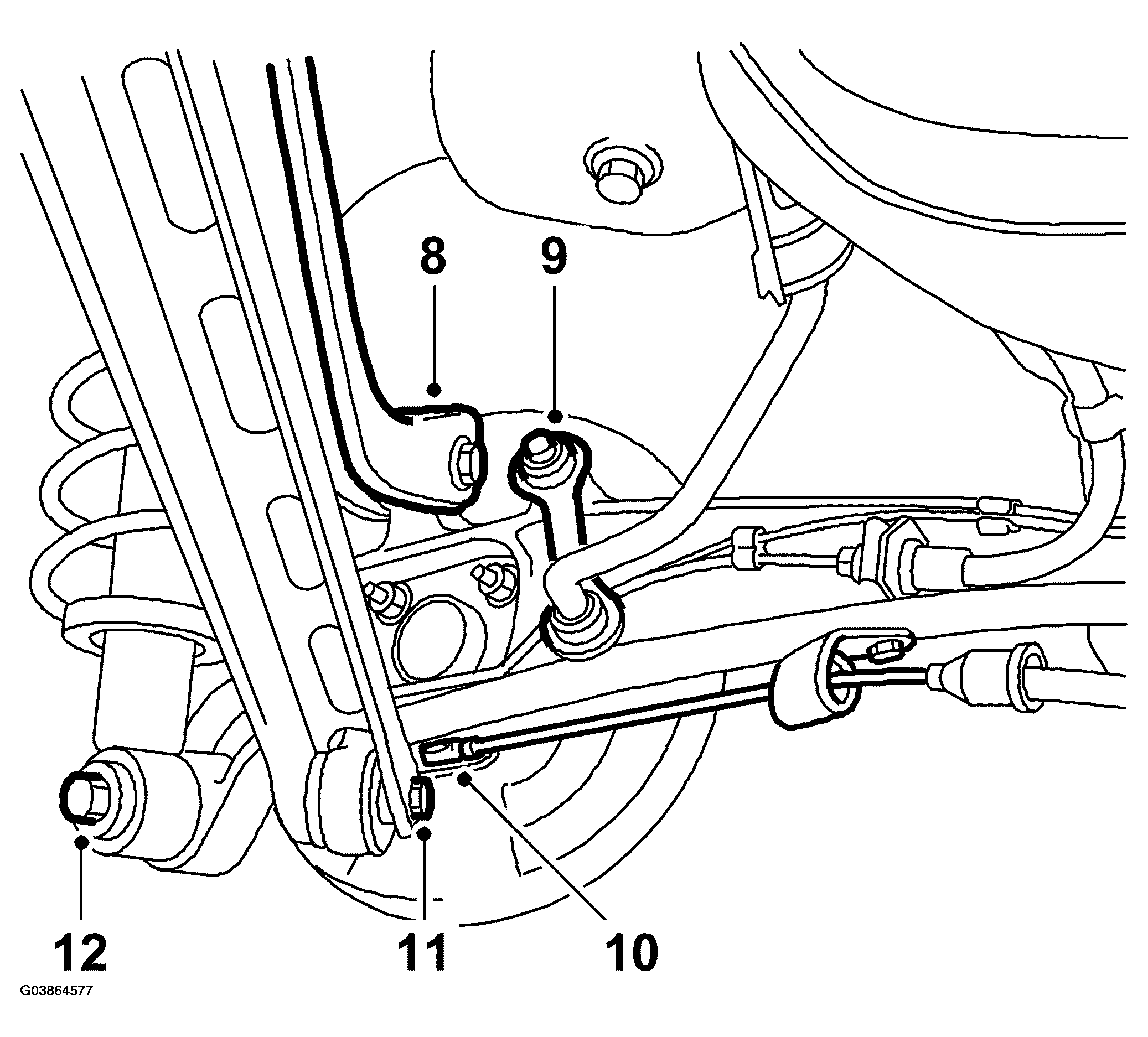

Fig 4: Illustration For Step 8-12
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Tighten the bolt securing the anti-roll bar link to the longitudinal link.
Tightening torque 50 Nm (40 lbf ft) .
Hook the handbrake cable on and refit the return spring.
Tighten the bolt securing the lower transverse link to the longitudinal link.
Tightening torque: 90 Nm +60° (66 lbf ft +60°)
Position the bottom damper mounting on the rear axle. Insert the bolt. Raise the steering swivel member with a column jack to about the same height as when the car is standing on its wheels. Tighten the bolt.
Tightening torque 190 Nm (140 lbf ft)
Fit the brake caliper. Use 74 96 268 Thread locking adhesive on the bolts.
Tightening torque: 80 Nm (59 lbf ft)

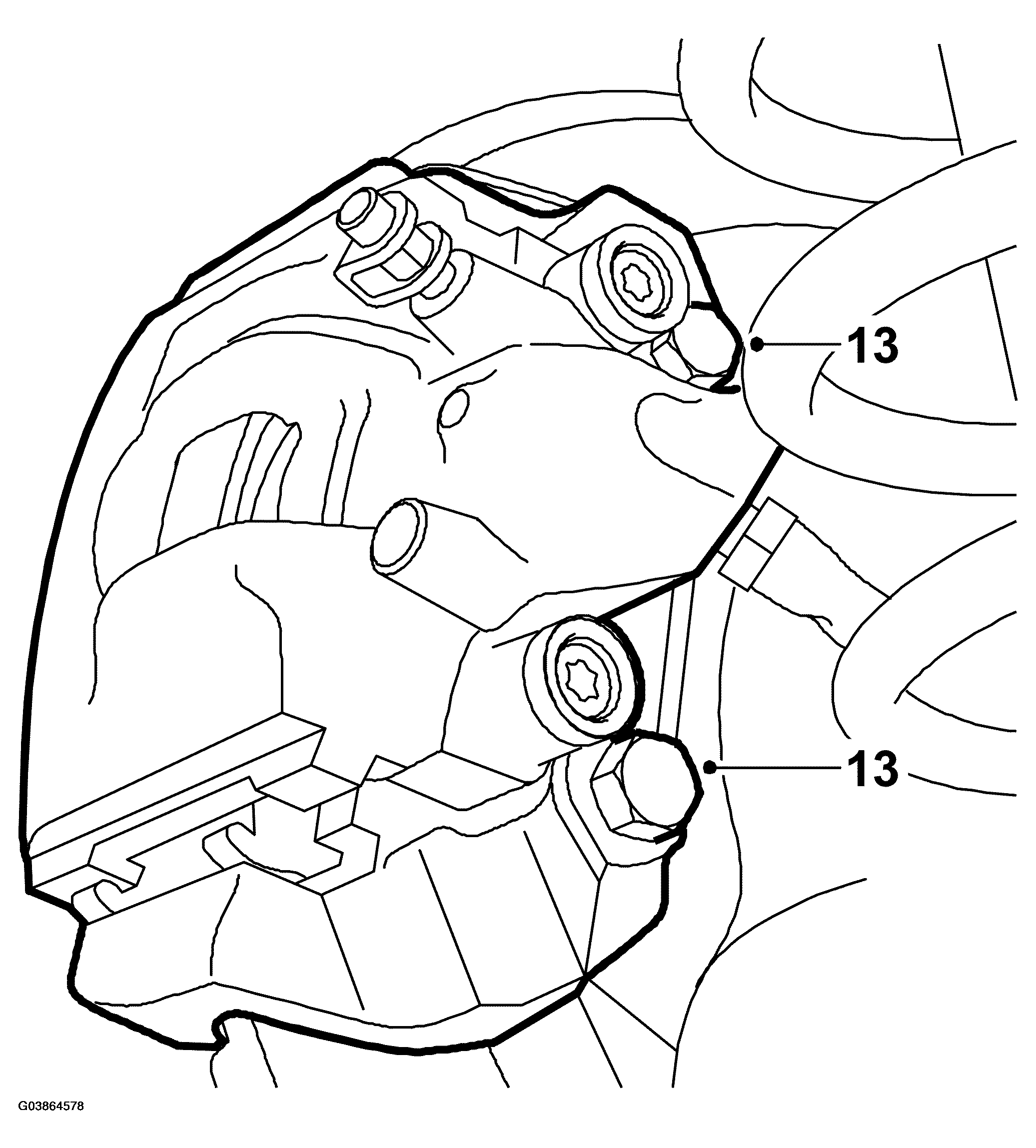

Fig 5: Illustration For Step 13
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the mounting for the wheel sensor and the brake pipe.
Tightening torque: 24 Nm (18 lbf ft)

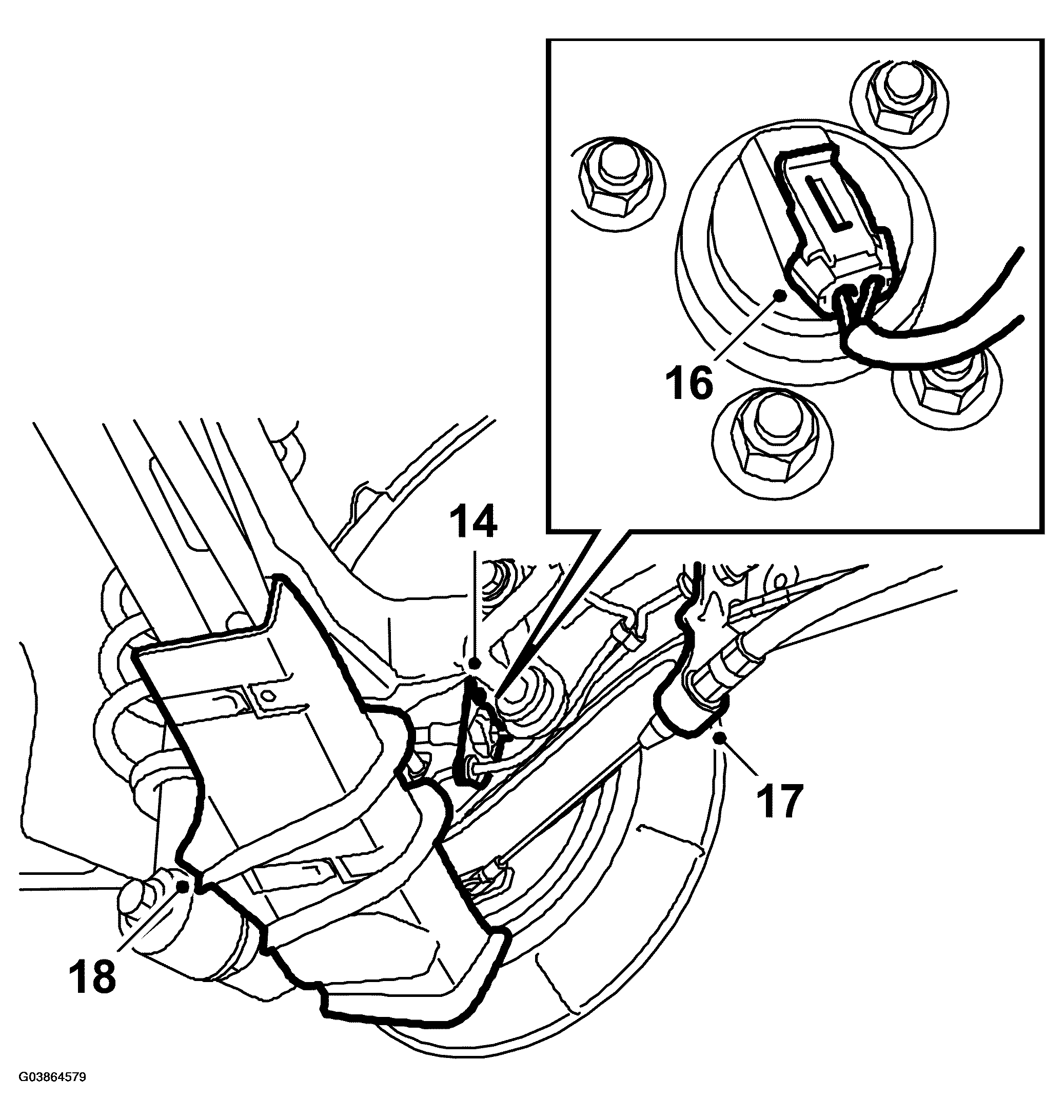

Fig 6: Illustration For Step 14, 16-18
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the wheel sensor cable into the mounting.
Plug in the wheel sensor connector.
Fit the handbrake cable bracket.
Tightening torque: 8 Nm (6 lbf ft)
Fit the air deflector.
Fit the wheel.
Tightening torque

aluminum rim 110 Nm (81 lbf ft) .

pressed steel rim 50 Nm +2x90°, max 110 Nm (37 lbf ft +2x90°, max 81 lbf ft)

Lower the car.
Depress the brake pedal to press out the piston in the brake caliper.
Adjust the toe angles.
