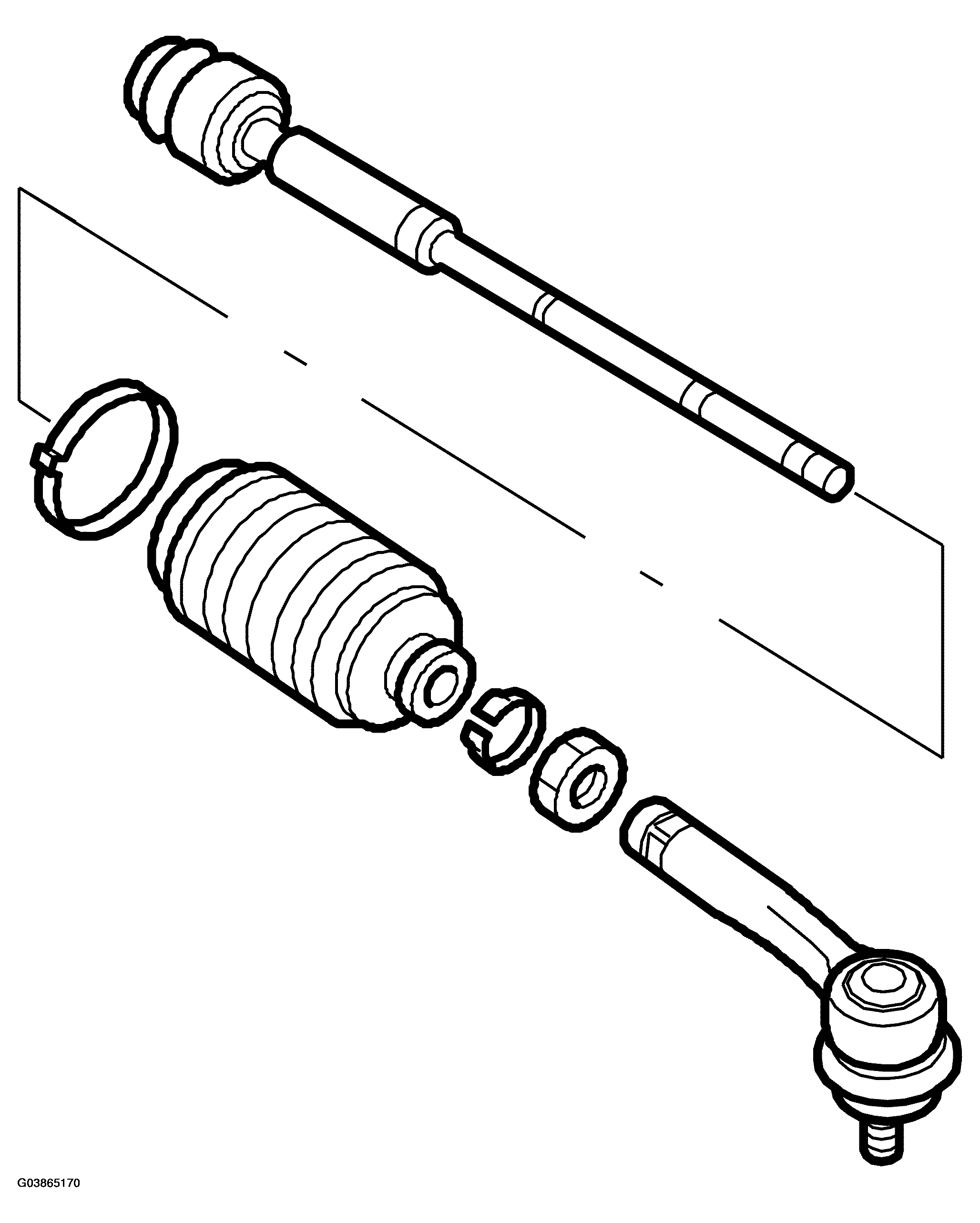

Outer Track-Rod Ends
The track-rod ends on both sides are screwed on the track rods and secured by means of locknuts. By slackening the locknuts and turning the track rods to left or right, the distance between the outer and inner track-rod ends can be reduced or increased to adjust the toe-in angle.
Each track rod is secured to the steering arm of the steering swivel member by means of a selflocking nut.
The track-rod ends are not dismountable. Right and left track-rod ends differ and are marked to avoid confusion.
