To remove

  1. Raise the car. If a jack is used, safety stands should be placed under the car.
  2. Remove the wheel.
  3. Slacken the locknut.

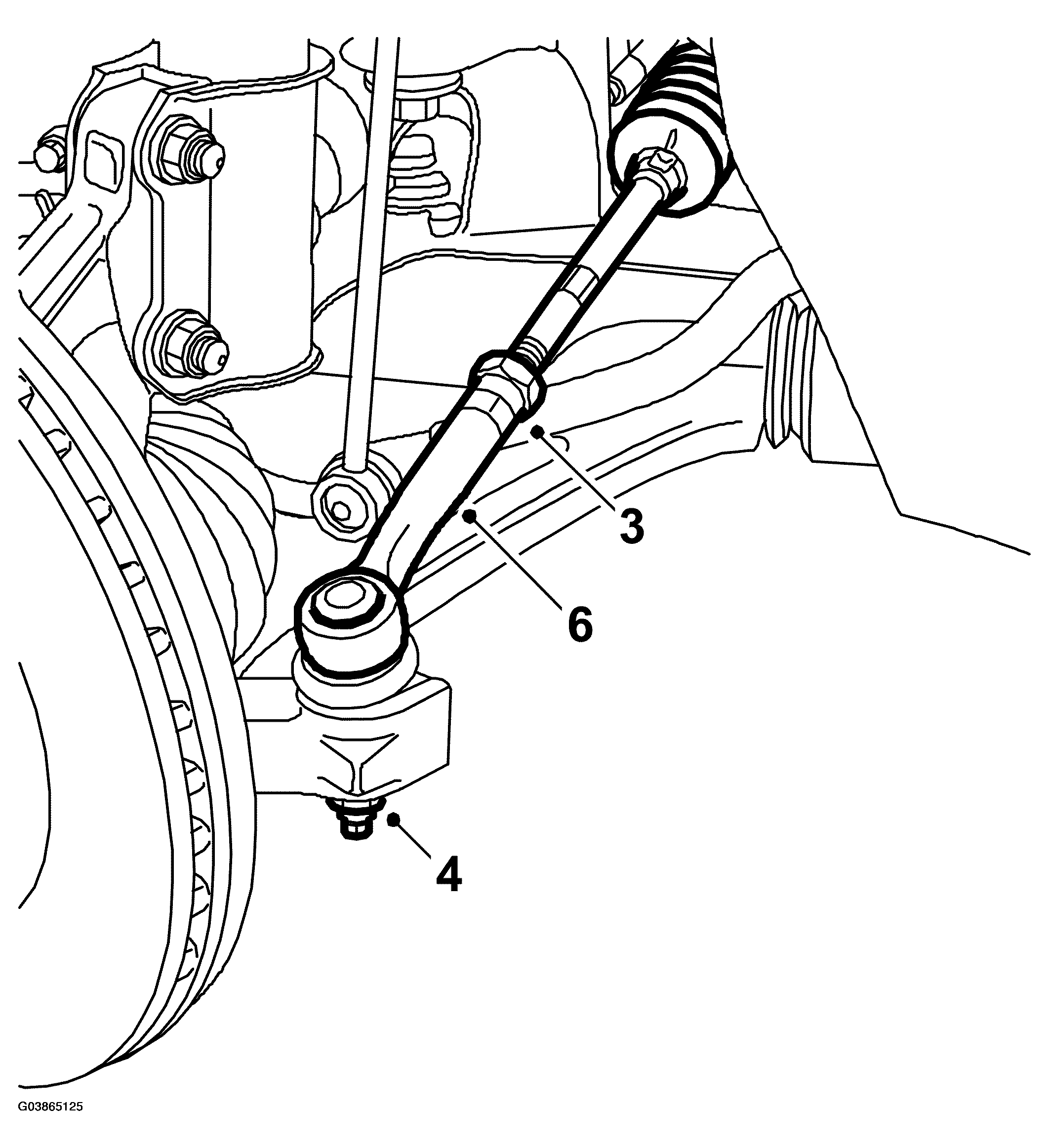

    Fig 1: Illustration For Steps 3, 4 & 6
    G03865125Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the nut securing the track-rod end to the steering swivel member.
  5. Part the track-rod end from the steering swivel member with 87 91 287 PULLER, 150 MM  .
  6. Unscrew the track-rod end from the track rod, counting the number of turns.
