Swivel-Pin Inclination

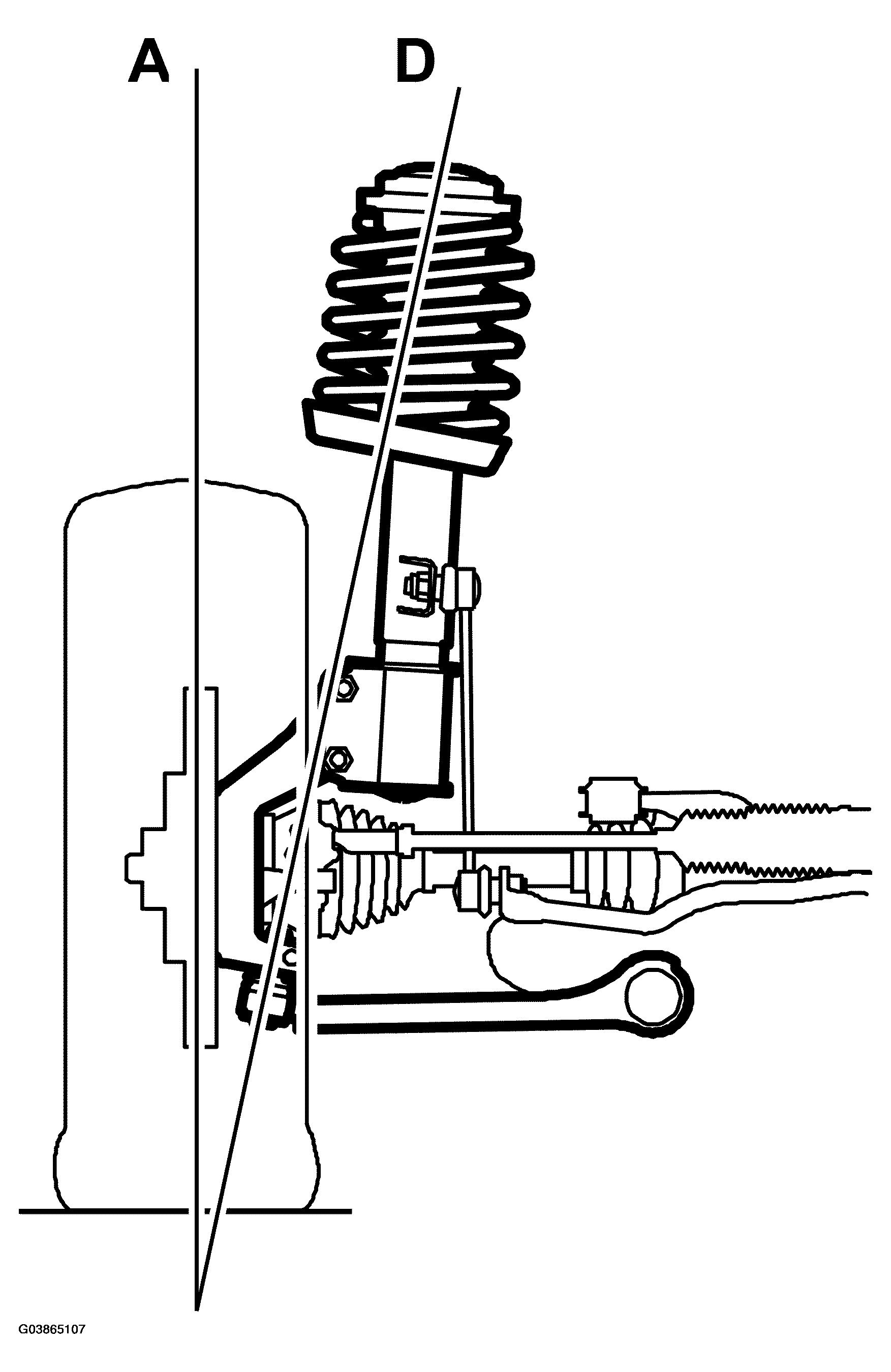

Fig 1: Identifying Swivel-Pin Inclination
G03865107Courtesy of SAAB-SCANIA OF AMERICA, INC.

Swivel-pin inclination cannot be adjusted as it is determined by the steering swivel member.

If it is not within the specified limits despite the camber being correct, the steering swivel member is at fault and will have to be replaced.

Alignment settings, see WHEEL ALIGNMENT  .
