Sensor, Intake Air (688)

4-cyl. petrol

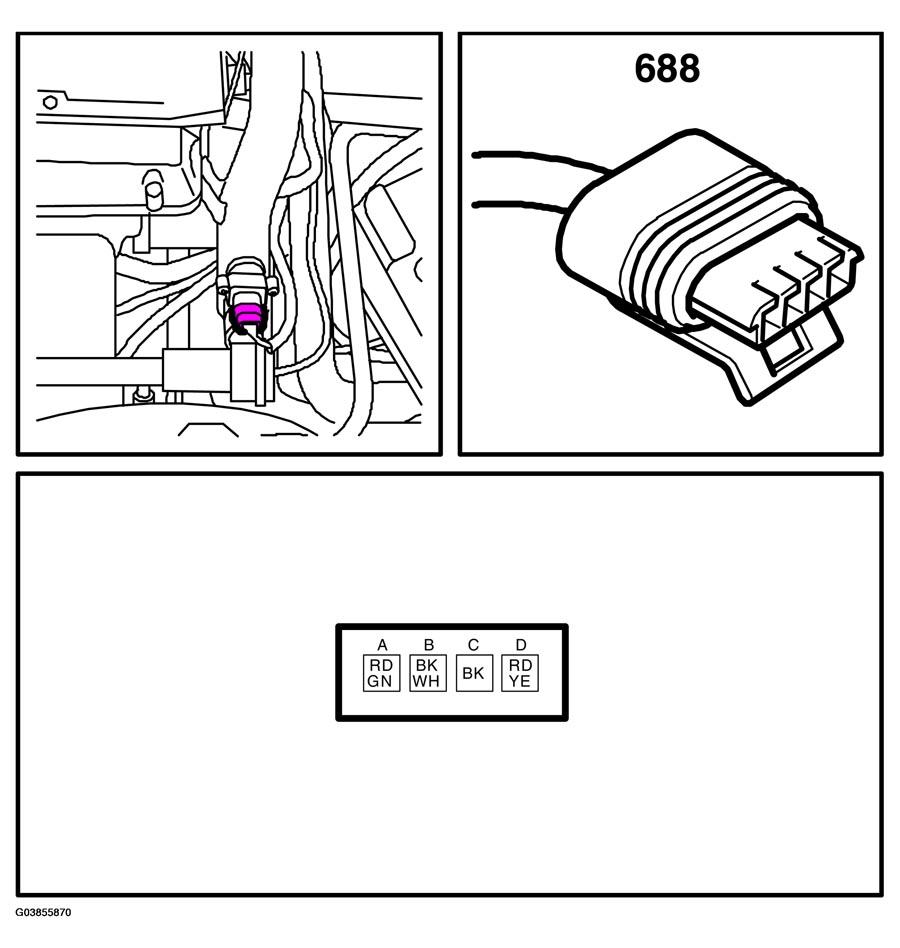

Fig 1: Identifying Intake Air Sensor Connector And Location (4-Cyl. Petrol)
G03855870Courtesy of SAAB-SCANIA OF AMERICA, INC.

PSG16

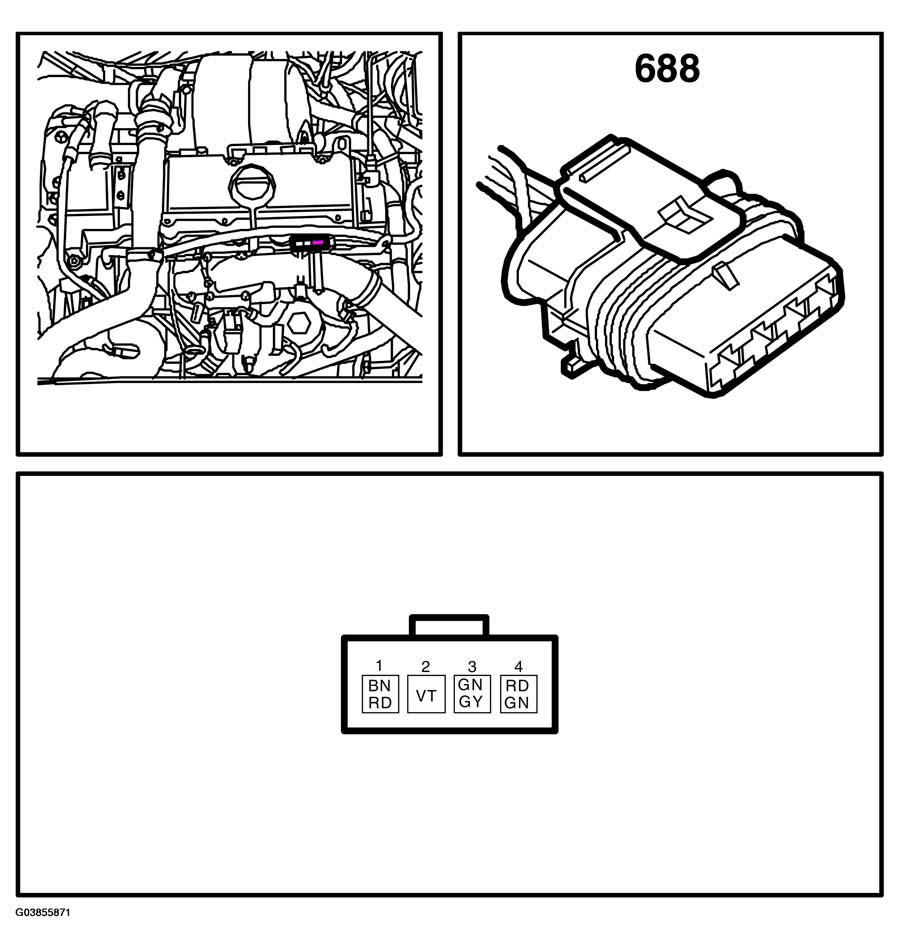

Fig 2: Identifying Intake Air Sensor Connector And Location (PSG16)
G03855871Courtesy of SAAB-SCANIA OF AMERICA, INC.
