Mass Air Flow Sensor (205)

4 cylinder petrol

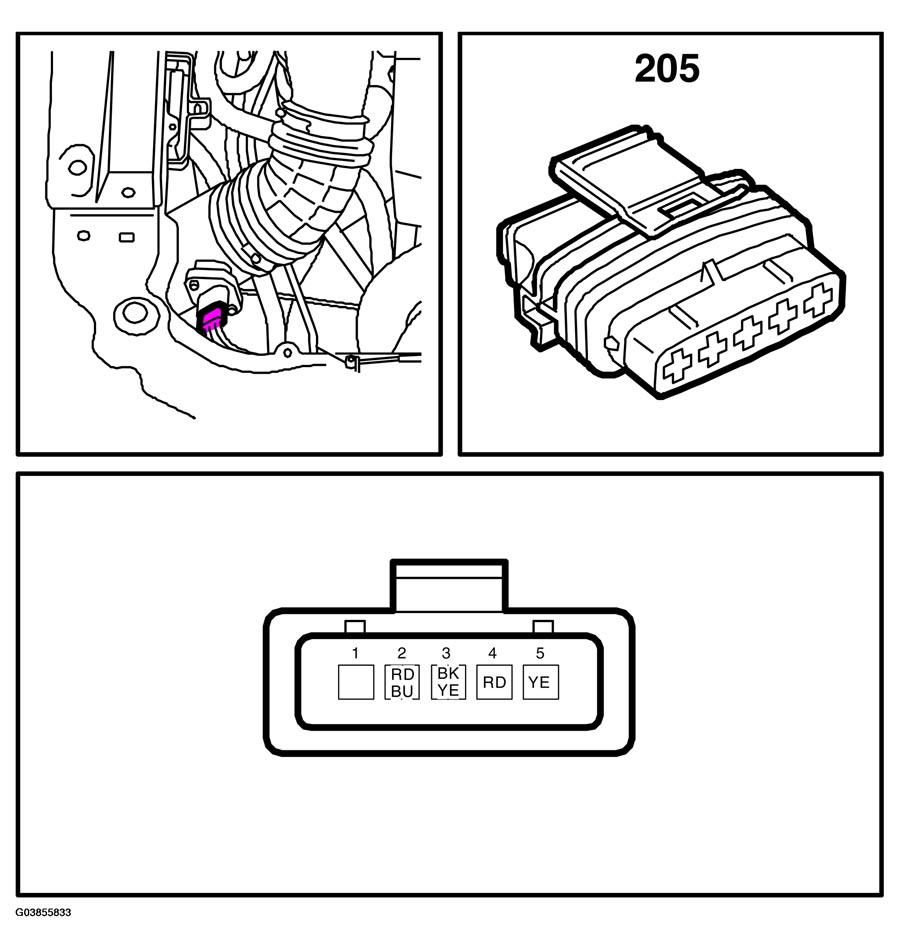

Fig 1: Identifying Mass Air Flow Sensor Connector And Location (4 Cylinder Petrol)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

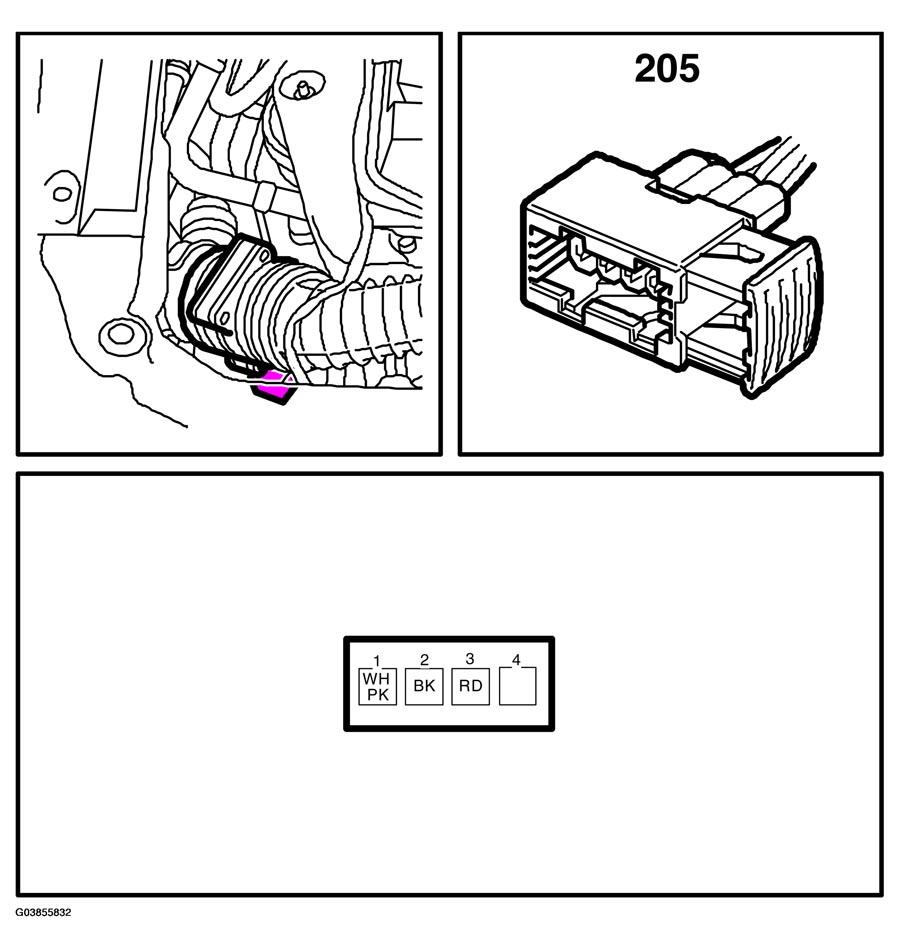

Fig 2: Identifying Mass Air Flow Sensor Connector And Location (4 Cylinder Diesel)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

V6 diesel

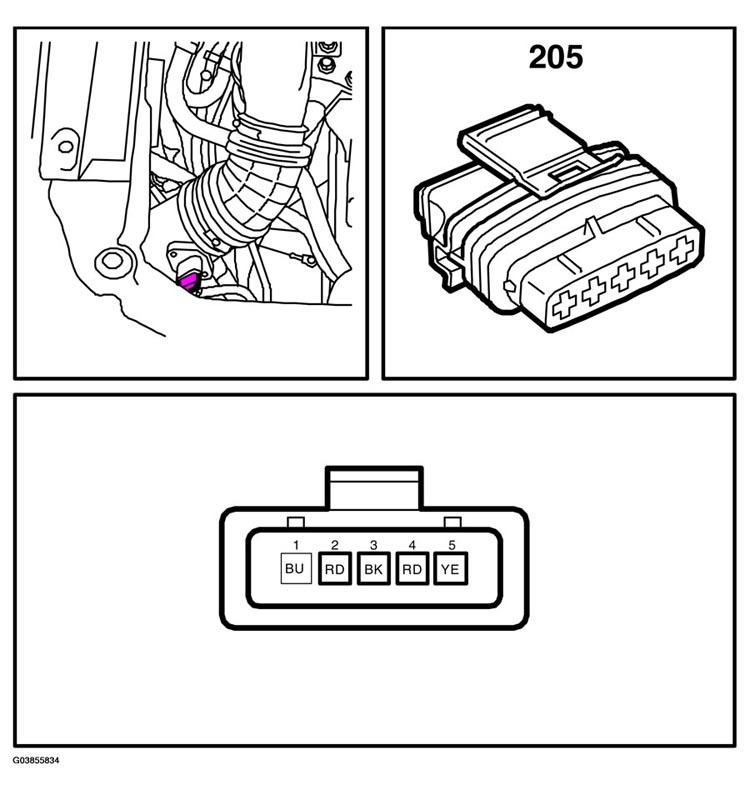

Fig 3: Identifying Mass Air Flow Sensor Connector And Location (V6 Diesel)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
