Fuel Pump

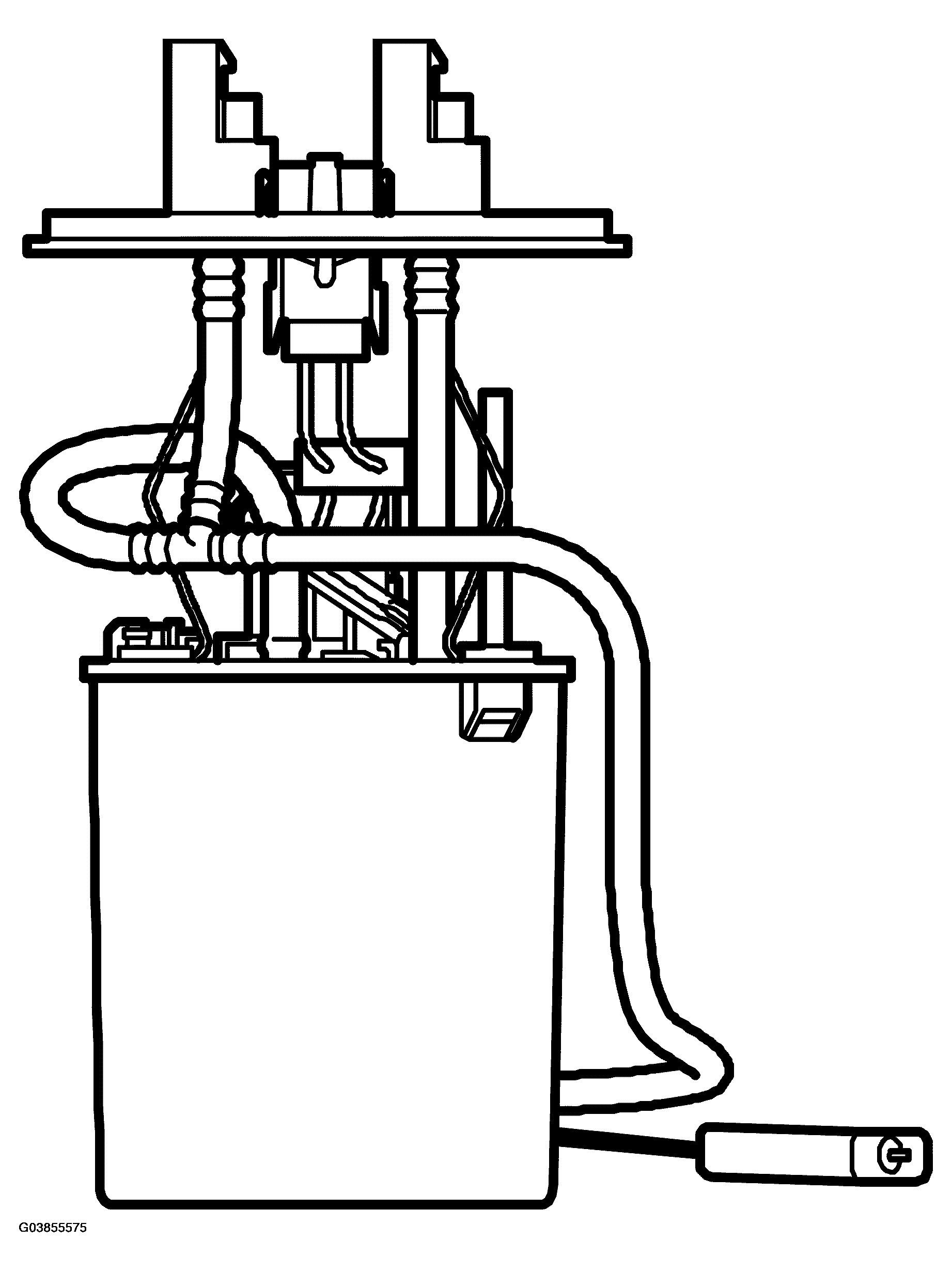

Fig 1: Identifying Fuel Pump
G03855575Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PUMP SPECIFICATION CHART

Capacity at 3.0 bar backpressure l/30s min. 0.7
Resistance, fuel level sensor, full tank Ohm 425 +/- 6.5
Resistance, fuel level sensor, empty tank Ohm 50 +/- 1.5
