Drive-Belt Tension

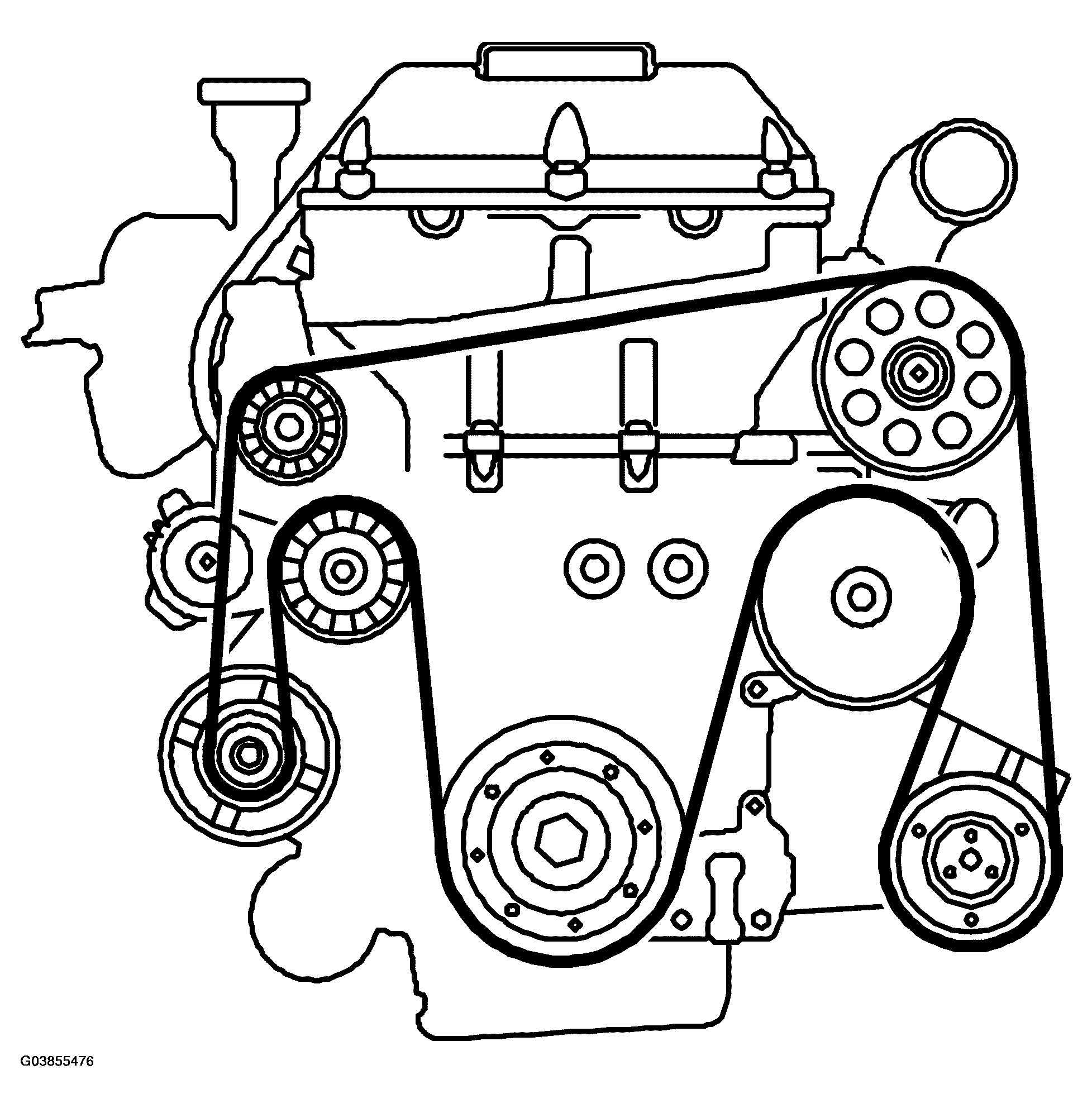

Fig 1: Viewing Drive-Belt Tensioner
G03855476Courtesy of SAAB-SCANIA OF AMERICA, INC.

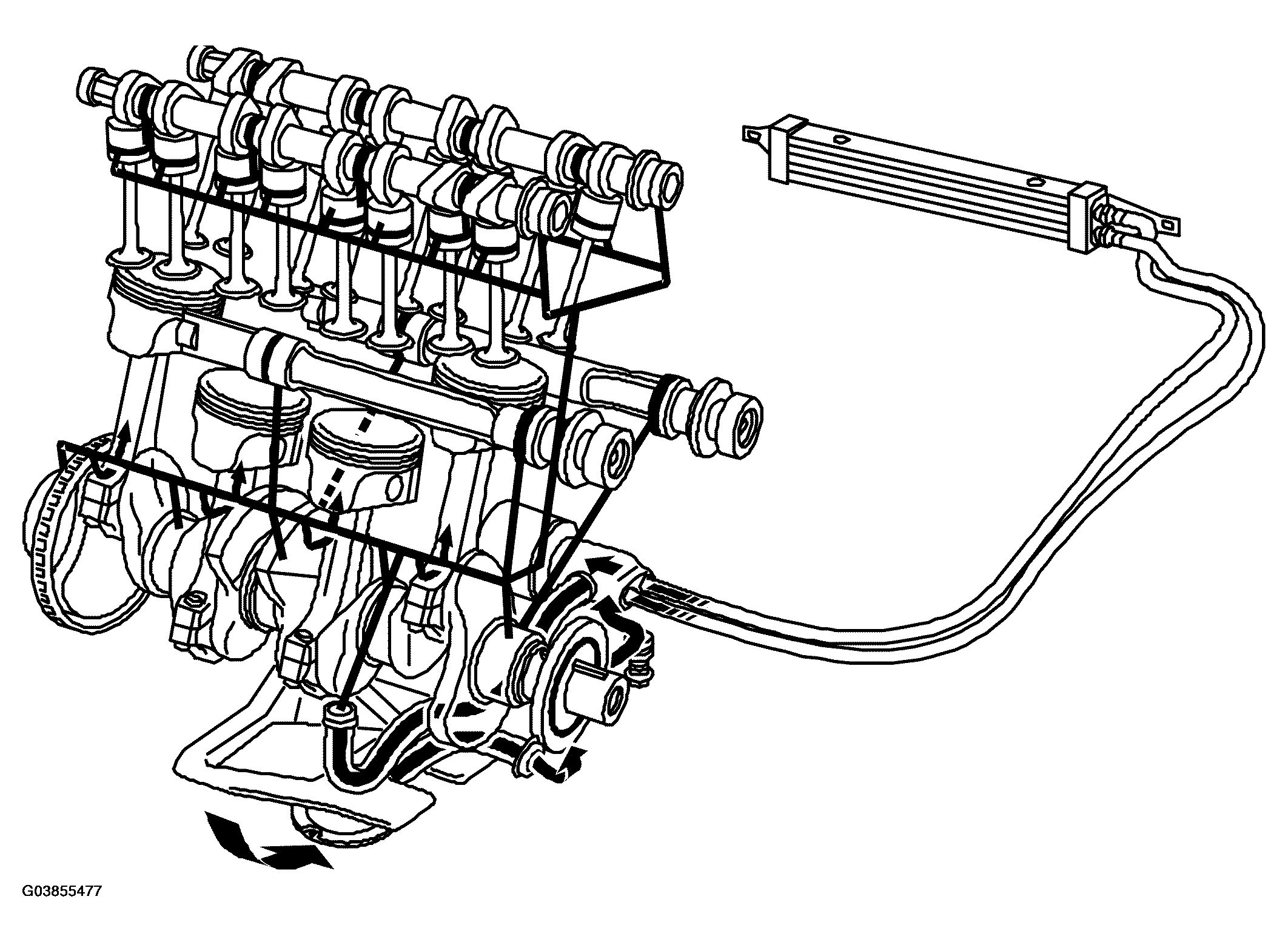

Fig 2: Viewing Lubricating System
G03855477Courtesy of SAAB-SCANIA OF AMERICA, INC.
TENSION SPECIFICATION

Tension when checking N (lbf) 315 +/- 25 (70.4 +/- 5.6)
