To fit

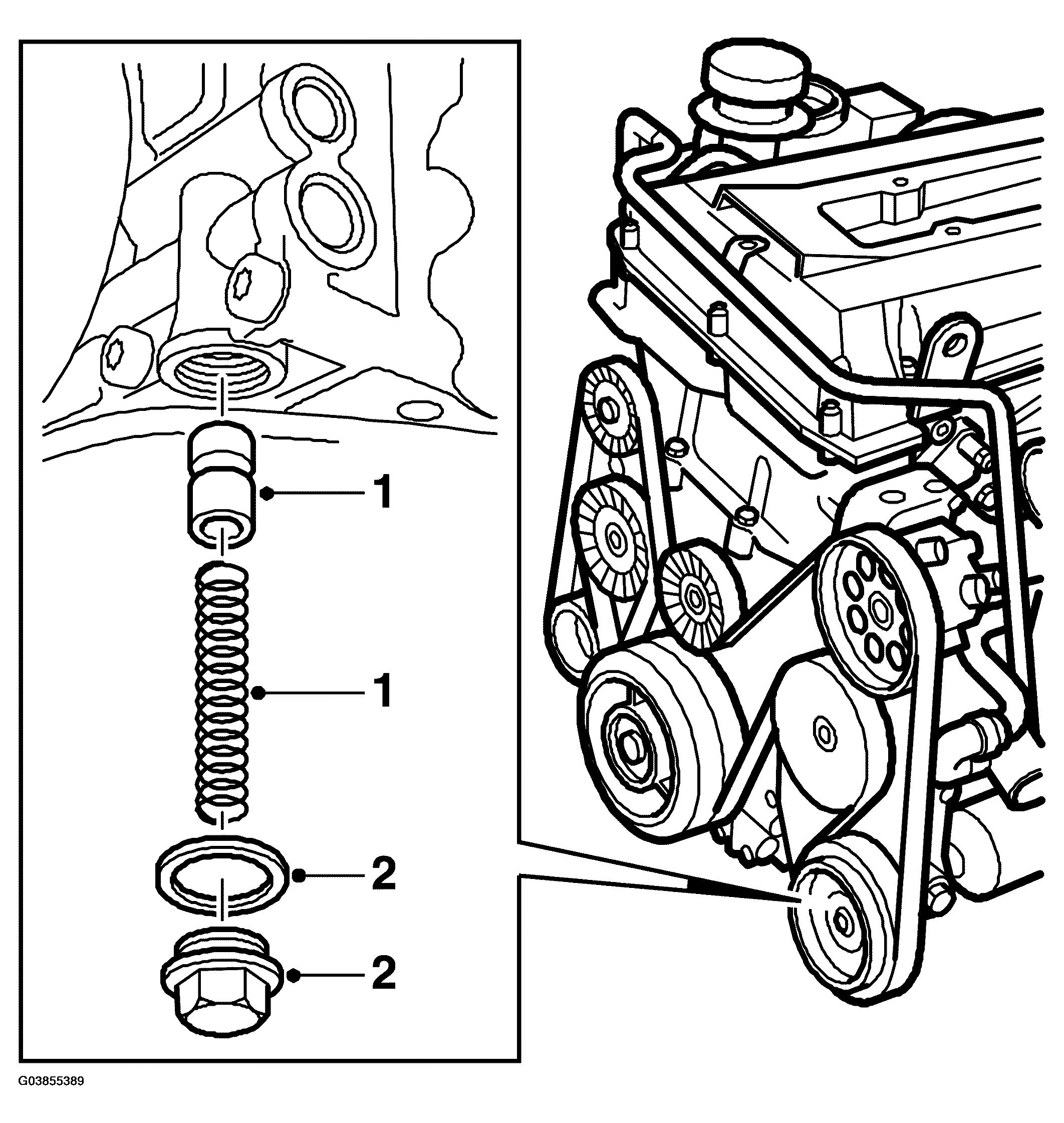

Fig 1: Illustration For Steps 1-2
G03855389Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the reducing valve and spring. Make sure that the reducing valve is an easy fit.
  2. Check the seal and sealing surface and screw in the plug.

    Tightening torque 25 Nm (19 lbf ft).

  3. Fit the cover and lower the car.
  4. Check the oil level and top up as necessary.
