To fit

  1. Fit the torque arm with through bolts.
  2. Tighten the gearbox bracket screws.

    Tightening torque: 47 Nm (35 lbf ft)

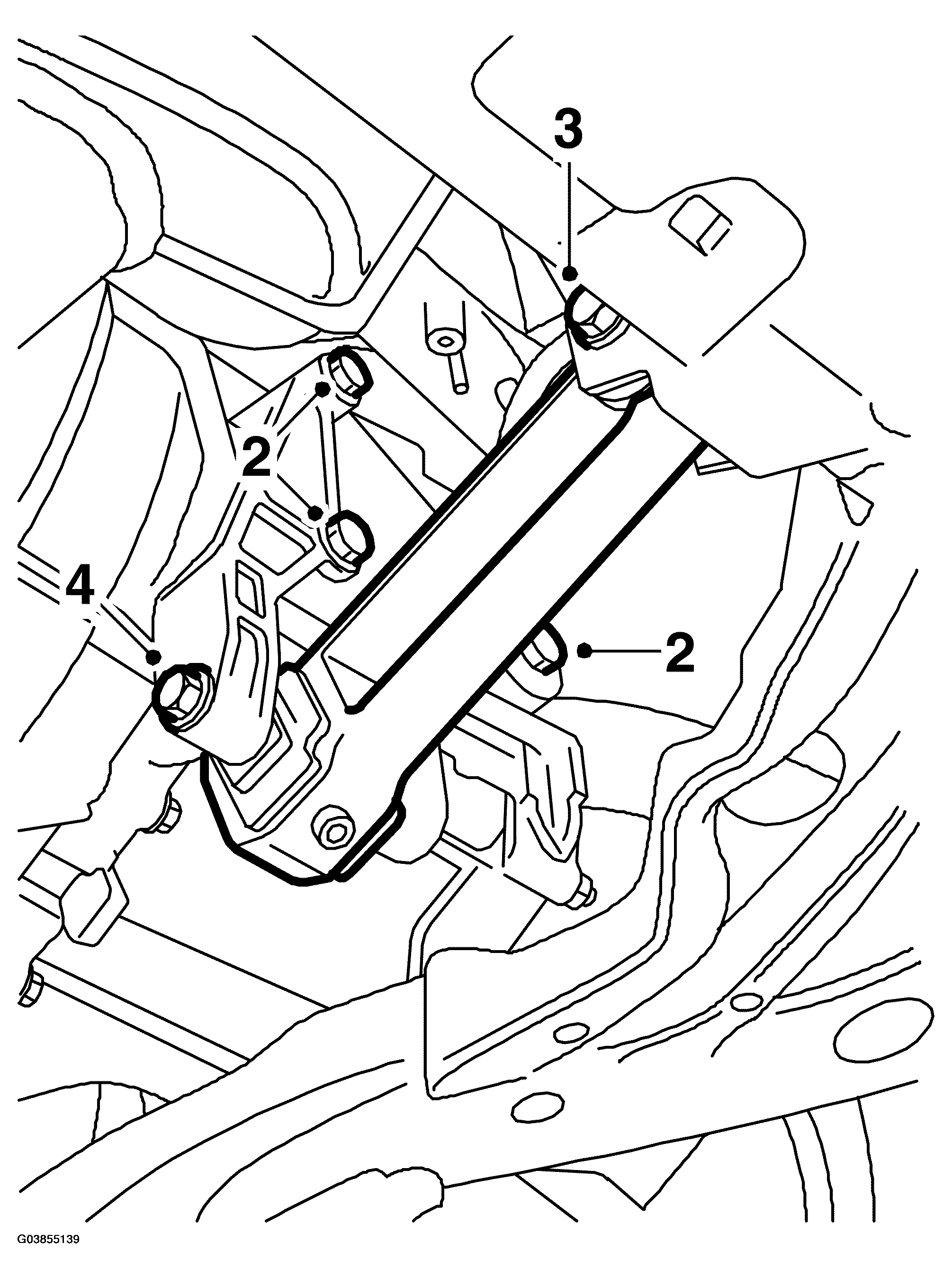

    Fig 1: Illustration For Steps 2-4
    G03855139Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Tighten the through bolt to the subframe.

    Tightening torque: 90 Nm + 90° (66 lbf ft + 90°)

  4. Tighten the bolt holding the torque arm to the bracket.

    Tightening torque: 70 Nm + 90° (52 lbf ft + 90°)
