Dice Control Module (628)

LHD

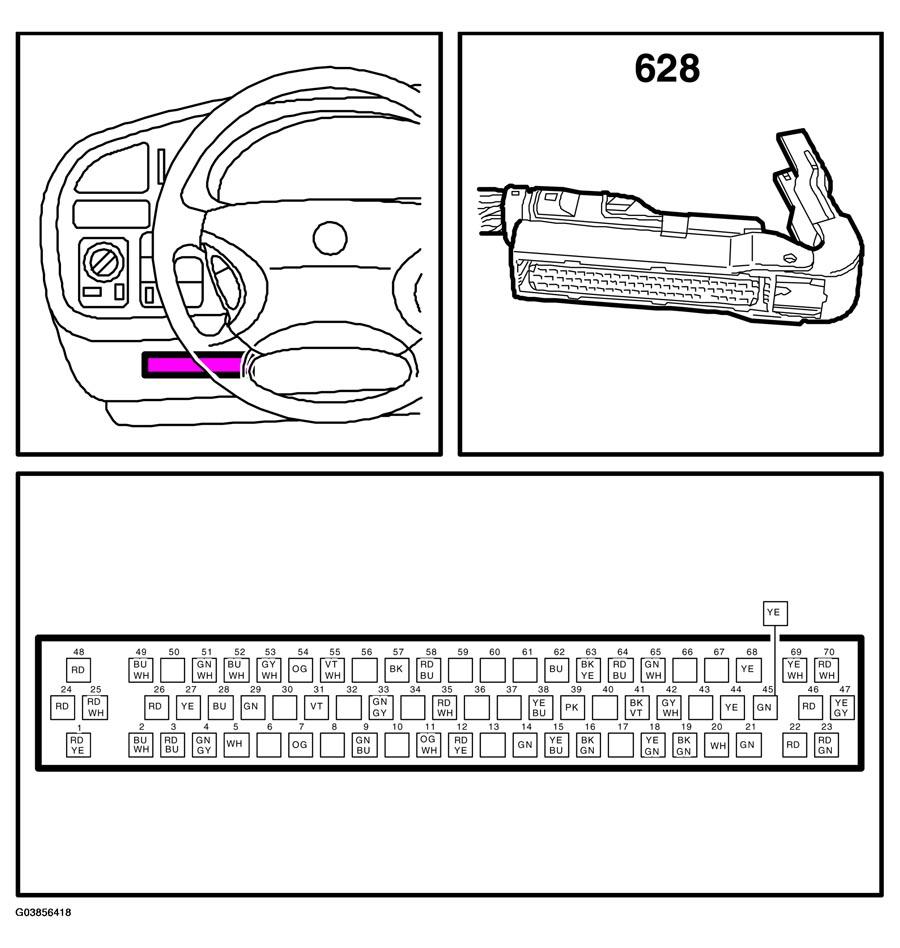

Fig 1: Identifying DICE Control Module Connector Pin Outs (LHD)
G03856418Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

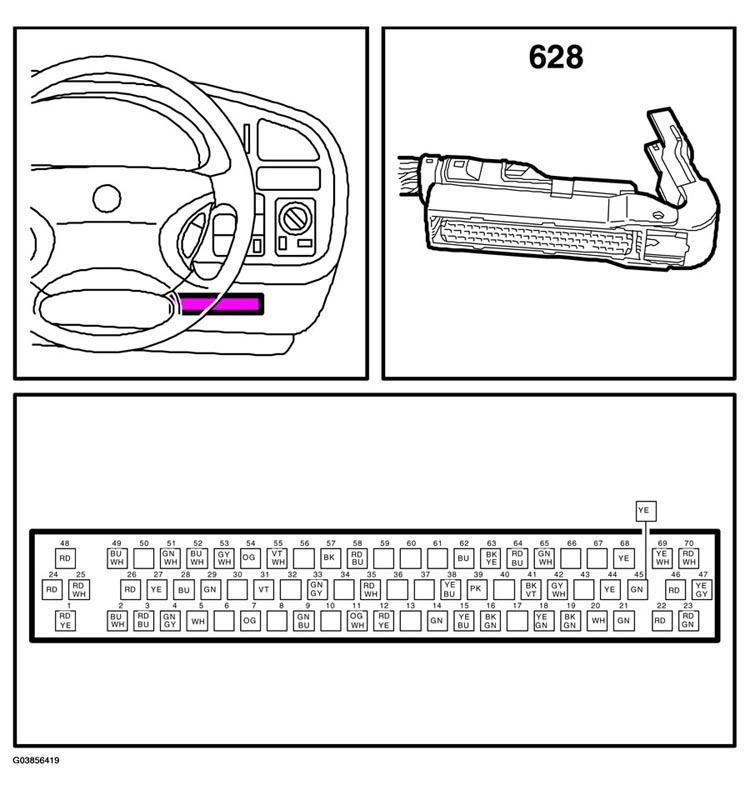

Fig 2: Identifying DICE Control Module Connector Pin Outs (RHD)
G03856419Courtesy of SAAB-SCANIA OF AMERICA, INC.
