Working circuit

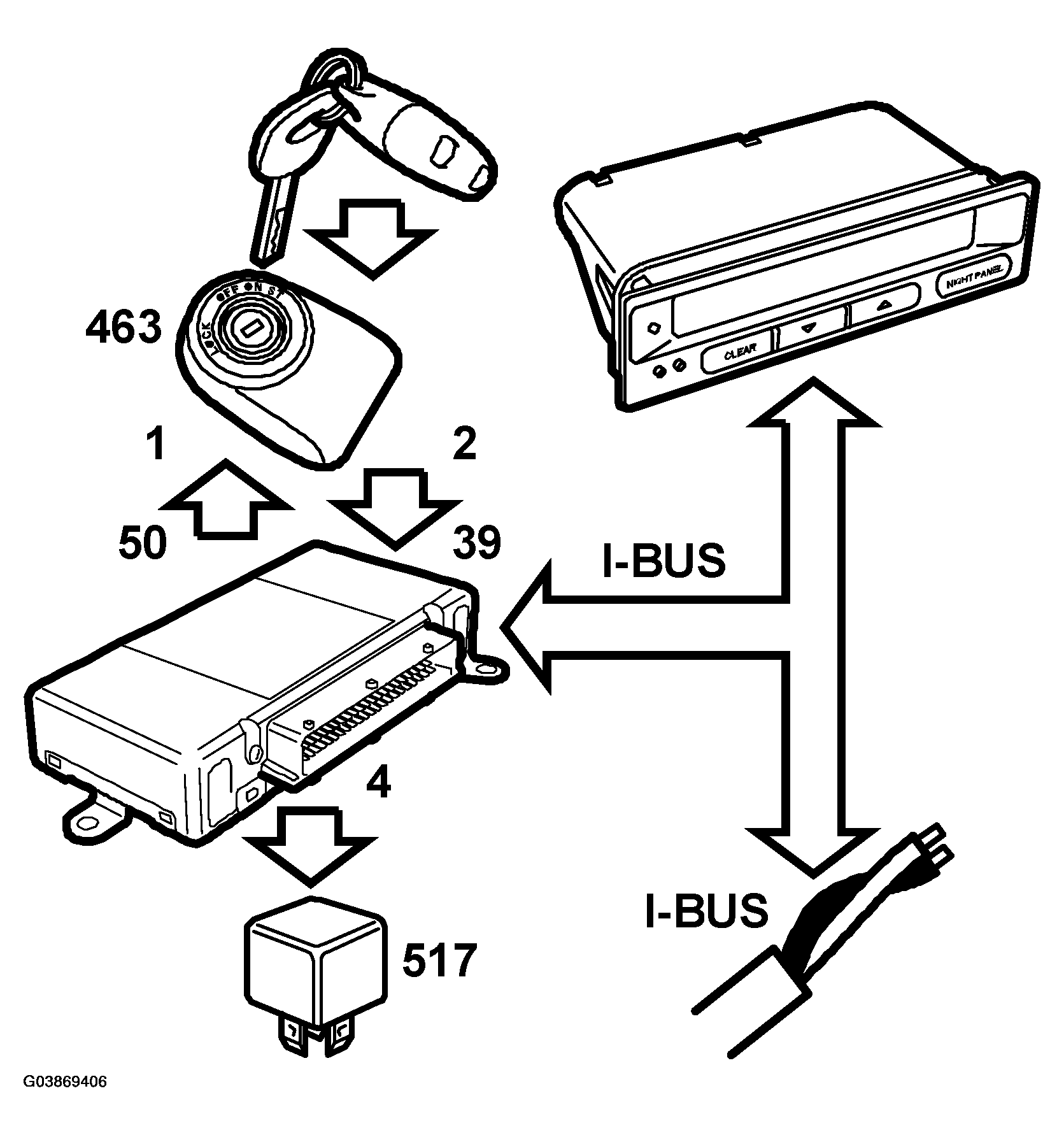

Fig 1: Identifying Starting System Working Circuit
G03869406Courtesy of SAAB-SCANIA OF AMERICA, INC.

The working circuit runs from the battery's positive terminal to terminal 30 on the starter motor.
