Home >> Saab >> 2005 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Component Location >> Connector H80-1

Connector H80-1

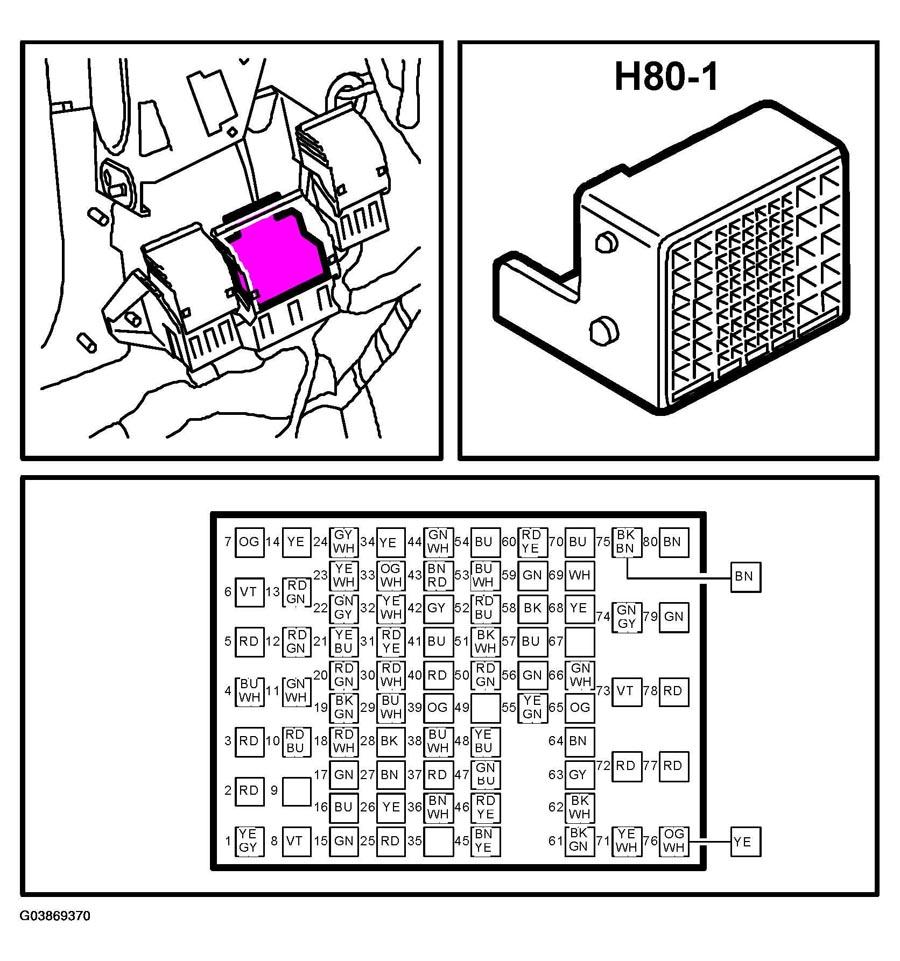

Fig 1: Identifying Connector H80-1 And Location

G03869370

Courtesy of SAAB-SCANIA OF AMERICA, INC.
