To remove

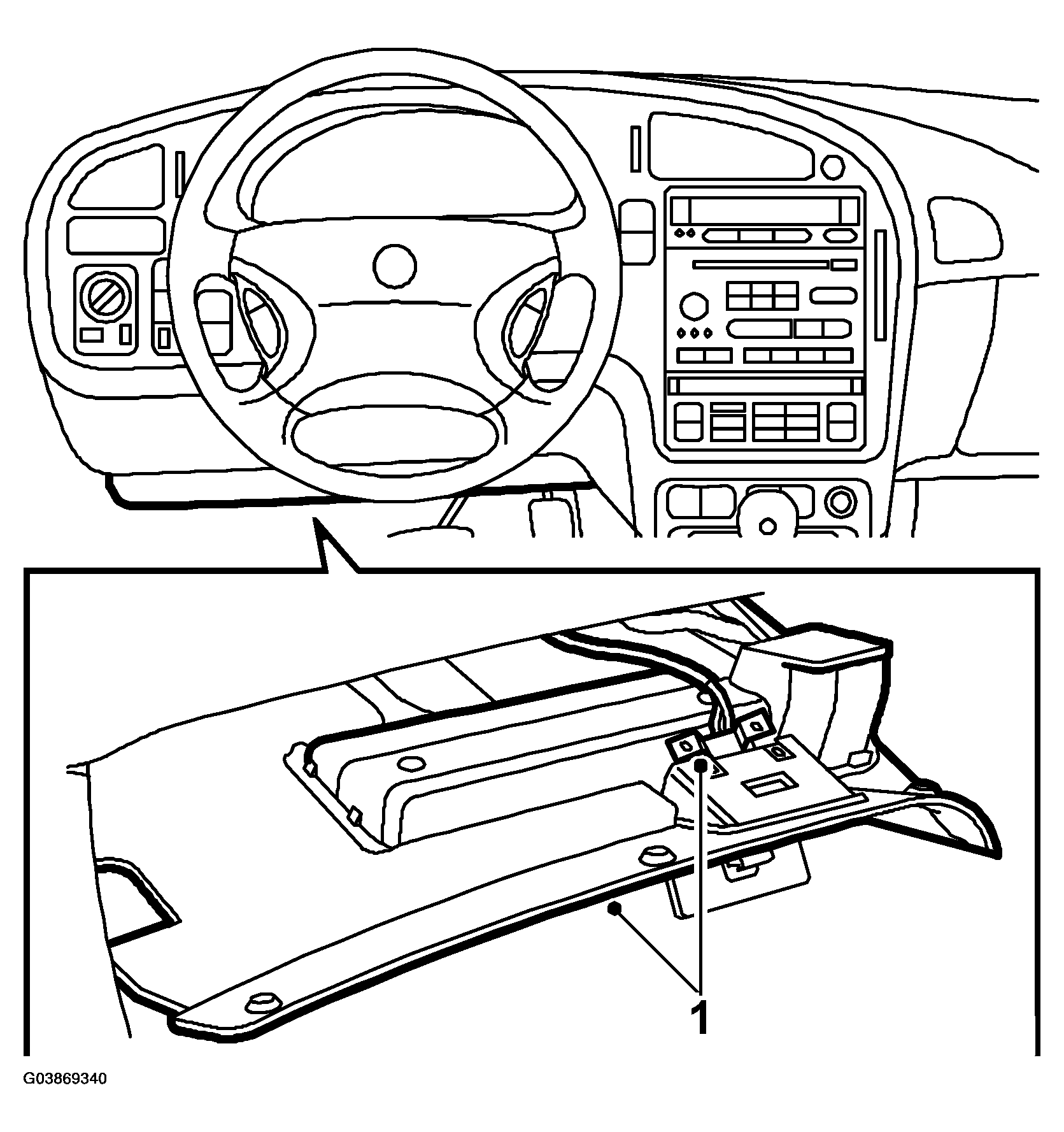

Fig 1: Illustration For Step 1
G03869340Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove lower panel from driver's side.
  2. Unplug the connector from the contact.

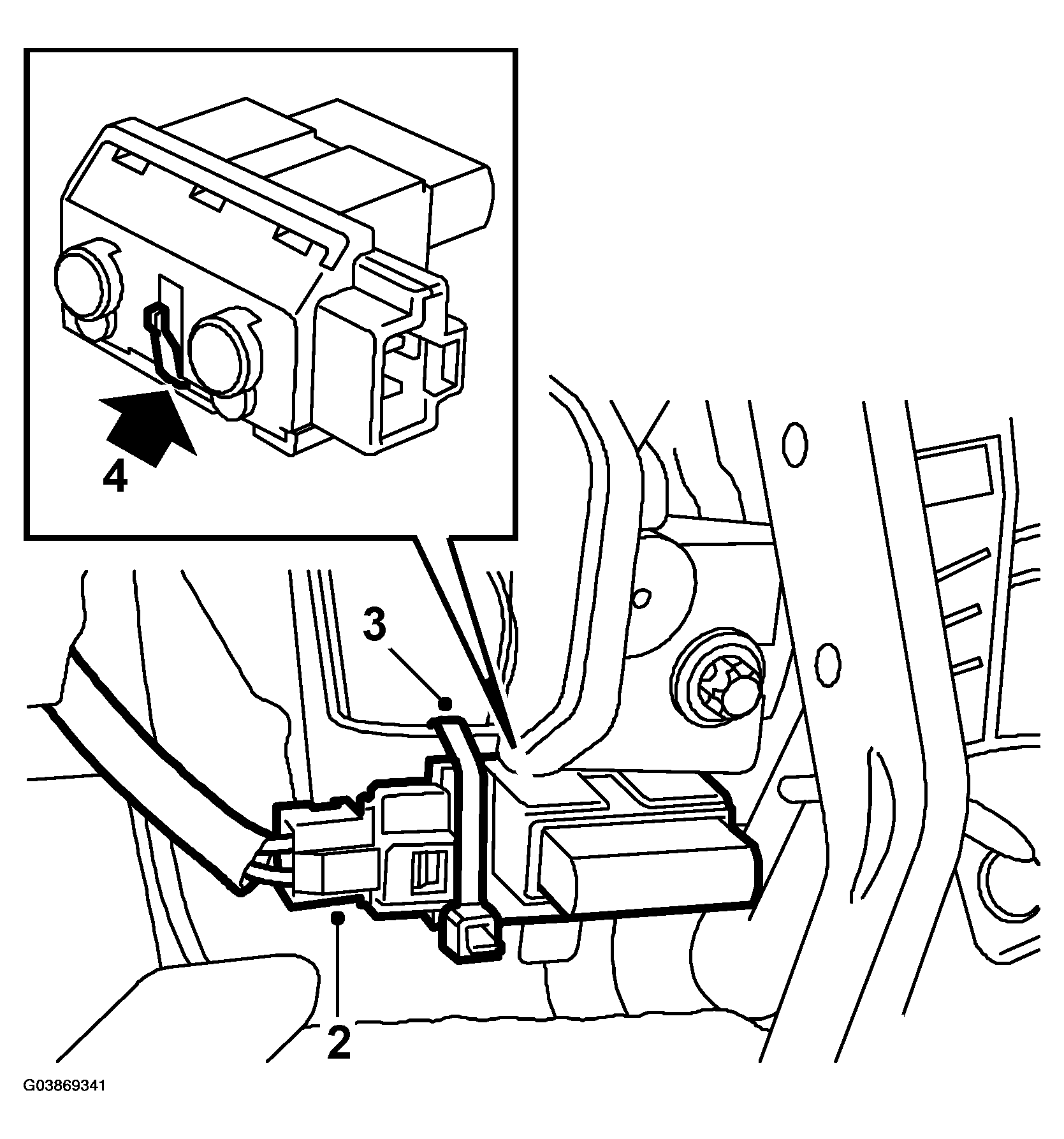

    Fig 2: Illustration For Step 2-4
    G03869341Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Cut the cable tie.
  4. Press in the catch and pull down the contact.
