System Overview, Interior Lighting 5D

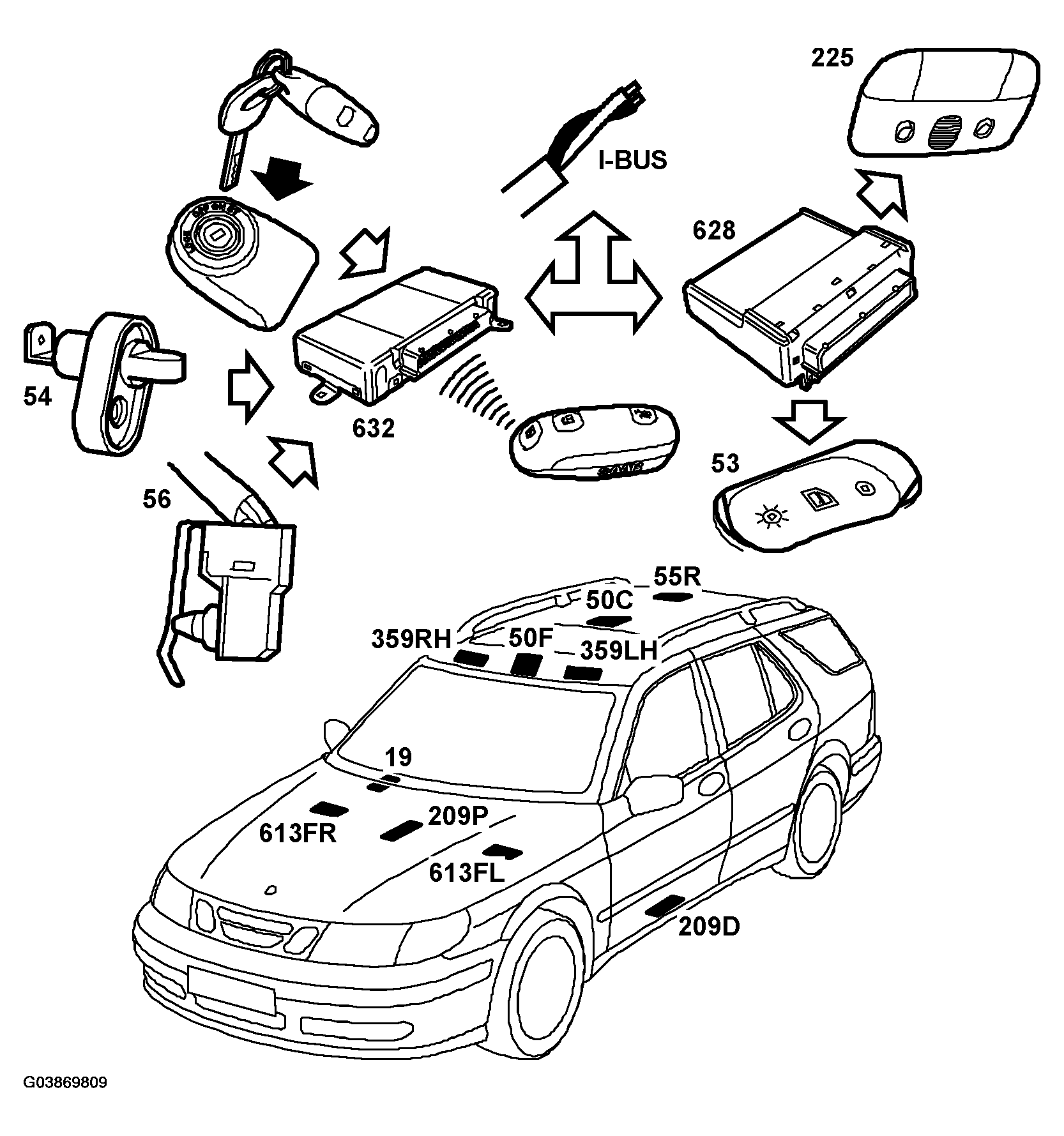

Fig 1: Identifying Interior Lighting 5D System Overview

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Door switch (54)
• Switch, luggage compartment lighting (56)
• Control module, TWICE (632)
• Control module DICE (628)
• Switch, interior lighting (53)
• SID control module (541)
• Glove box light (19)
• Luggage compartment lighting (55R)
• Roof lamp (50C, 50F)
• Vanity mirror lamp (359)
• Courtesy lights (209)
• Reading light (225)
• Floor lighting (613)
