High-Level Brake Light Bulb (30RC)

4D

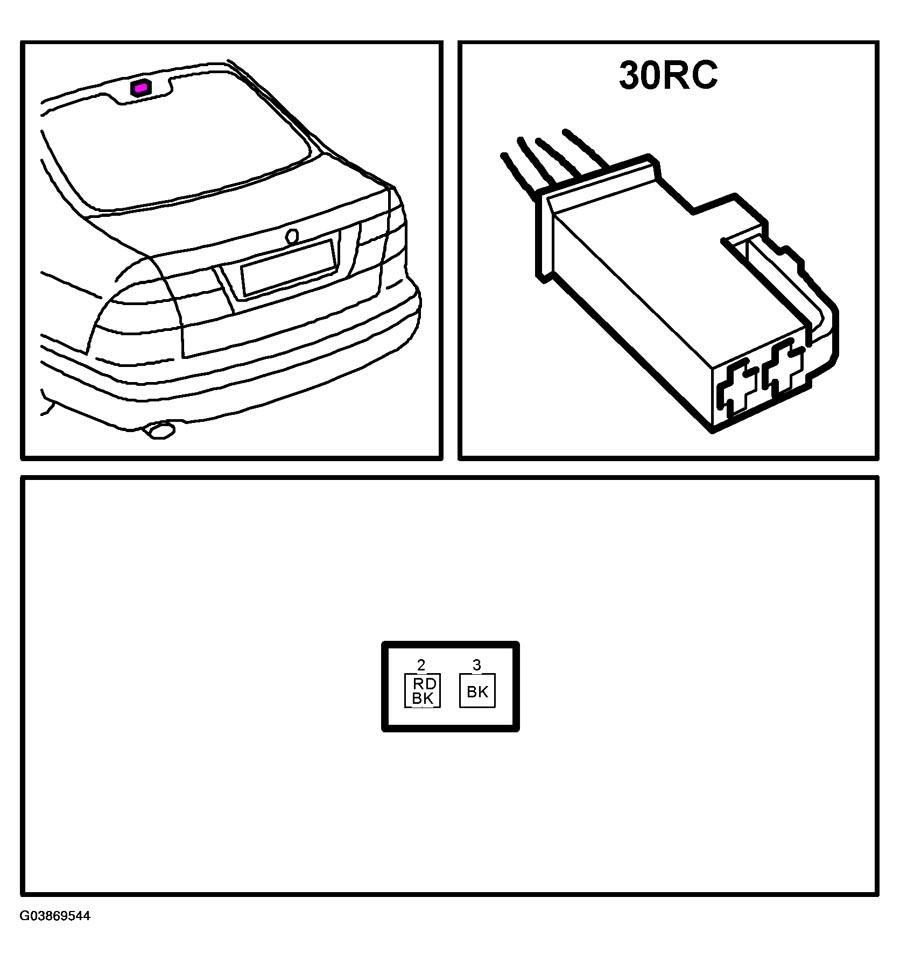

Fig 1: Identifying High-Level Brake Light Bulb (30RC) Connector And Location - 4D
G03869544Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

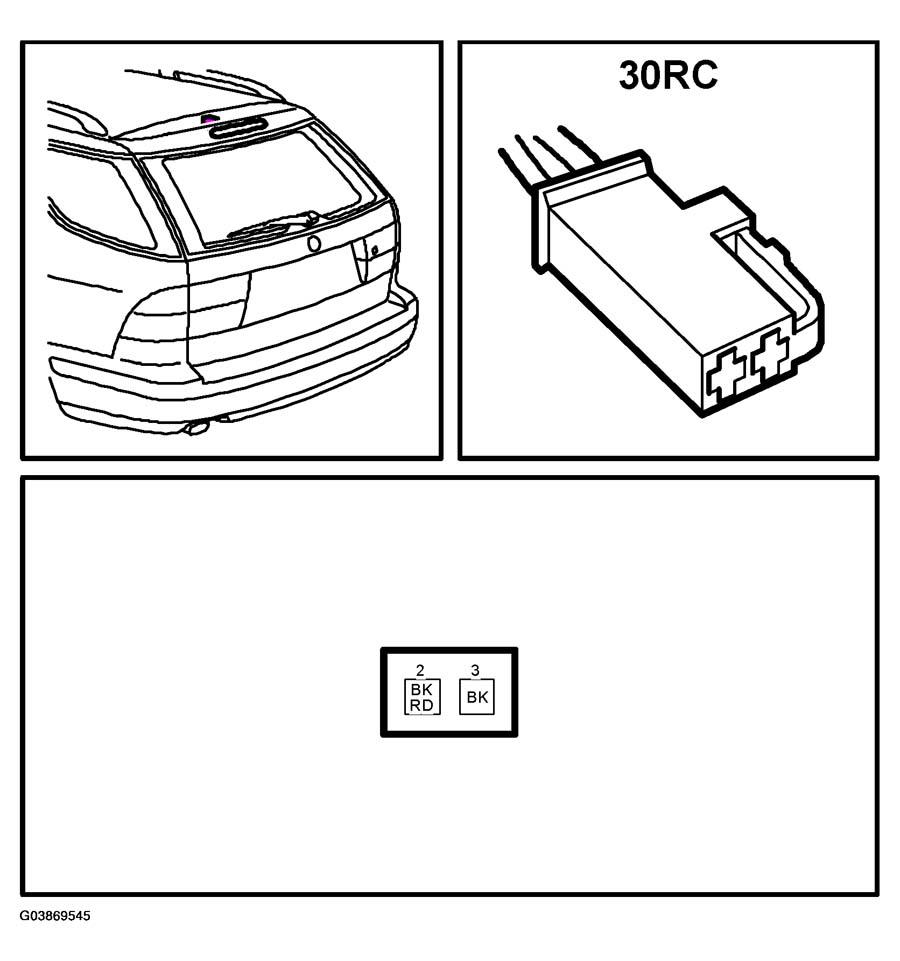

Fig 2: Identifying High-Level Brake Light Bulb (30RC) Connector And Location - 5D
G03869545Courtesy of SAAB-SCANIA OF AMERICA, INC.
