Grounding Point G40: Notes

Fig 1: Identifying Grounding Point G40 And Location
G03869721Courtesy of SAAB-SCANIA OF AMERICA, INC.

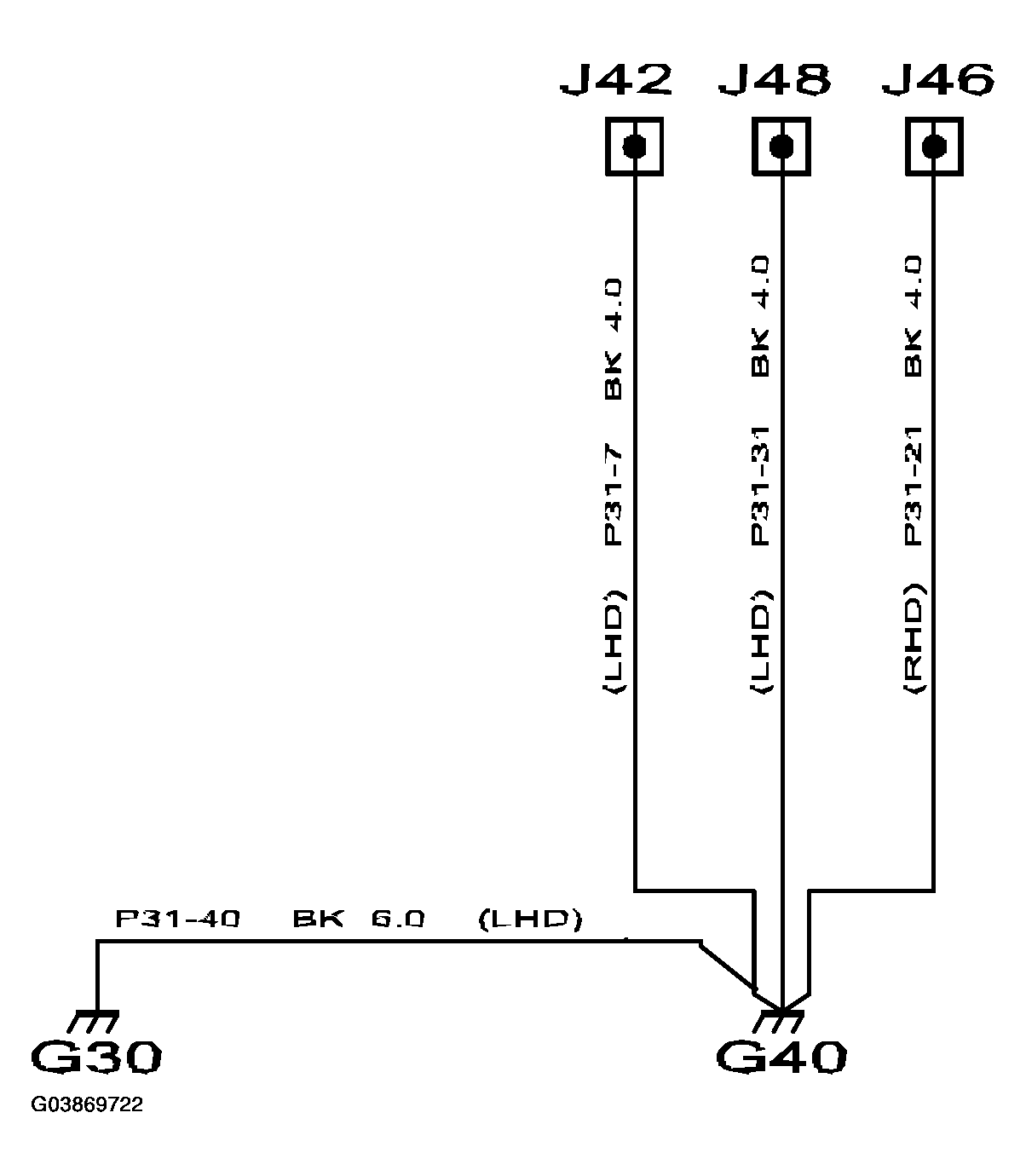

Fig 2: Identifying Crimp J42 Wiring Diagram - Instrument Harness
G03869722Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In passenger compartment on left-hand side of knee member.
