Spotlight Bulb: Changing

  1. Remove the cover glass.

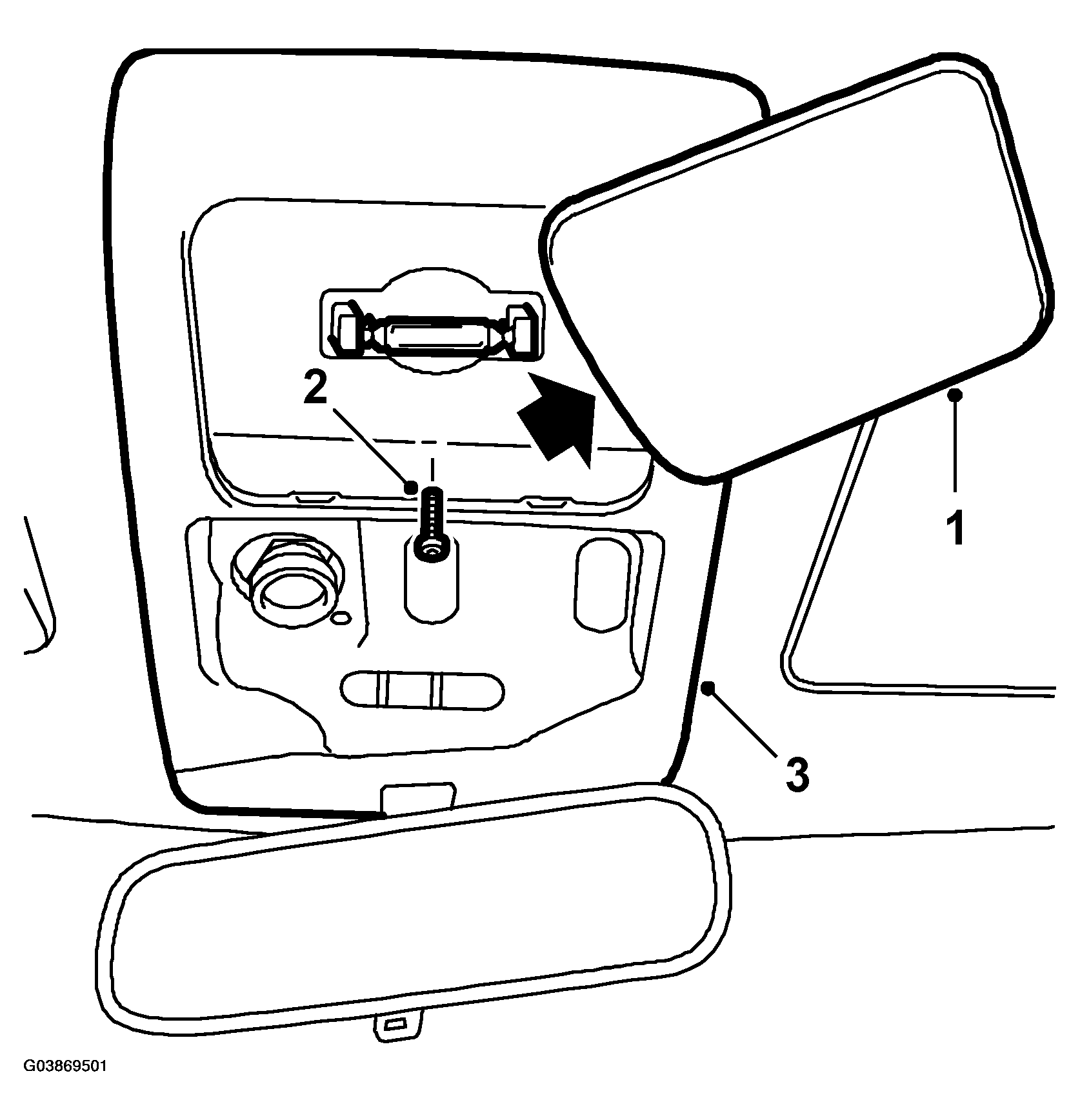

    Fig 1: Illustration For Step 1-3
    G03869501Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the cover retaining screw.
  3. Remove the temperature sensor and microphone from the cover (certain markets).
  4. Remove the spotlight reflector by turning it anti-clockwise.

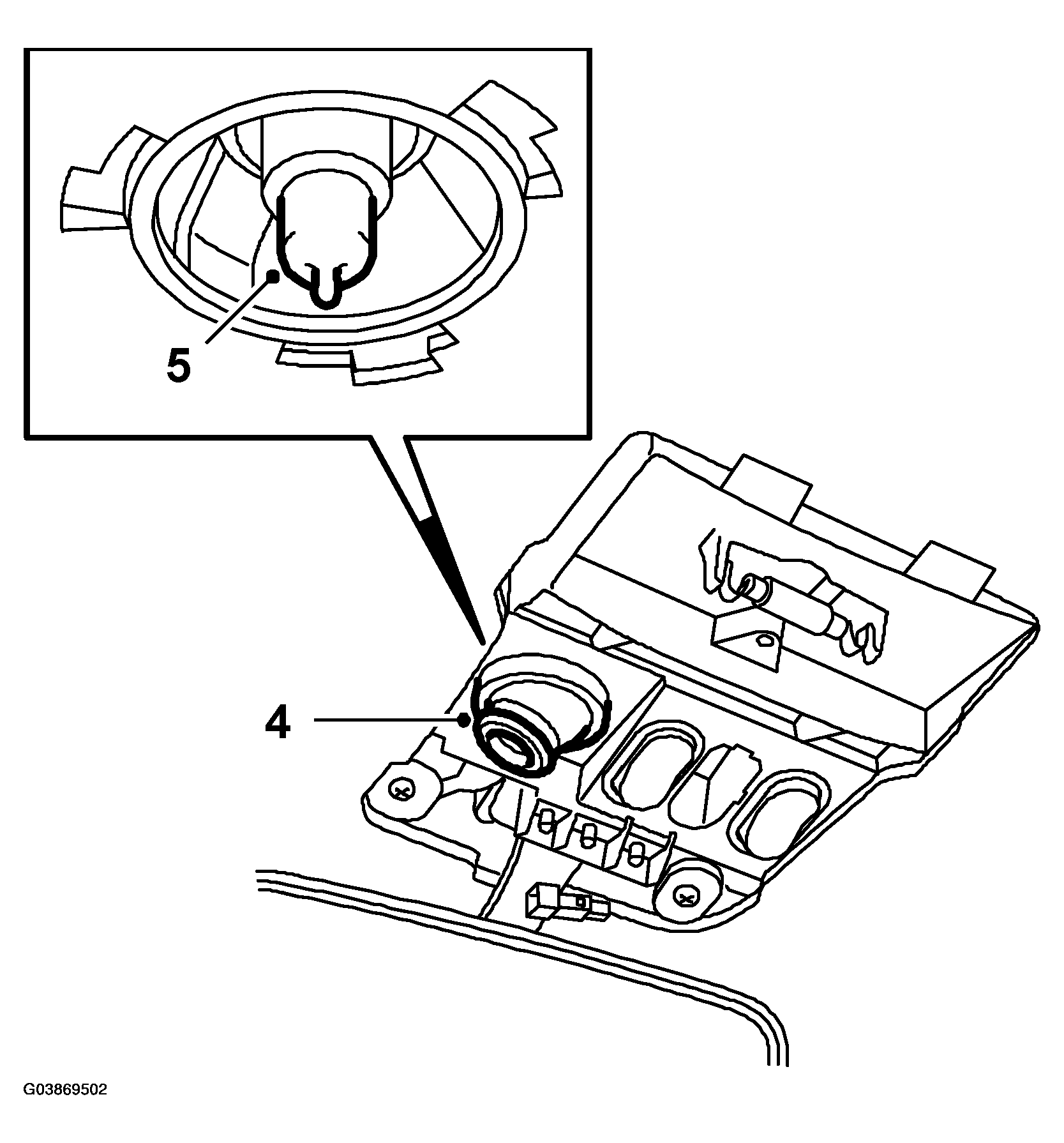

    Fig 2: Illustration For Step 4-5
    G03869502Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Change the bulb.
  6. Fit the spotlight reflector by turning it clockwise.
  7. Fit the temperature sensor and microphone to the cover (certain markets).
  8. Fit the cover and retaining screw.
  9. Fit the cover glass.
