To remove

  1. Raise the car.
  2. Unplug the sensor.

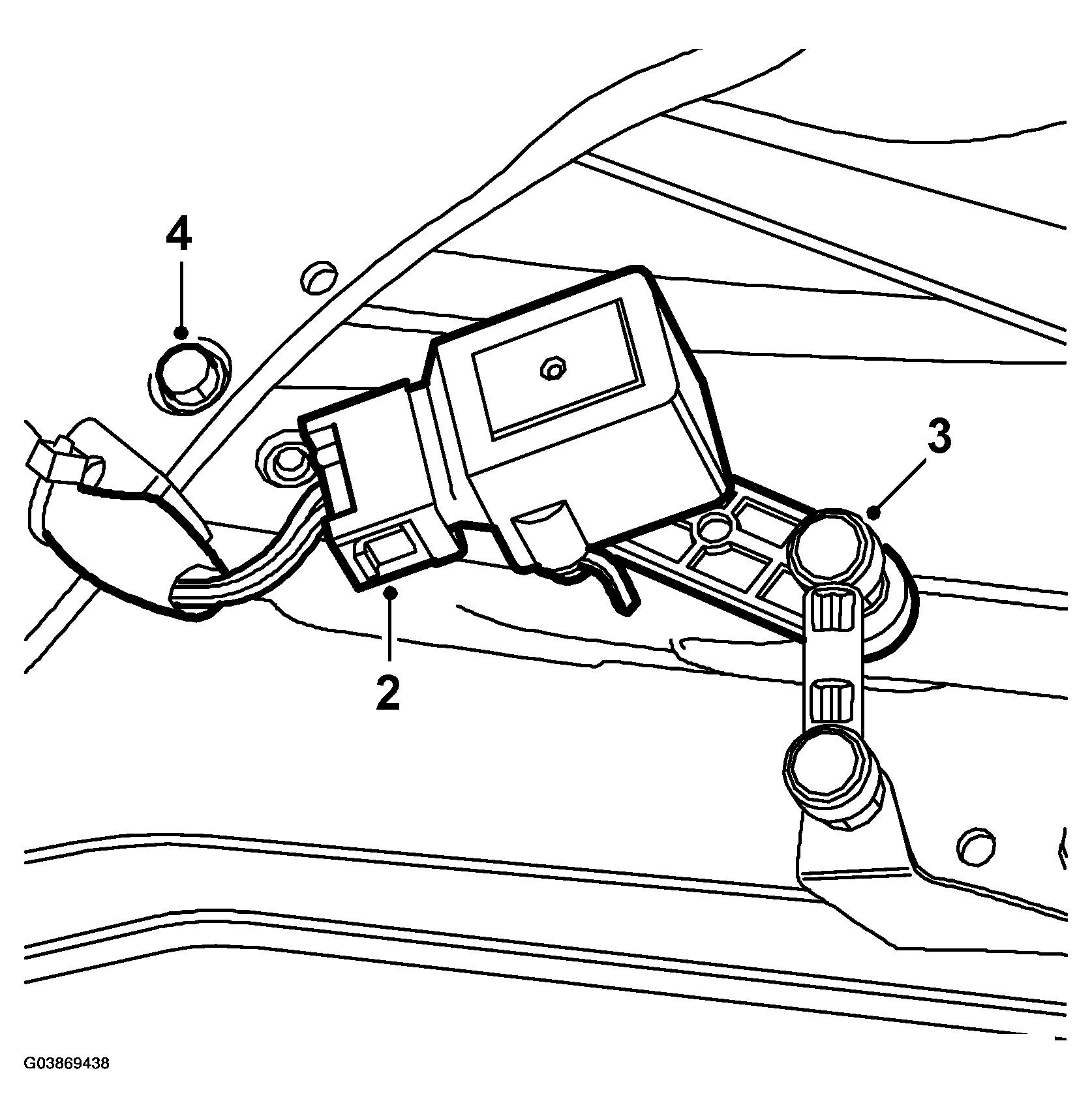

    Fig 1: Illustration For Step 2-4
    G03869438Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Loosen the upper link arm ball joint.
  4. Unscrew the level sensor and remove it with the bracket.
  5. Remove the sensor from the bracket by undoing the screws.

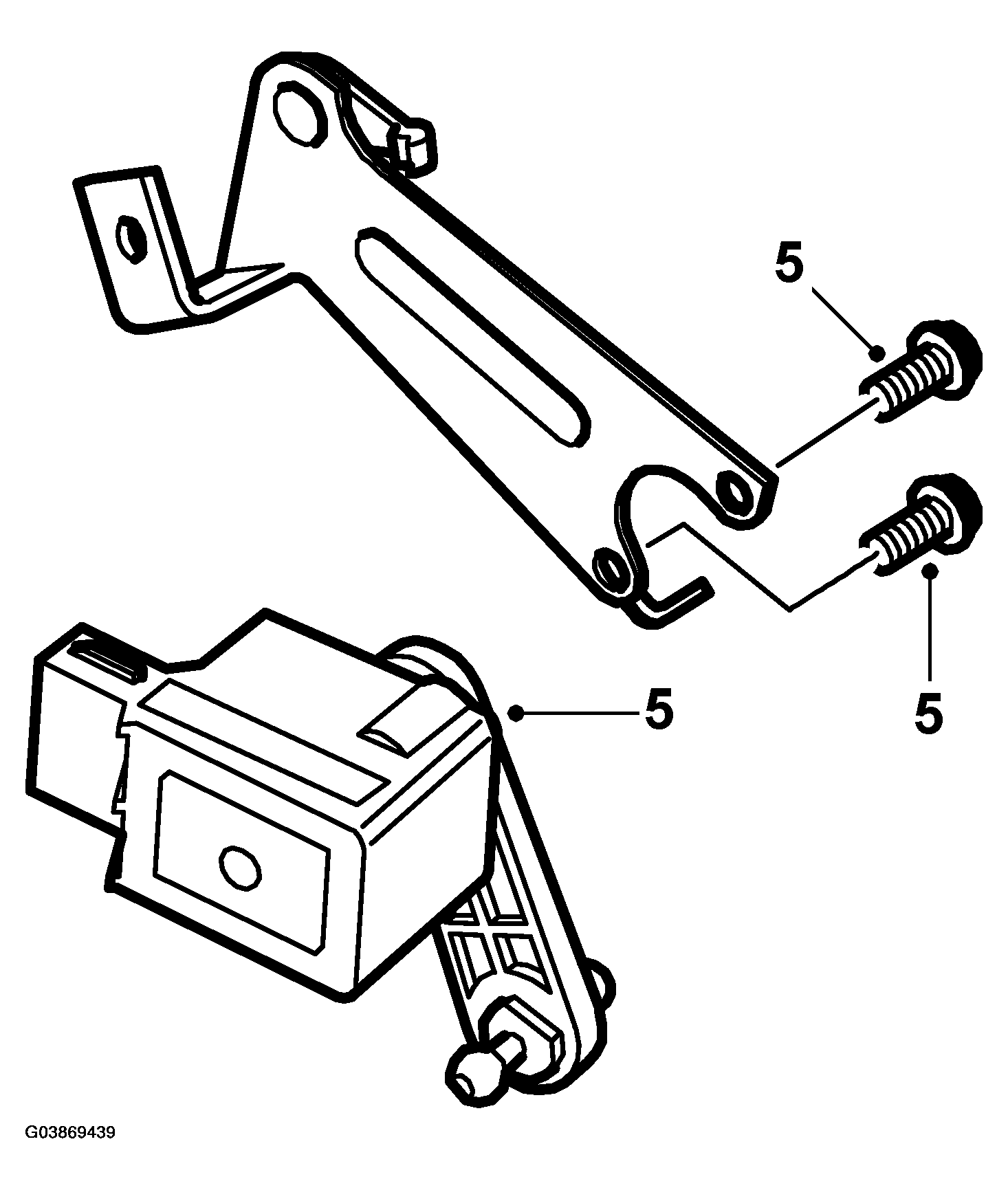

    Fig 2: Illustration For Step 5
    G03869439Courtesy of SAAB-SCANIA OF AMERICA, INC.
