To fit

  1. Fit the sensor to the bracket by screwing in the screws.

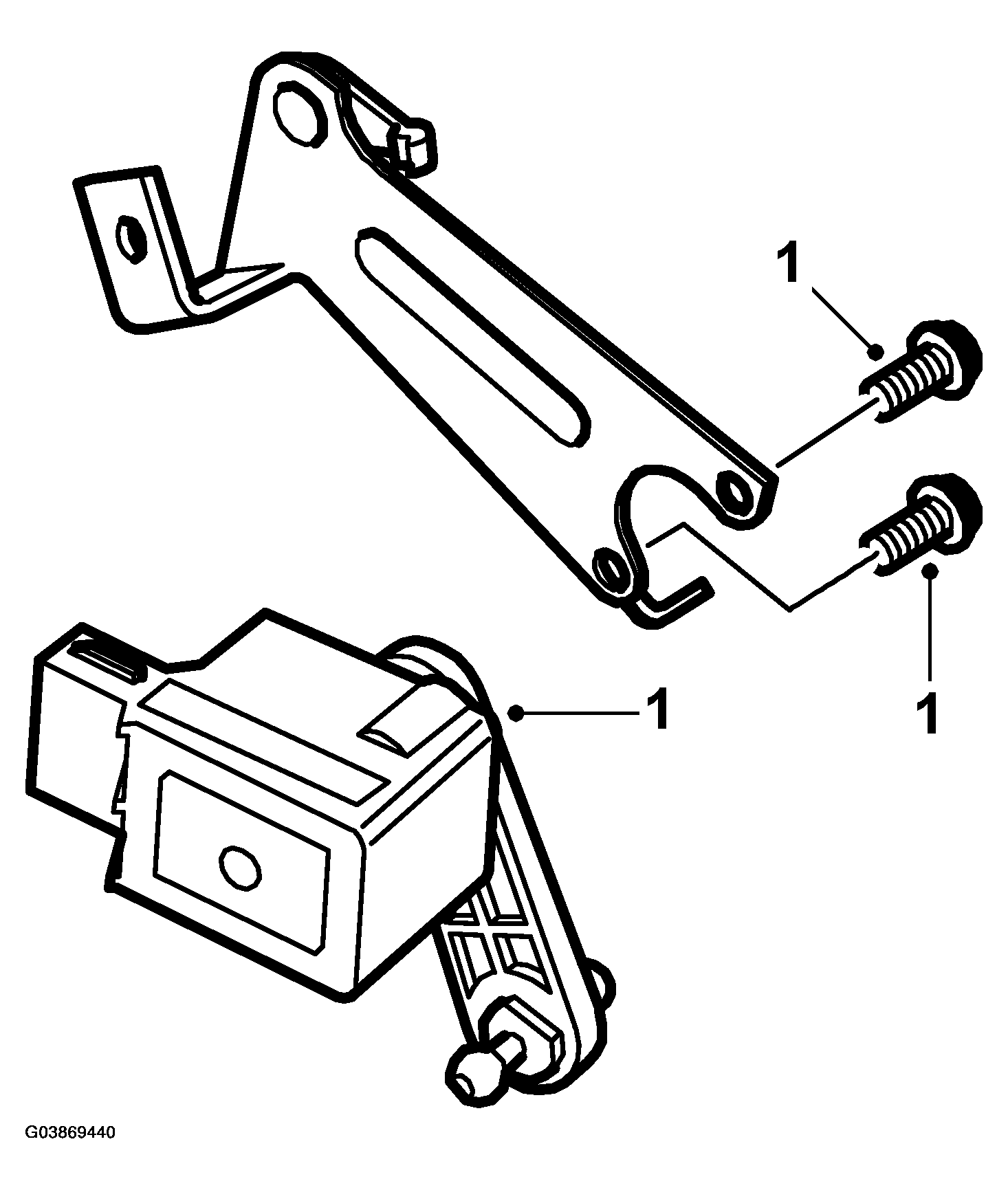

    Fig 1: Illustration For Step 1
    G03869440Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Bolt the bracket and level sensor into place.

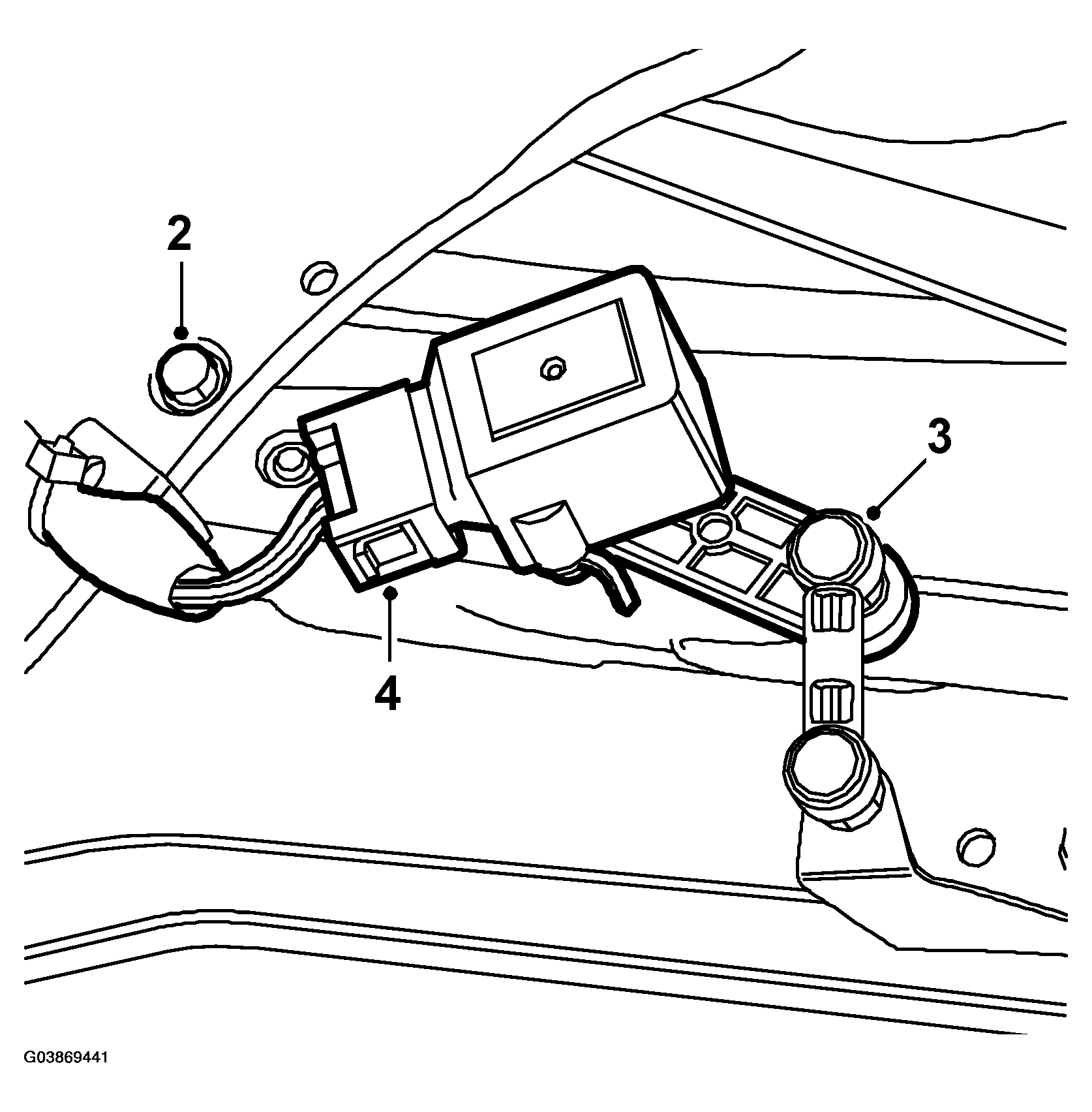

    Fig 2: Illustration For Step 2-4
    G03869441Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the link arm ball joint.
  4. Plug in the connector.
  5. Calibrate both AHL control modules, see XENON LIGHTING SYSTEM, CALIBRATION  .
