To remove

  1. Remove the handle.

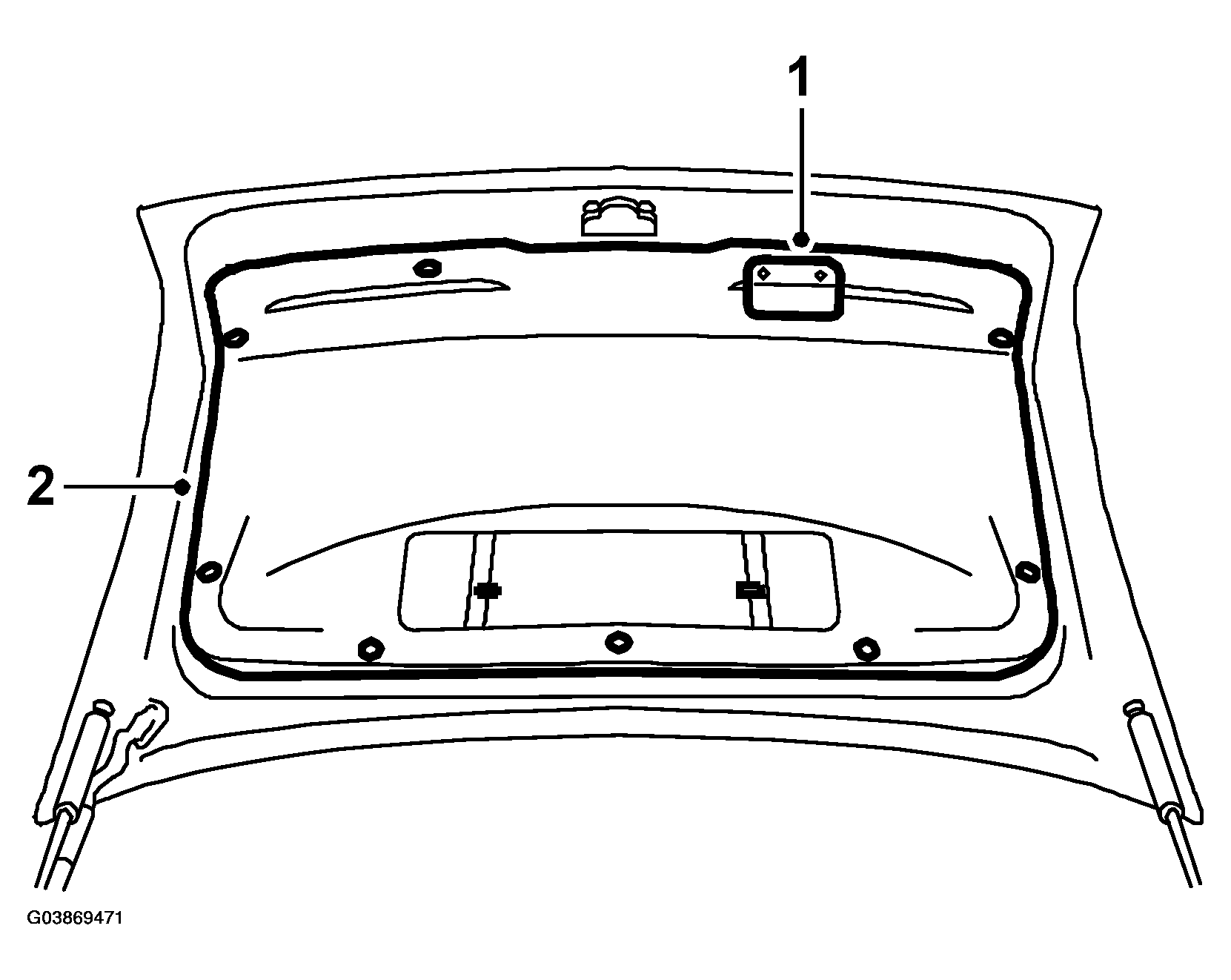

    Fig 1: Illustration For Step 1-2
    G03869471Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the trim.
  3. Remove the number plate.
  4. Remove the decor panel.

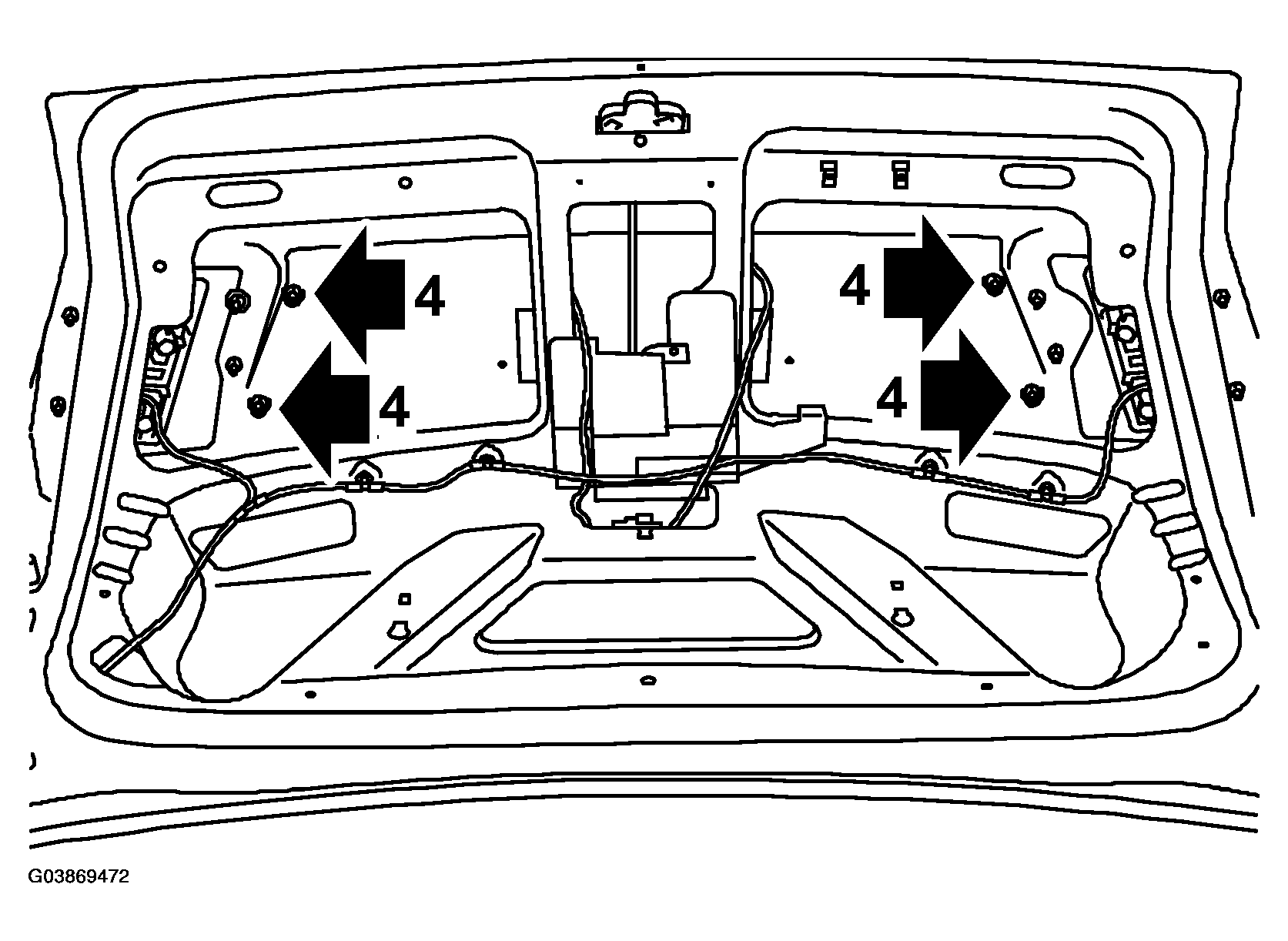

    Fig 2: Illustration For Step 4
    G03869472Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the lamp holder.

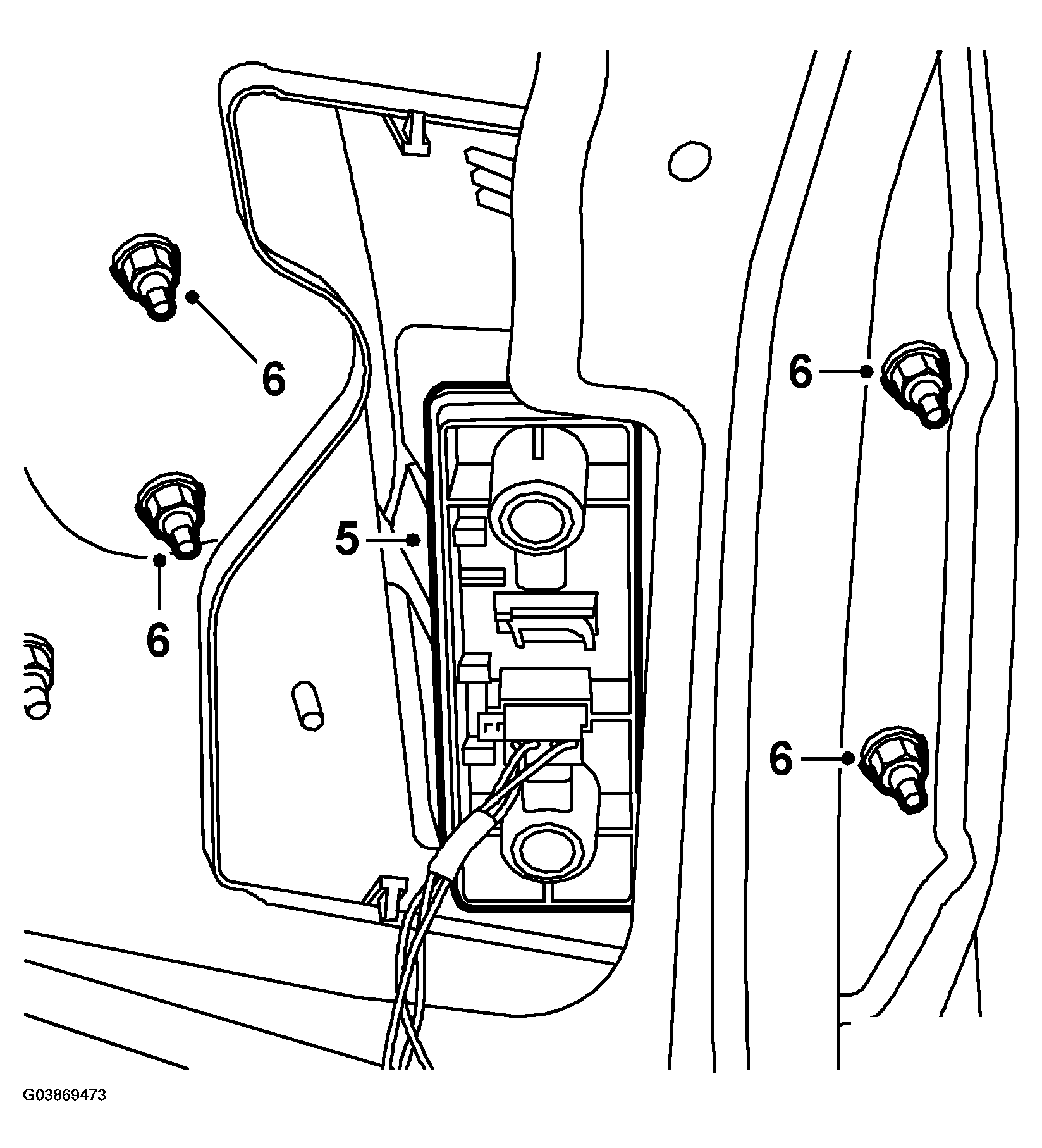

    Fig 3: Illustration For Step 5-6
    G03869473Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the nuts securing the light cluster.
  7. Remove the light cluster by depressing the catches.
