To fit

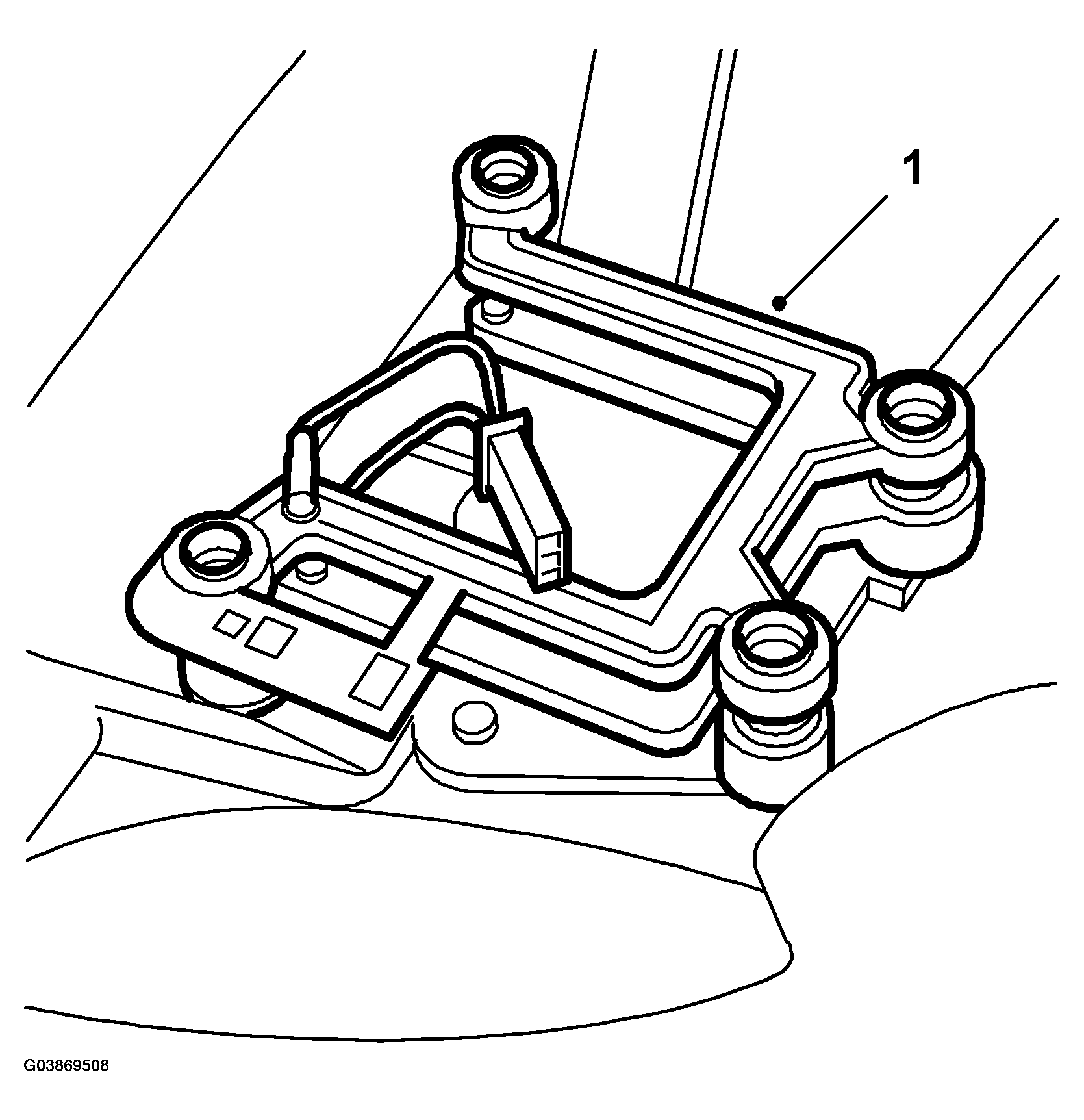

Fig 1: Illustration For Step 1
G03869508Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the old springs to the new horn button.
  2. Place the horn plate on the horn button.

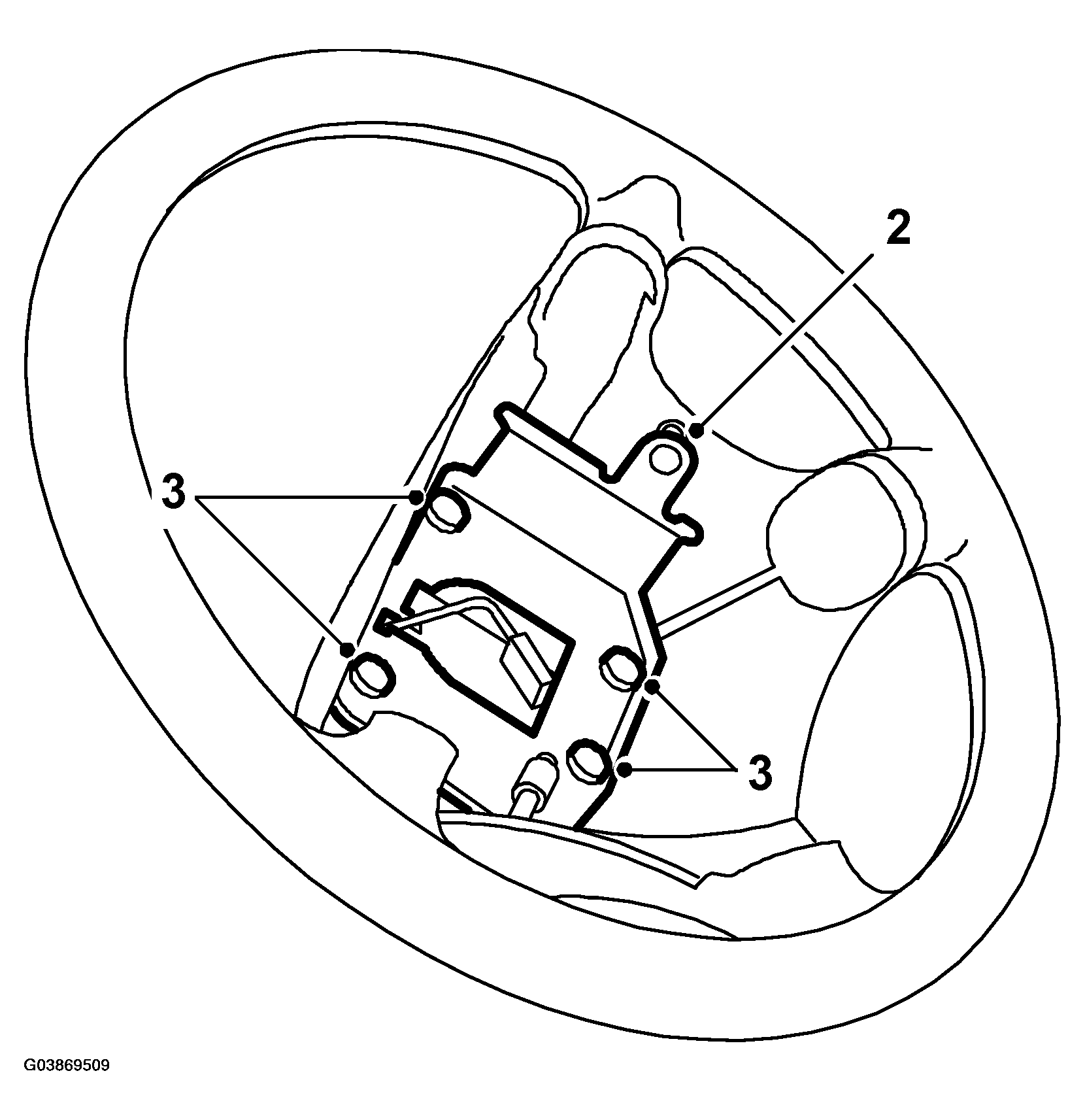

    Fig 2: Illustration For Step 2-3
    G03869509Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the horn plate.

    Tightening torque 8+/-1 Nm (5.86+/-0.73 lbf ft)

  4. Fit the airbag, see .
