High-Level Brake Lights, 4D: Refitting

  1. Attach the connector housing to the lamp unit.

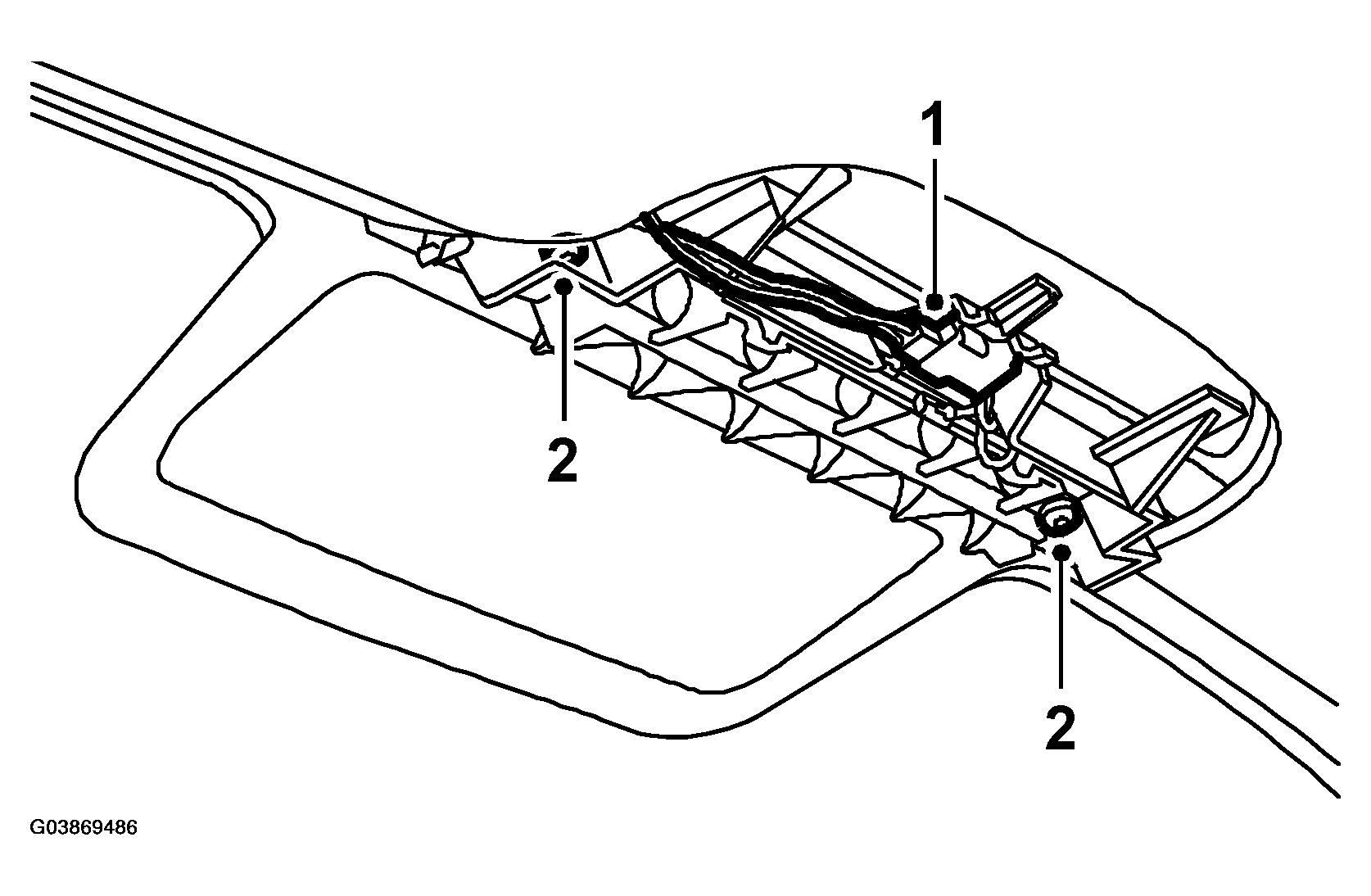

    Fig 1: Illustration For Step 1-2
    G03869486Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bracket (snap fastening) and its retaining screws.
  3. Fit the cover into the headlining.

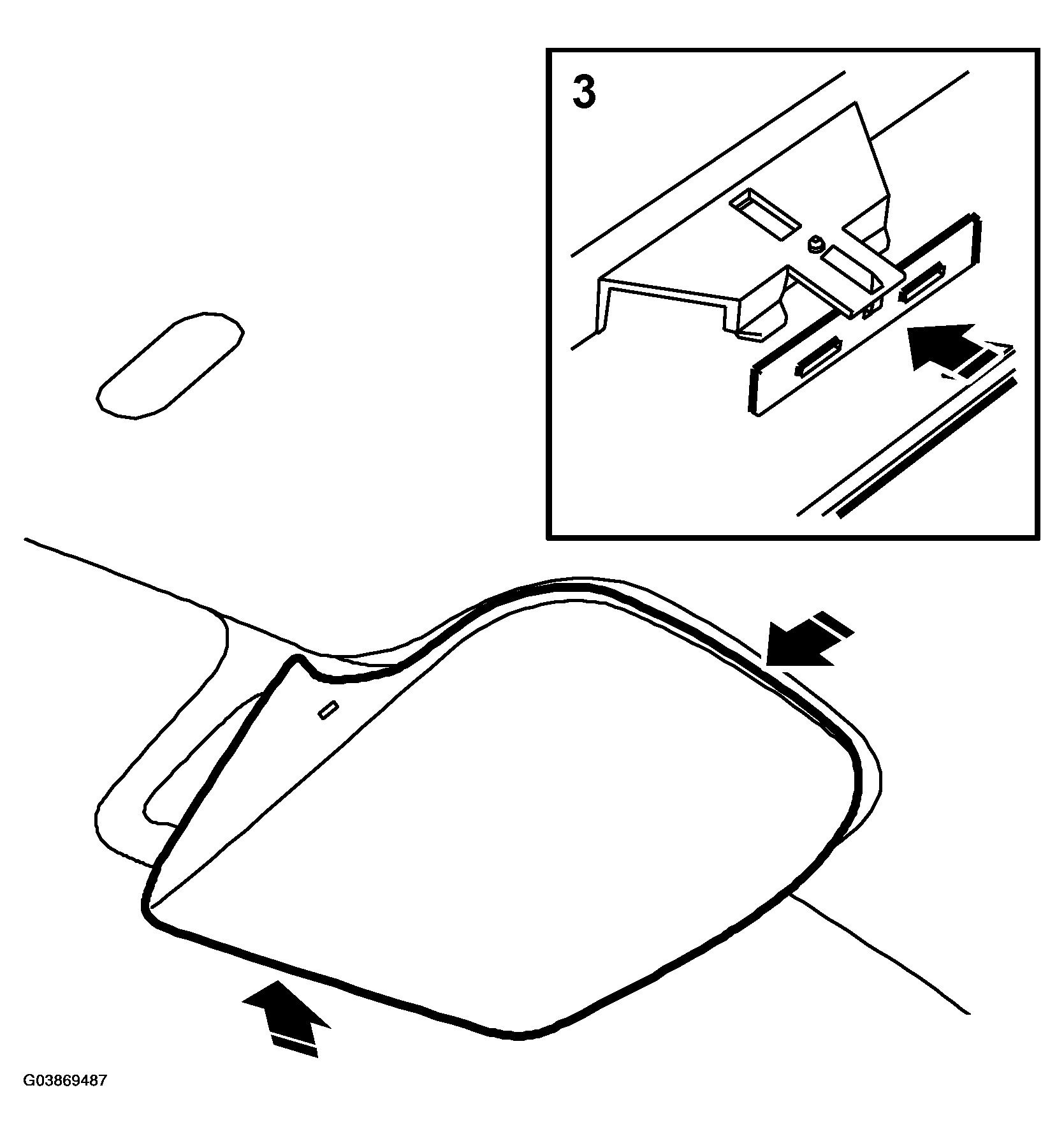

    Fig 2: Illustration For Step 3
    G03869487Courtesy of SAAB-SCANIA OF AMERICA, INC.
